NEC VERSA VXi - Page 72

3-12 Disassembly and Reassembly
5.

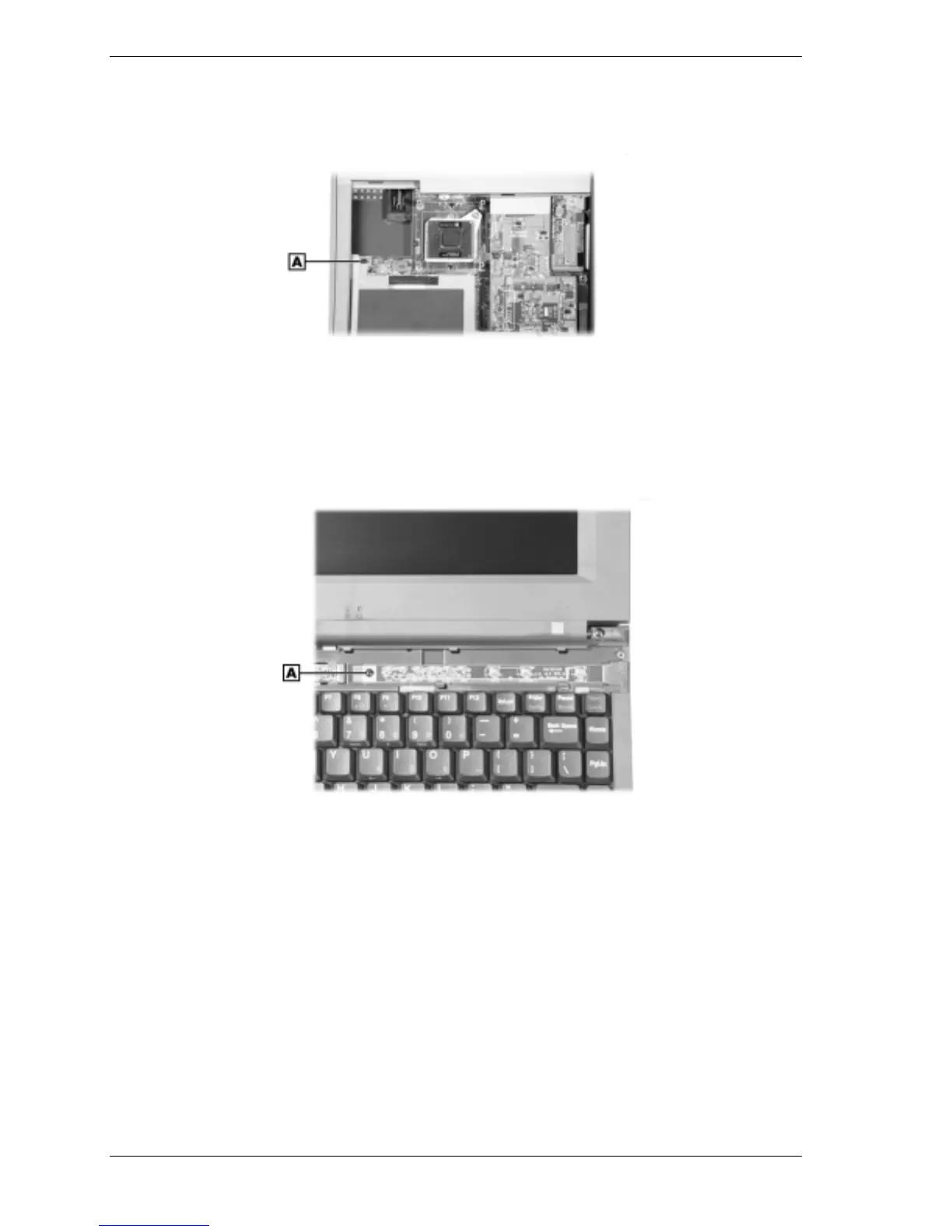

Locate and remove the screw on the top that secures the top cover.
Removing the top screw
A
– Screw
6.
Locate and remove the screw securing the LED board. Carefully remove the board from the
system by lifting it up and out of its connector.
Removing the LED board
A
– Screw
