© by NECTA VENDING SOLUTIONS SpA 07-2002 148 03
DOOR SWITCH
When opening the door a special switch disconnects the
power from the machine electrical system to allow the
operations described below, regarding loading and routine
cleaning, in full safety.
All operations requiring the machine to be energized
should be carried out by qualified personnel ONLY,
informed about the specific risks of such situation.
The service power socket, permanently live, is sized for
small tools; care should be taken not to exceed the rating
indicated on the specific plate.
To energize the system with the open door, simply insert
the special key into the slot (see Figure 1).
The door can be closed only after removing the key.
Do not leave the vending machine unattended with the
door open.
MAINTENANCE AND DISINFECTION
According to current legislated health and safety rules and
regulations, the operator of an automatic vending machine
is responsible for the hygiene and the maintenance of the
foodstuff circuits, to prevent formation of bacteria.
At installation the hydraulic circuits and the parts in
contact with foodstuff should be fully sanitised to
remove any bacteria which might have formed during
storage.
It is advisable that specific sanitising agents (such as
chlorine-based detergents or similar) are used for clean-
ing also the surfaces which are not directly in contact with
foodstuff.
Some parts of the machine can be damaged by strong
detergents.
The manufacturer declines all responsibility for any dam-
age to persons resulting from failure to comply with current
regulations.
Before starting any maintenance operations requiring
parts of the unit to be removed, the machine must
always be disconnected from the power supply.
CONTROLS AND INFORMATION
All user controls and information are conveniently located
on the external side of the door (see Figure 3).
The labels with the selection menu and instructions, sup-
plied with the machine, must be inserted at the time of
installation.
The programming button, to access the machine functions,
and the mixer cleaning button are located on the coin
mechanism compartment cover.
Chapter 1
LOADING AND CLEANING

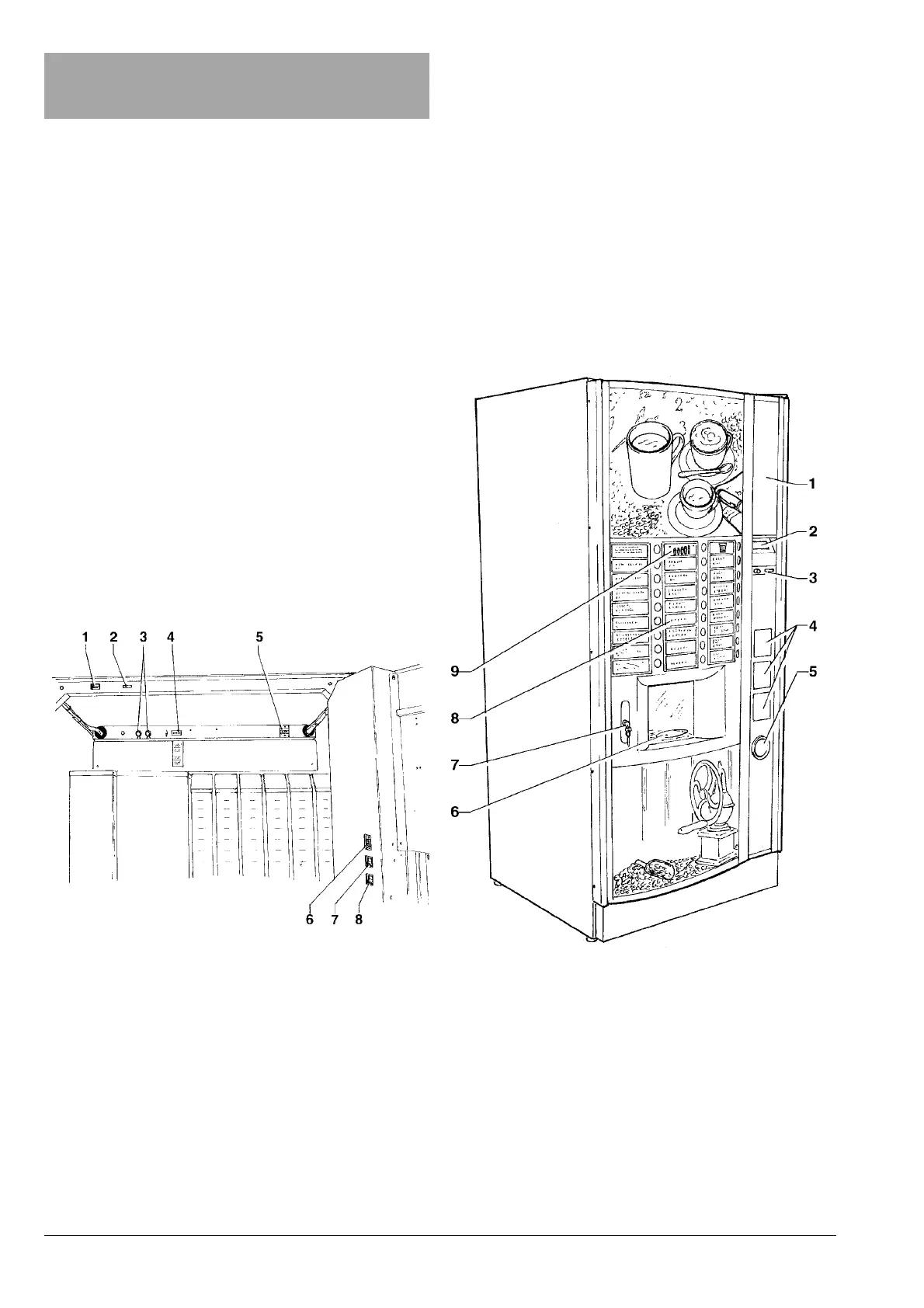

Fig. 2
1 - Door switch
2 - internal lamp switch (optional)
3 - Network fuses
4 - Permanently live socket (230v~ 2 A. Max)
5 - Mechanical counter
6 - RS232 serial port
7 - Mixer cleaning button
8 - Programming button
Fig. 3
1 - Modular elements for payment systems
2 - Alphameric display (4x20)
3 - Coin slot-return.
4 - Operating instructions labels
5 - Coin return flap
6 - Dispensing compartment
7 - Lock
8 - Selection menu
9 -Coffee dose selection
