29
© by NECTA VENDING SOLUTIONS SpA 07-2002 148 03

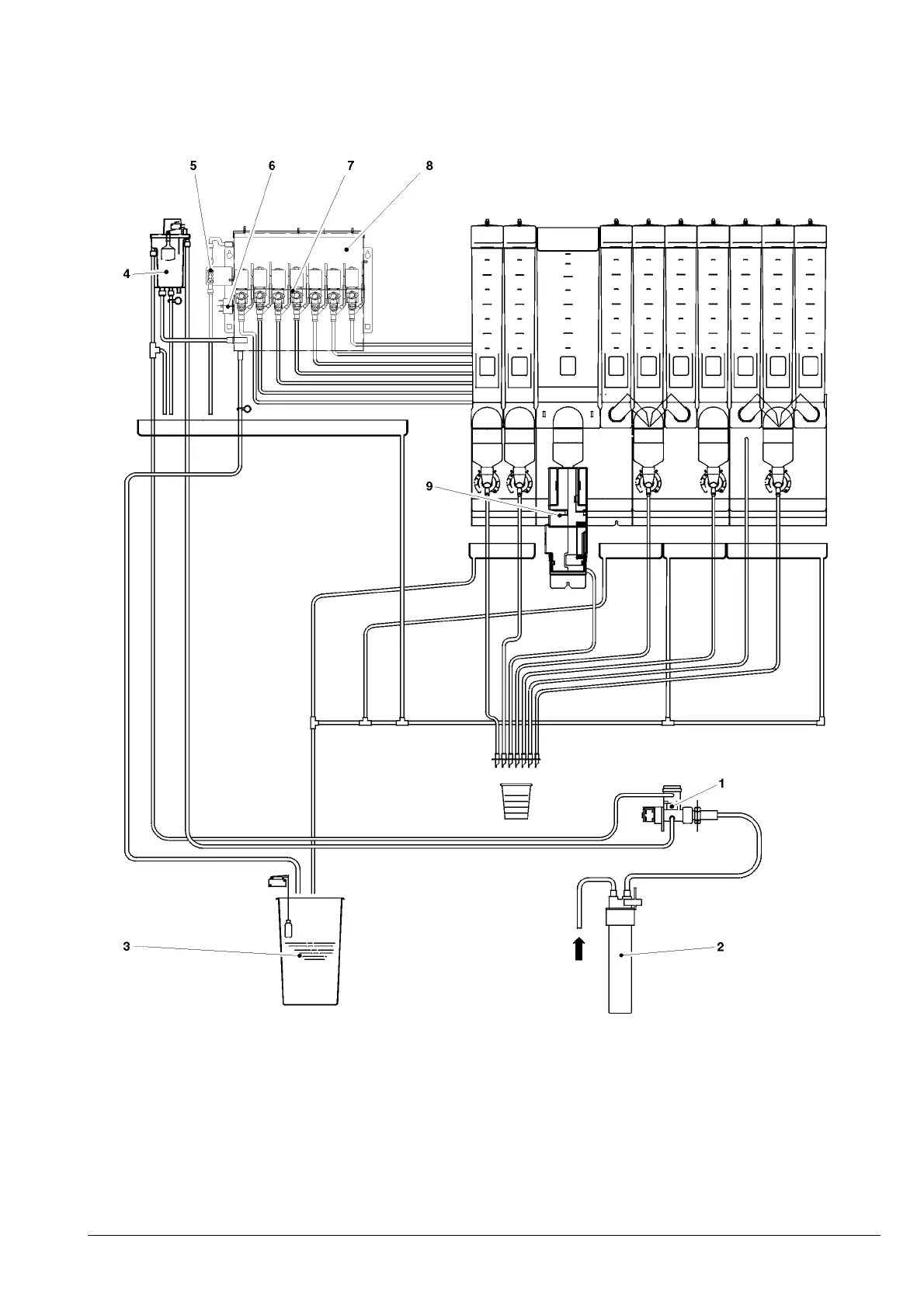

HYDRAULIC SYSTEM
Models equipped with one Fresh-Brew unit
1 - Water inlet solenoid valve
2 - Everpure filter
3 - Liquid waste container
4 - Air-break
5 - Anti-boiling thermostat
6 - Safety thermostat
7 - Instant prod. solenoid valves
8 - Instant prod. boiler
9 - Brewer unit
