Nellcor N-395 - Controls, Indicators, and Symbols; Displays. Controls. Indicators. and Connectors

CONTROLS, INDICA TORS, AND SYMBOLS
Displays, Controls, Indicators, and Connectors
N-395 Symbols
Description of Controls
Description of Displays and Visual lndicators
Description of Audible lndicators
DISPLAYS, CONTROLS, INDICATORS, AND CONNECTORS

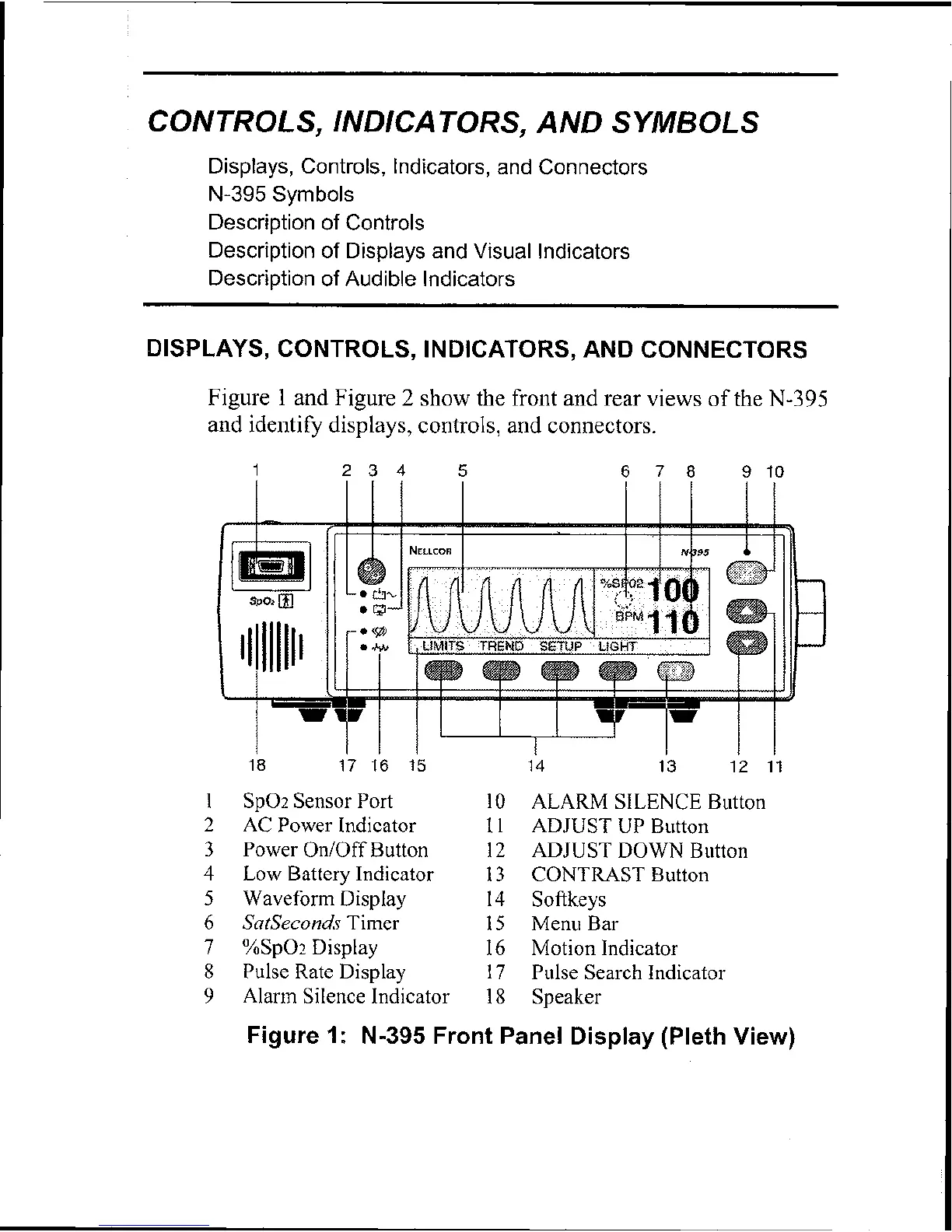

Figure 1 and Figure 2 show the front and rear views of the N-395
and identify displays, controls, and connectors.
SpO2 Sensor Port 10
AC Power Indicator 11
Power
OdOff Button 12
Low Battery Indicator 13
Waveforin Display 14
SatSecona's Timer 15
%SpOz Display 16
Pulse Rate Display 17
Alarm Silence Indicator 18
ALARM SILENCE Button
ADJUST UP Button
ADJUST
DOWN Button
CONTRAST Button
Softkeys
Menu Bar
Motion Indicator
Pulse Search Indicator
Speaker
Figure 1: N-395 Front Panel Display (Pleth View)
