Nellcor N-395 - N-395 Symbols

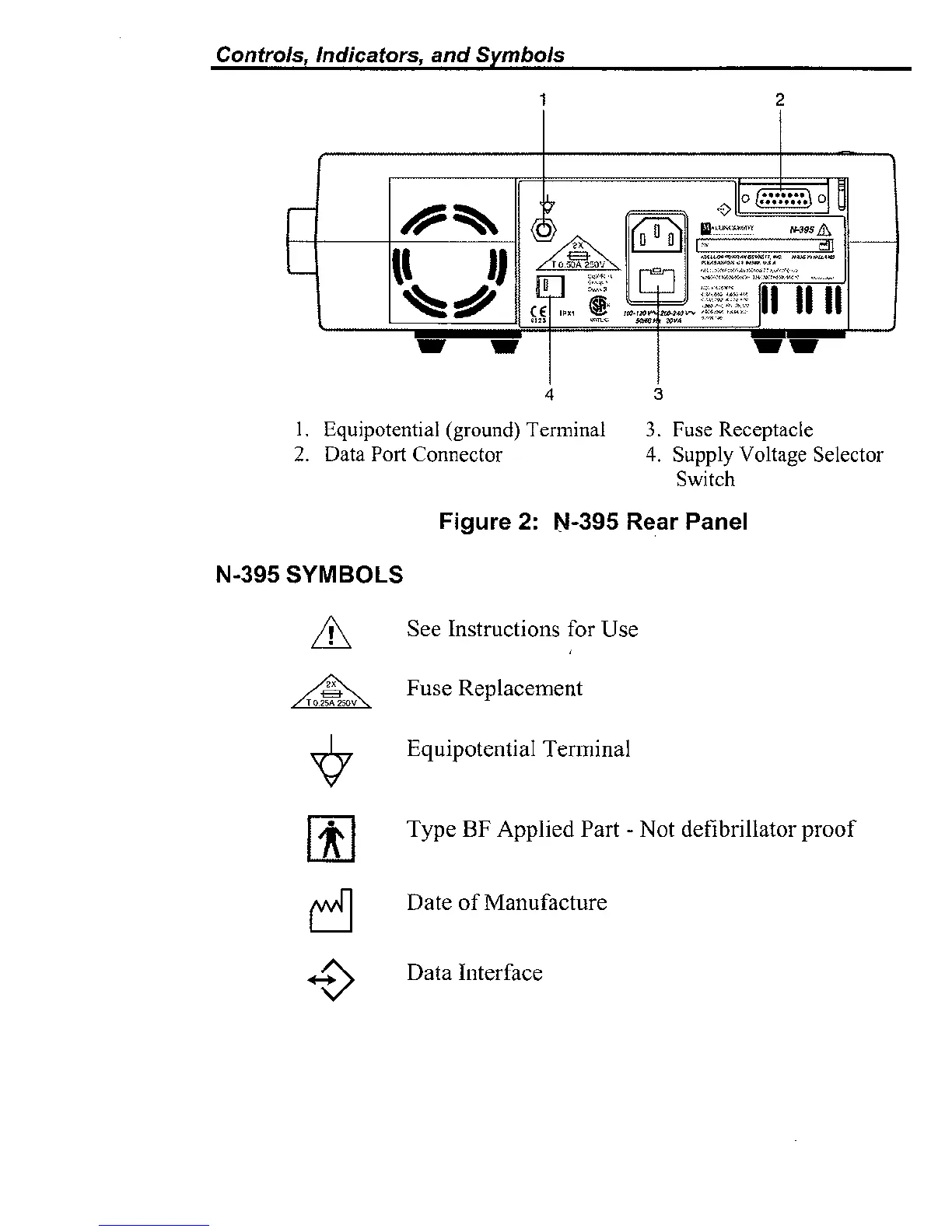

Controls. indicators, and Svmbols
1 . Equipotential (ground) Terminal 3. Fuse Receptacle
2. Data Port Connector
4. Supply Voltage Selector
Switch
Figure 2: N-395 Rear Panel
N-395 SYMBOLS
/i\ See Instructions for Use
Fuse Replacement
T 0 25A 250V
Type BF Applied Part - Not defibrillator proof
(wT( Date of Manufacture
Data Interface
