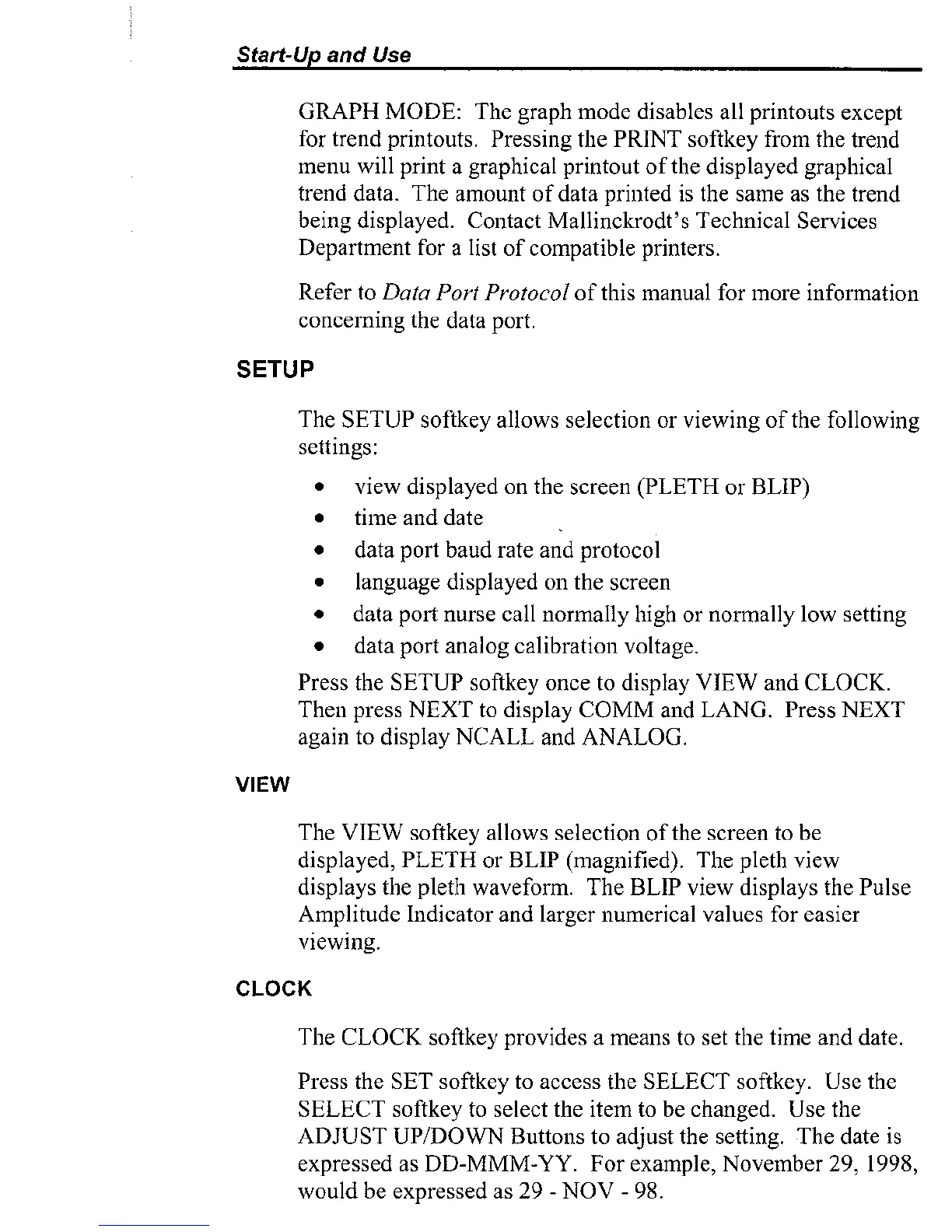

GRAPH MODE: The graph mode disables all printouts except
for trend printouts. Pressing
tlie PRINT softkey from the trend
menu will print a graphical printout of the displayed graphical
trend data.
Tlie amount of data printed is the same as the trend
being displayed.
Contact Mallinckrodt's Technical Services
Department for a list of compatible printers.
Refer to
Data Port Protocol
of this manual for more information
concerning the data port.
SETUP
The SETUP softkey allows selection or viewing of the following
settings:
e
view displayed on the screen (PLETH or BLIP)
time and date
data port baud rate and protocol
language displayed on the screen
data port nurse call normally
high or normally low setting
data port analog calibration voltage.
Press the SETUP
softkey once to display VIEW and CLOCK.
Then press NEXT to display COMM and LANG. Press NEXT
again to display NCALL and ANALOG.
The VIEW
softkey allows selection of the screen to be
displayed, PLETH or BLIP (magnified). The pleth view
displays
tlie pleth waveform. The BLIP view displays the Pulse
Amplitude Indicator and larger numerical values for easier
vaewing.
CLOCK
Tlie CLOCK softkey provides a means to set the time and date.
Press the SET
softkey to access the SELECT softkey. Use the
SELECT
softkey to select the item to be changed. Use the
ADJUST
UPIDOWN Buttons to adjust tlie setting. The date is
expressed as DD-MMM-YY. For example, November 29, 1998,
would be expressed as 29
-
NOV
-
98.
