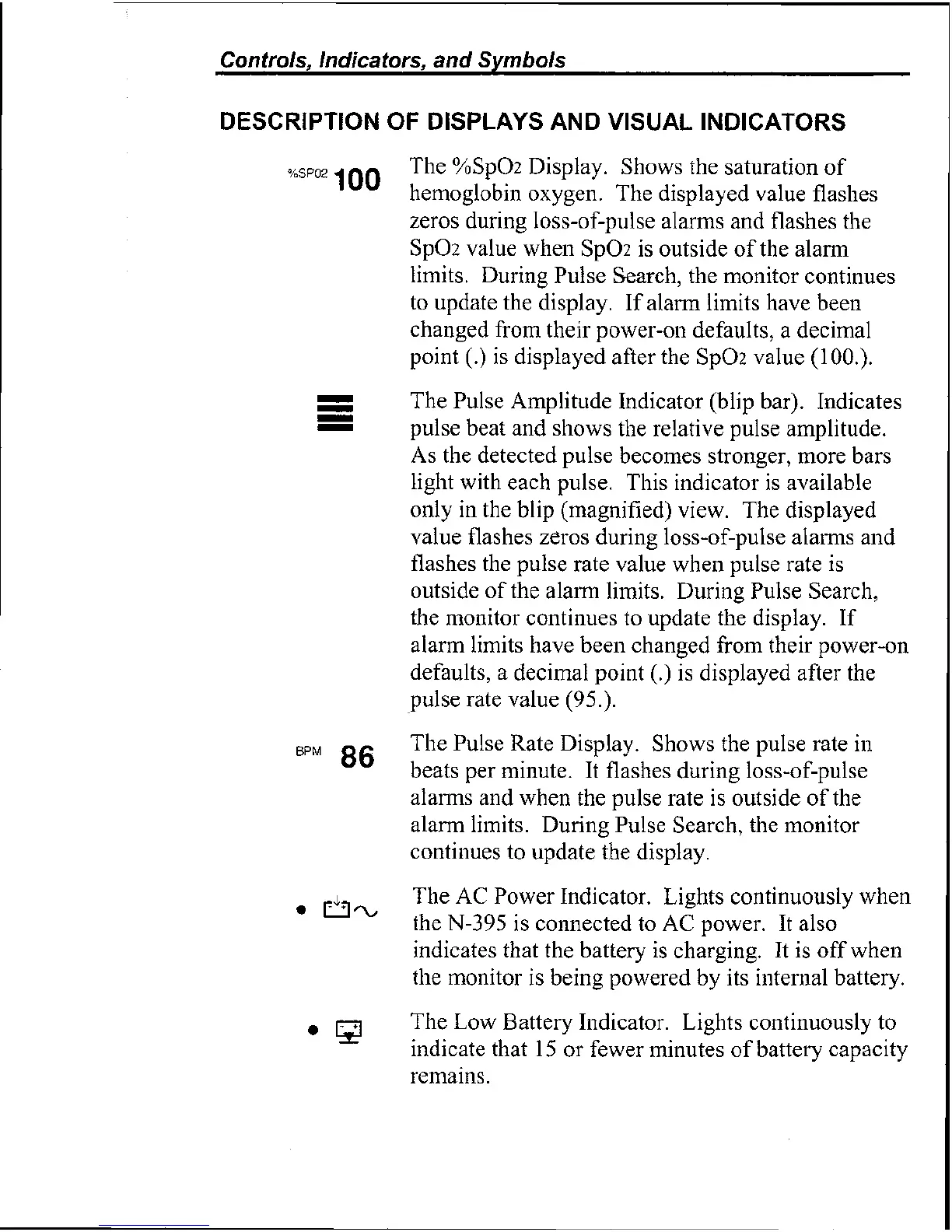

DESCRIP"B"0N OF DISPLAYS AND VISUAL INDlCATORS
The %SpOz Display. Shows the saturation of
loo
hemoglobin oxygen. The displayed value flashes
zeros during loss-of-pulse alarms and flashes the
SpOz value when SpOz is outside of the alarm
limits. During Pulse Search, the monitor continues
to update the display. If
alarm limits have been
changed
from their power-on defaults, a decimal
point
(.) is displayed after the SpOz value (100.).
111
I
I
The Pulse Amplitude Indicator (blip bar). Indicates
-
pulse beat and shows the relative pulse amplitude.
As the detected pulse becomes stronger, more bars
light with each pulse. This indicator is available
only in the blip (magnified) view. The displayed
value flashes zeros during loss-of-pulse alarms and
flashes the pulse rate value when pulse rate is
outside of the alarm limits. During Pulse Search,
the monitor continues to update the display. If
alarm limits have been changed from their power-on
defaults, a decimal point
(.) is displayed after the
pulse rate value
(95.).
BpM 86
The Pulse Rate Display. Shows the pulse rate in
beats per minute.
It flashes during loss-of-pulse
alanns and when the pulse rate is outside of the
alarm limits. During Pulse Search, the monitor
continues to update the display.
@ bq,
The AC Power Indicator. Lights continuously when
the
N-395 is coilnected to AC power. It also
indicates that the battery is charging. It is off when
the monitor is being powered by its internal battery.
@ Q
The Low Battery Indicator. Lights continuously to
indicate that
15 or fewer minutes of battery capacity
remains.
