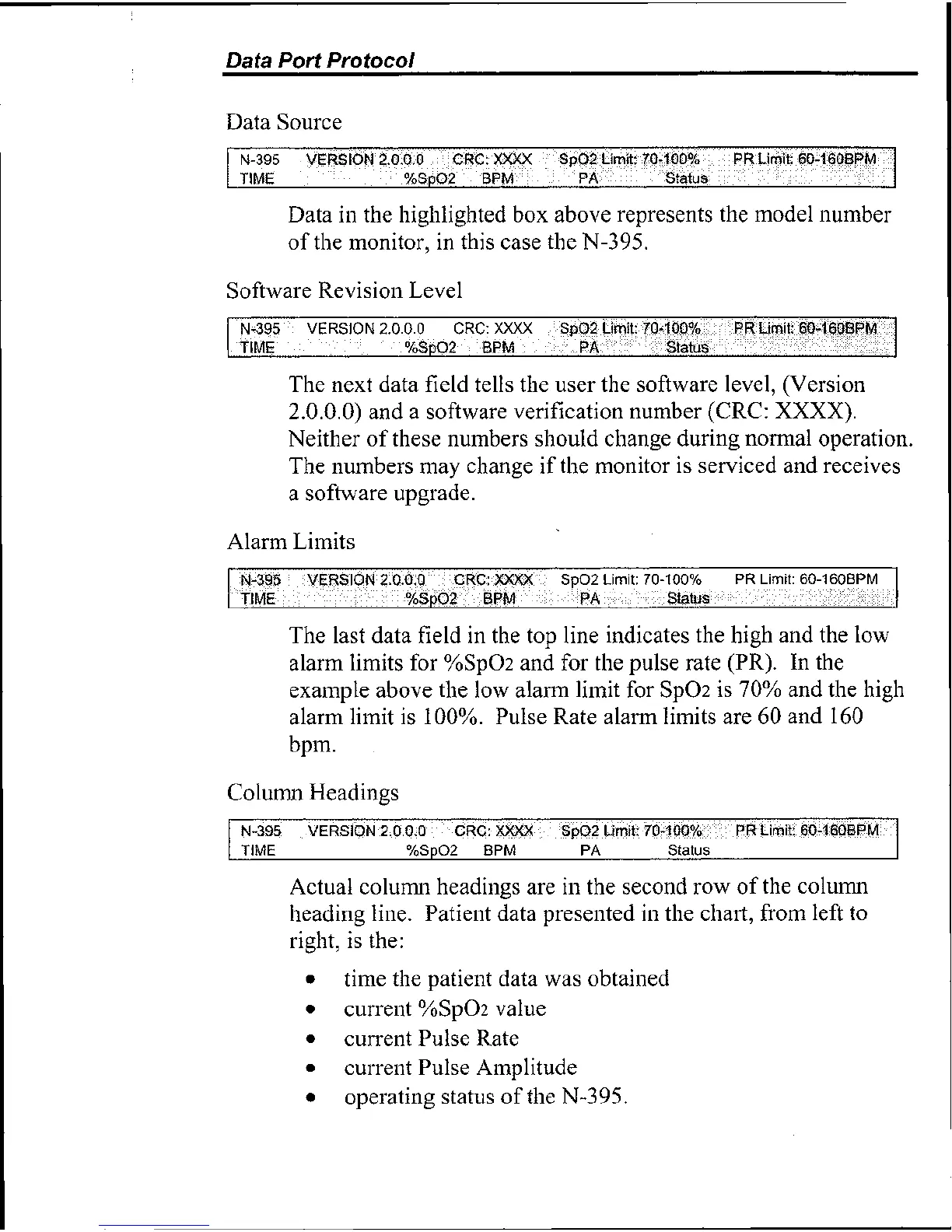

Data Porf Protocol
Data Source
N-395
VERSION
2.0.0.0
CRC:
XXXX
SpQ2
limit:
70-109%
PR
Limit:
60-160BPM
TIME
%Sp02
BPM
PA
Status
Data in the highlighted box above represents the model number
of the monitor, in this case the
N-395.
Software Revisioil Level
N-395
VERSION 2.0.0.0
CRC:
XXXX
Sp02
Limit: 70*+iO0%
PR
Limit:
60-260BPM
TIME
%Sp02
BPM
PA
Status
The next data field tells tlie user the software level, (Versioi~
2.0.0.0) and a software verification ilumber
(CRC:
XXXX).
Neither of these numbers should change during normal operation.
The numbers may change if the monitor is serviced and receives
a software upgrade.
Alarm Limits
-,
-..
N-395
VERSION
2.0.0.0
CRC:
XXXX
Sp02
Limit:
70-100% PR
Limit:
60-16OBPM
TIME %SpQ2 BPW PA
Status
The last data field in the top line indicates the high and the low
alarm
limits for %Sp02 and for the pulse rate
(PR).
In
the
example above the low alarm
liinit for Sp02 is 70% and the high
alarm liinit is 100%. Pulse Rate
alarm limits are 60 and 160
bpin.
Column Headings
N-395
VERSION
2.0.0.0
CRC:
XXXX
SpQ2
Limit:
70-900% PR
Limit:
60-IBOBPM
TIME %Sp02 BPM PA
Status
Actual c01um1 headings are in the second row of the column
heading line. Patient data presented i11 tlie chart, from left to
right, is the:
time the patient data was obtained
e
current %SpOz value
e
current Pulse Rate
curreilt Pulse Amplitude
operating status of the N-395.
