N723-EA Hardware User Guide

Chapter 5 Application Interfaces

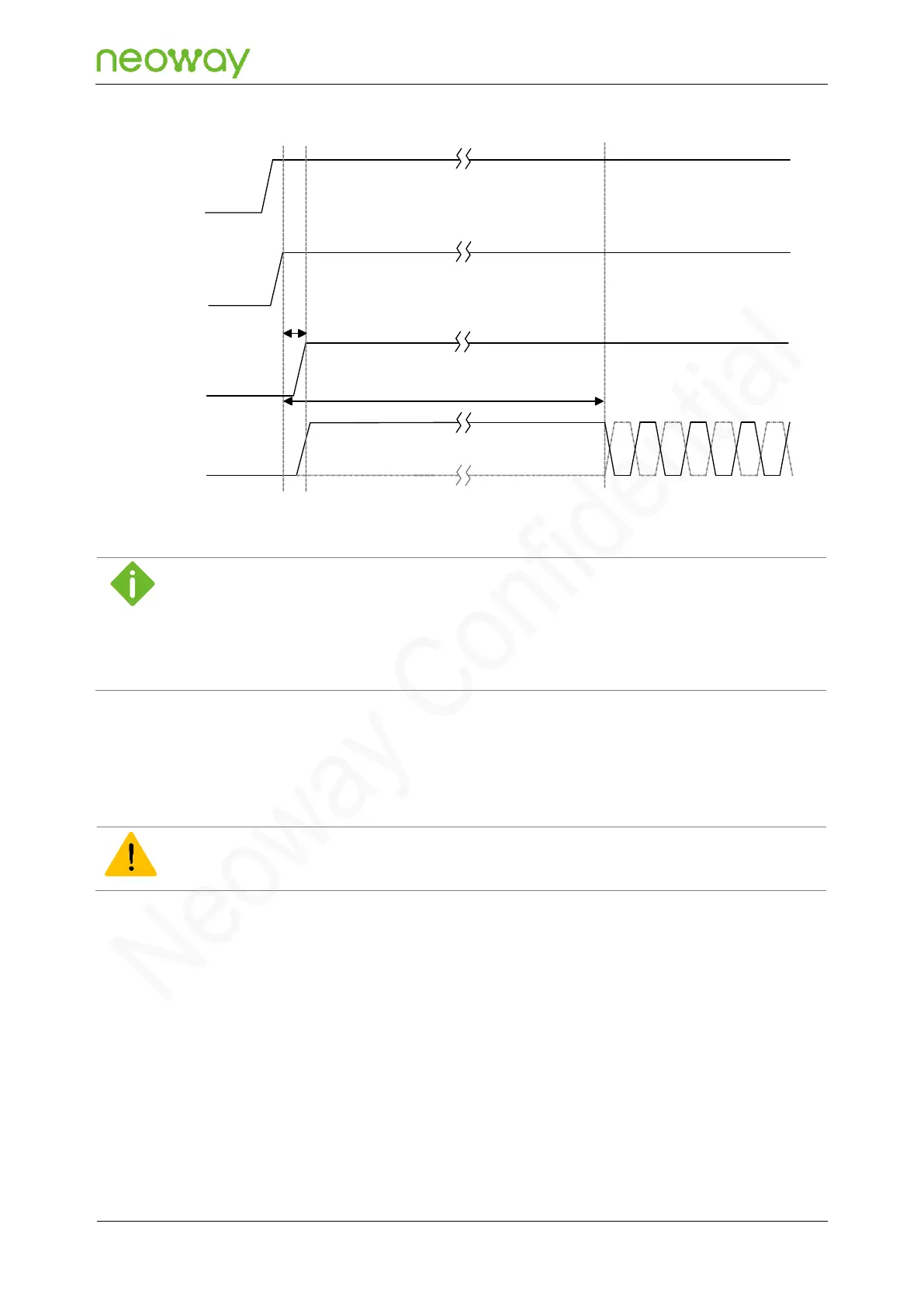

Figure 5-10 Startup process (by controlling PWRKEY)

PWRKEY

≥10s

VBAT

UART

Active

Inactive

VDD_1P8

≥10ms

Do not perform other operations on the module until it is initialized completely since if the module is started but

the initialization process has not been completed, the states of each pin are uncertain.

When VDD_1P8 of the module has voltage output, the UART port cannot communicate normally since its boot

process has not been completed yet. The power-on time of VDD_1P8 and UART may slightly vary with the

module software.

Reset process

When the module is in startup state, it is recommended that inputting a low-level pulse to PWRKEY_N less than

6s can reset the module.
