N723-EA Hardware User Guide

Chapter 5 Application Interfaces

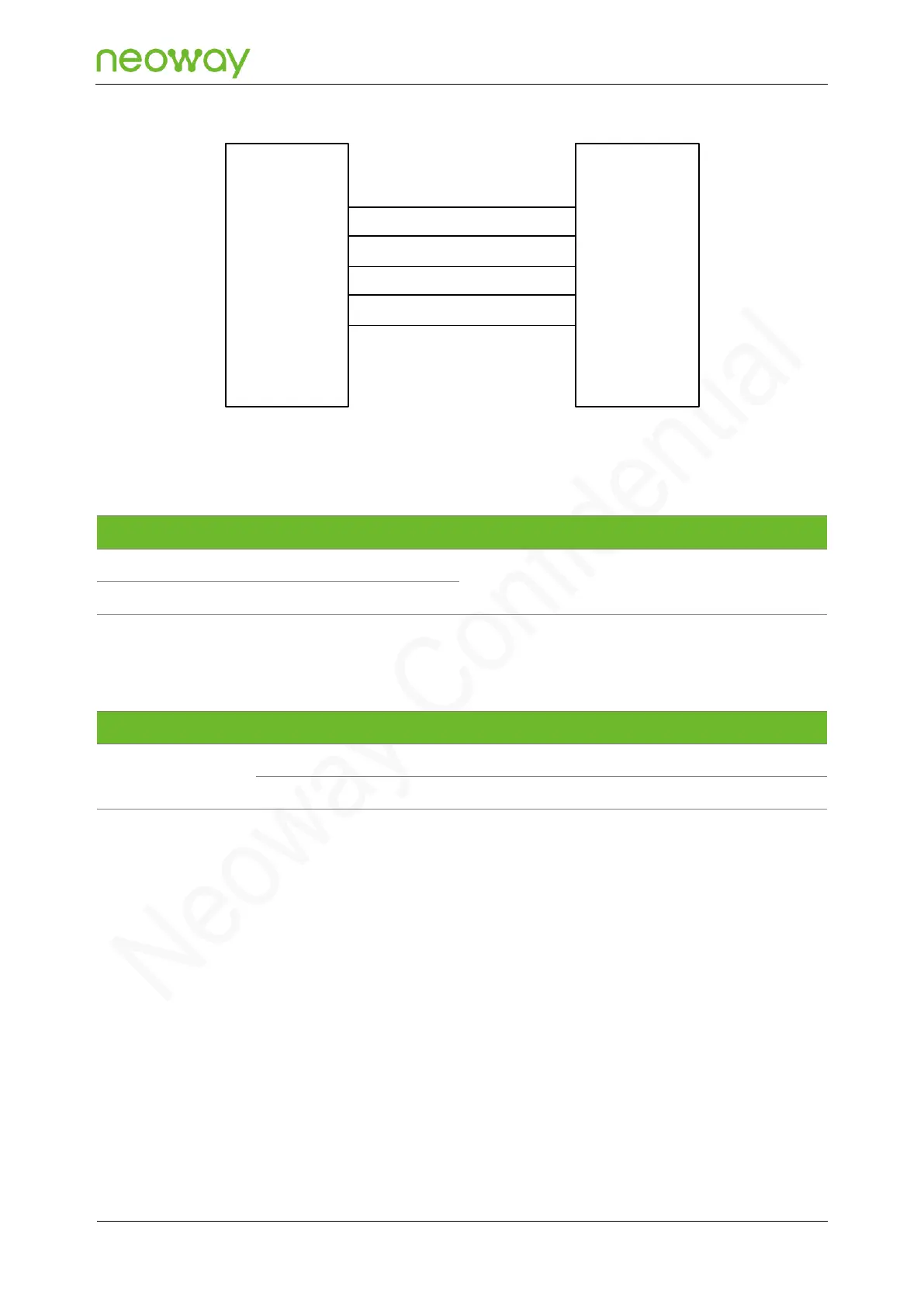

Figure 5-27 SPI reference design

Device

(Slave)

N723-EA

(Master)

SPI_MOSI

SPI_MISO

SPI_CS_N

SPI_CLK

GND

SPI_MOSI

SPI_MISO

SPI_CS_N

SPI_CLK

GND

5.3.7 I2C

Signal

I/O

Function description

Remarks

I2C_SDA

I2C data

Connecting an external 4.7 kΩ pull-up resistor is

required.

I2C_SCL

I2C clock

Table 5-1 I2C interface parameters

IO level

Supported mode

Supported speed

1.8 V

Standard mode

100 kbps

Fast mode

400 kbps

N723-EA provides only one I2C interface, which supports only master mode and 1.8 V level. There are

no pull-up resistors internally. Connecting an external pull-up resistor is required to prevent the lack of

I2C drive capability. The following figure shows the reference design of the I2C interface:
