N723-EA Hardware User Guide
Chapter 9 Mounting
Copyright © Neoway Technology Co., Ltd. All rights reserved.
71
9.2 Application Foot Print
The N723-EA module has a total of 100 pins in LGA package, and the recommended application PCB
package is as follows:
Only GND via-holes and pour coppers are allowed in the shaded area " ” of the PCB package to ensure the
proper operation of the module.

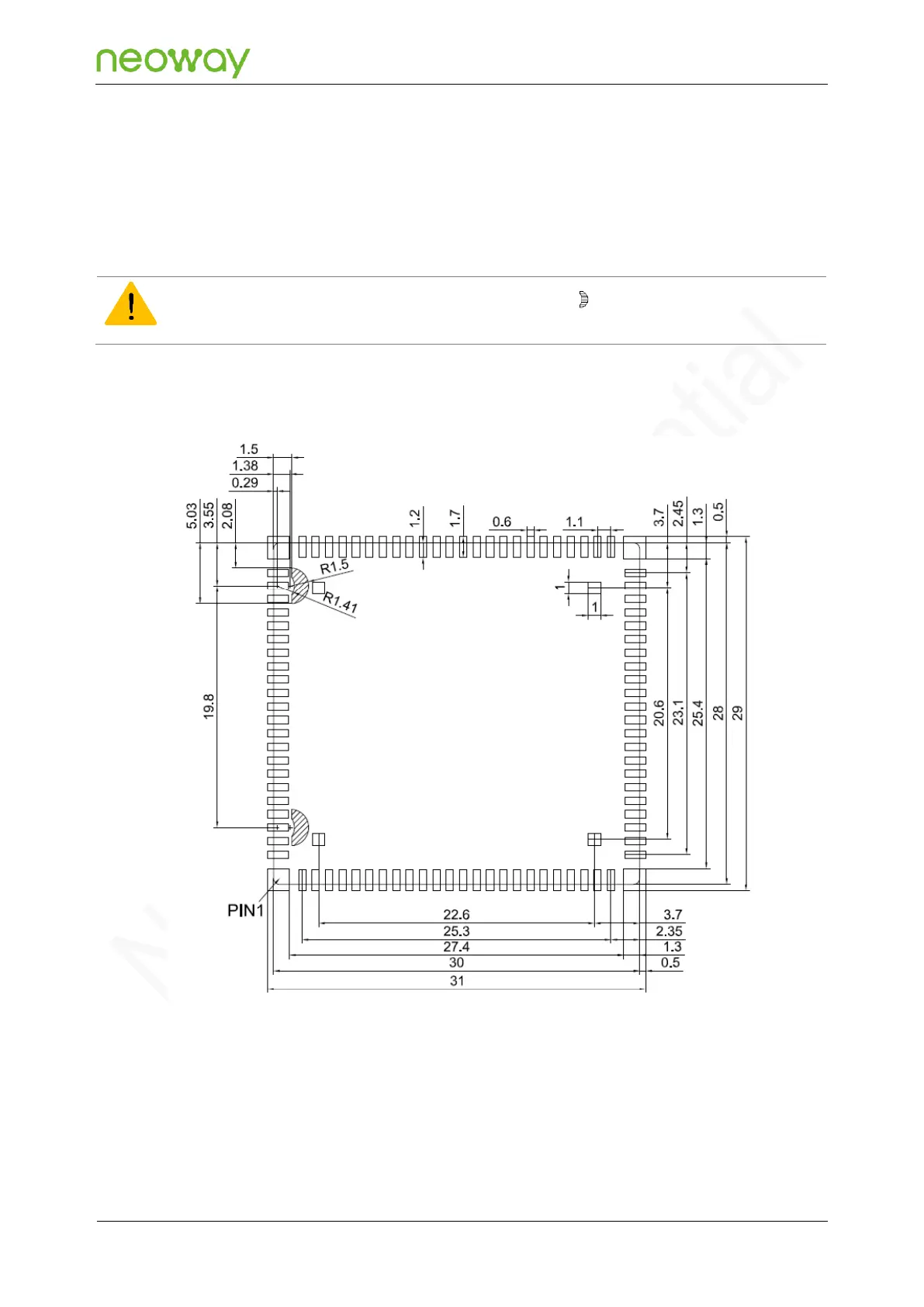

Figure 9-2 N723-EA recommended footprint of the pplication PCB (unit: mm)
9.3 Stencil
The recommended stencil thickness is at least 0.15 mm to 0.20 mm.
