2.3 PCB Foot Print
LCC packaging is adopted to package the pins of the WM620 module. Figure 2-2 shows the
recommended PCB foot print.

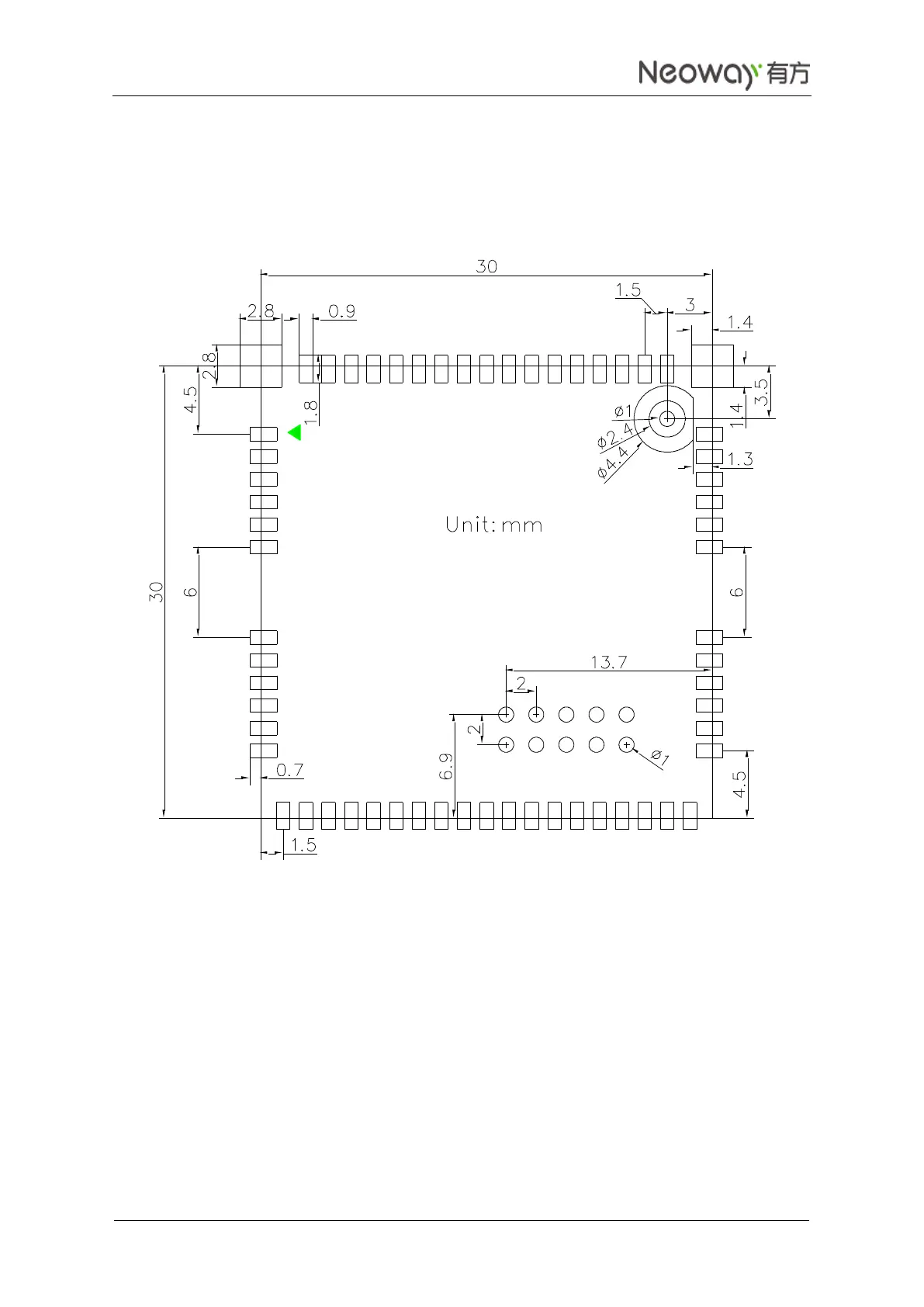

Figure 2-2 PCB foot print recommended for WM620 (unit: mm)
