3.5.2 Level Shifting for UART
If the UART is interfacing with a MCU that has 3.3 V logic levels, a resistor should be connected in series
with the signals.

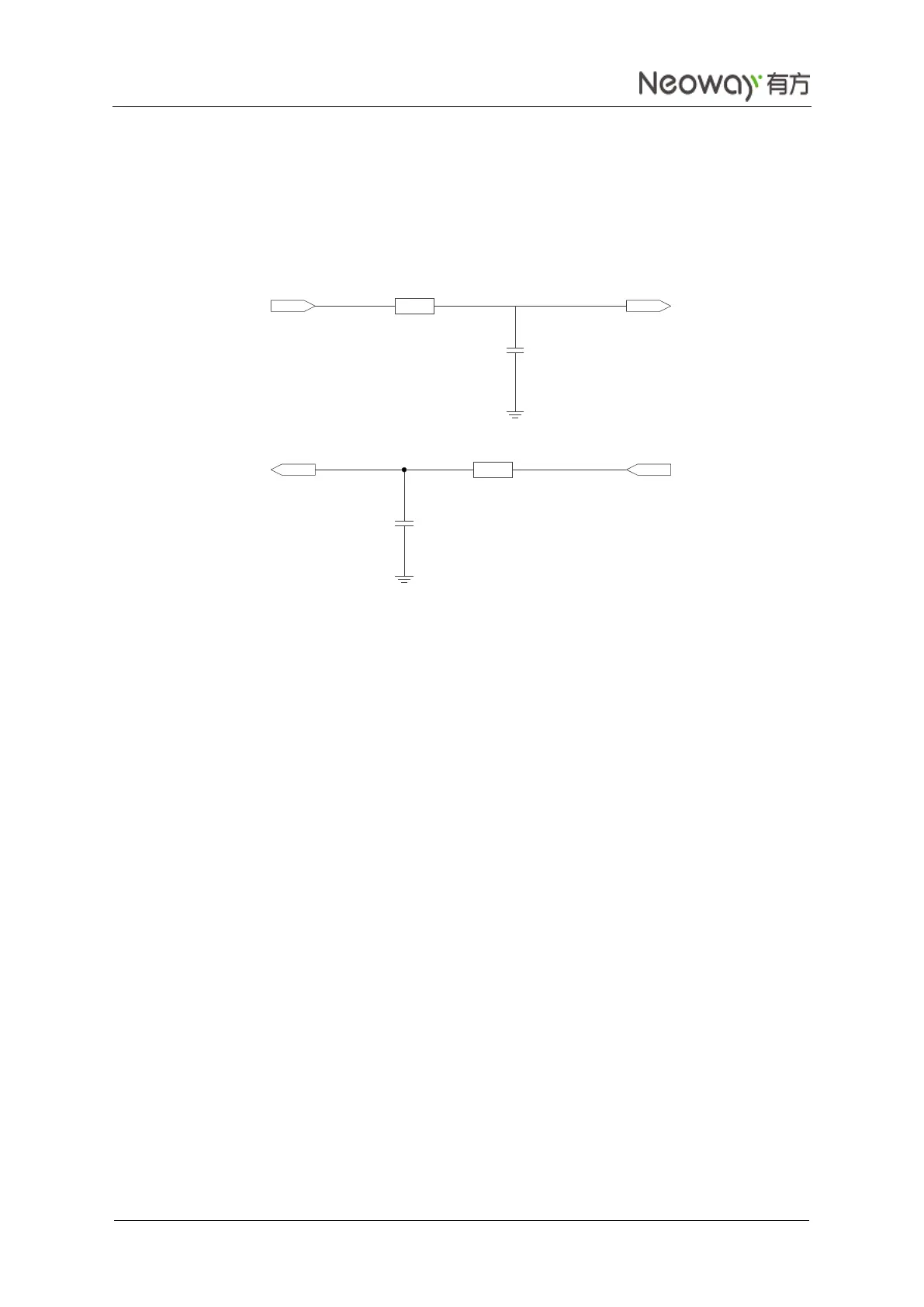

Figure 3-18 Recommended circuit between 3.3V MCU and UART
If the UART is interfaced with an MCU that has 5 V logic levels, level shifting is required for both UART
receive and transmit. Figure 3-19 shows a reference circuit.
200
33 pF
33 pF
MCU_UTXD
MCU_URXD
RXD
TXD
200
