NETGEAR N150

Network Maintenance
69
N150 Wireless ADSL2+ Modem Router DGN1000

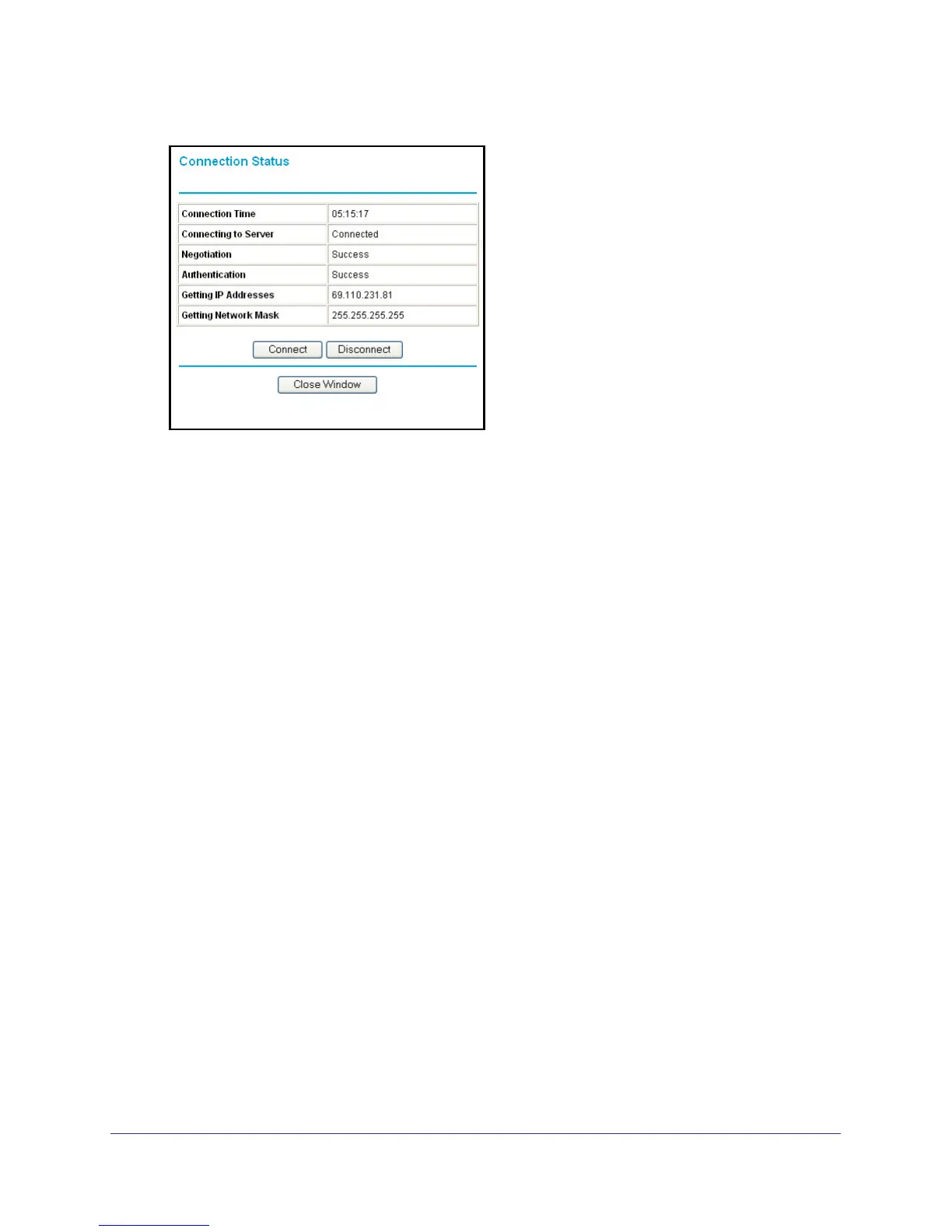

6. Fill in the fields as follows:
Connection Time. The time elapsed since the last connection to the Internet through the
DSL port.
Connecting to sender. The connection status.
Negotiation. Success or Failed.
Authentication. Success or Failed.
Obtaining IP Address. The IP address assigned to the WAN port by the ISP.
Obtaining Network Mask. The network mask assigned to the WAN port by the ISP.
