NETGEAR N150

Advanced Settings
82
N150 Wireless ADSL2+ Modem Router DGN1000
created to your local network for all 192.168.0.x addresses. With this configuration, if you
attempt to access a device on the 134.177.0.0 network, your router forwards your request to
the ISP. The ISP forwards your request to the company where you are employed, and the
request is likely to be denied by the company’s firewall.
In this case you have to define a static route, telling your router that 134.177.0.0 should be
accessed through the ISDN router a
t 192.168.0.100. The static route setup would look like
Figure 15, Add static routes.
In this example:
• The Destination IP Address and IP Subnet Mask fields specify that this static route
applies to all 134.177.x.x addresses.
• The Gateway IP Address field specifies that all traffic for these addresses are to be
forwarded to the ISDN router a
t 192.168.0.100.
• The value in the Metric field represents the number of routers
between your network and
the destination. This is a direct connection, so it can be set to the minimum value of 2.
• The Private check box is selected only as a precautionary security measure in case RIP
is activated.
Configure Static Routes
 To configure static routes:

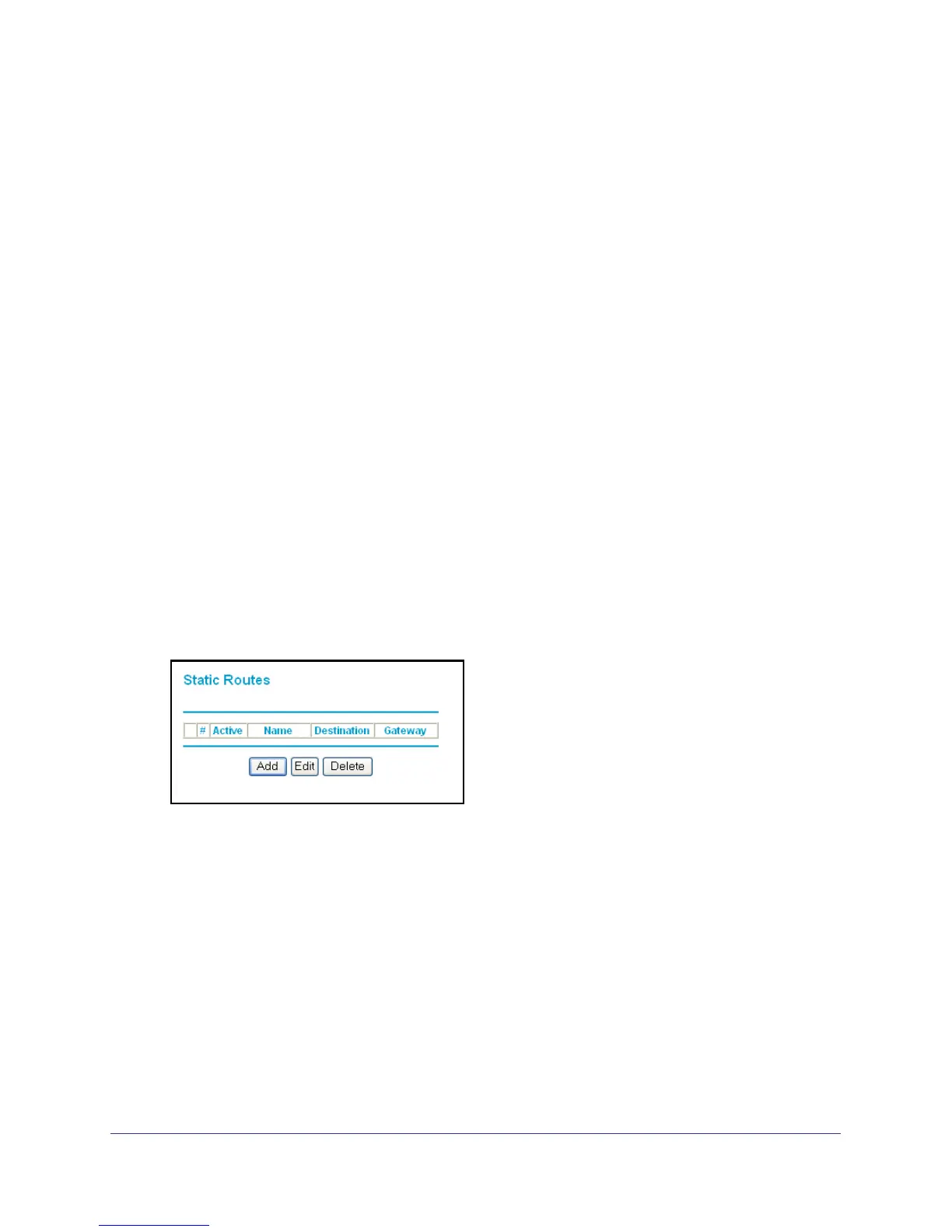

1. Select Advanced > Static Routes to display the following screen.
Figure 14. View additional routing information
2. To add a static route:
a. Click Add to open the following screen.
