Advanced Settings
83
N150 Wireless ADSL2+ Modem Router DGN1000

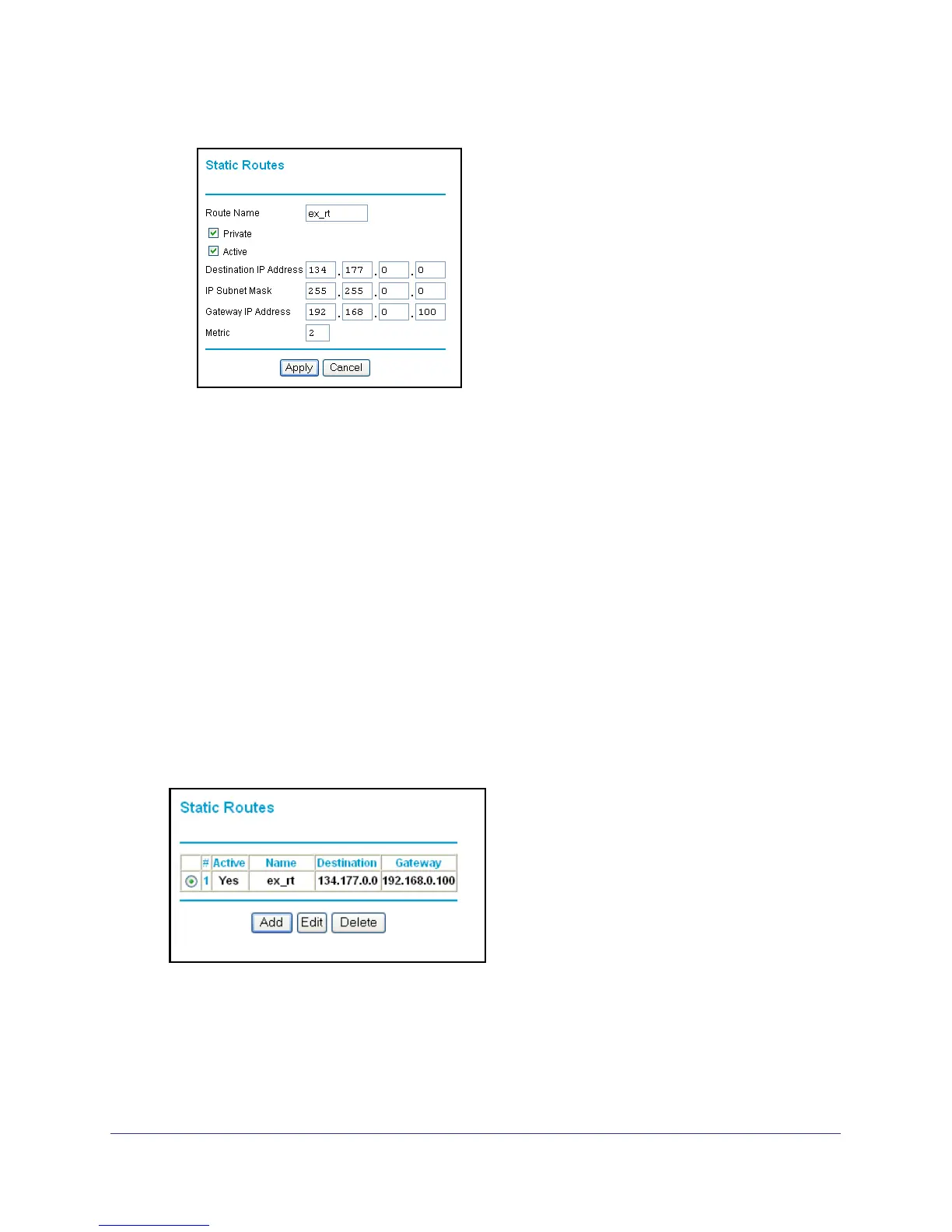

Figure 15. Add static routes
b. In the Route Name field, enter a route name for this static route. This name is for
identification purpose only.
c. Select Private if you want to limit access to the LAN only. The static route will not be
reported in RIP.
d. Select Active to make this route effective.
e. Enter the destination IP address of the final destination.
f. Enter the IP subnet mask for this destination. If the destination is a single host, type
255.255.255.255.
g. Enter the gateway IP address, which has to be a router o
n the same LAN segment
as the router.
h. In the Metric field, enter a number between 2 and 15 as the metric value. This
represents the number of routers
between your network and the destination. Usually,
a setting of 2 or 3 works.
3. Click Apply to save your changes. The Static Routes table updates to show the new entry.
