Hardware Setup
10
N150 Wireless ADSL2+ Modem Router DGN1000
Front Panel

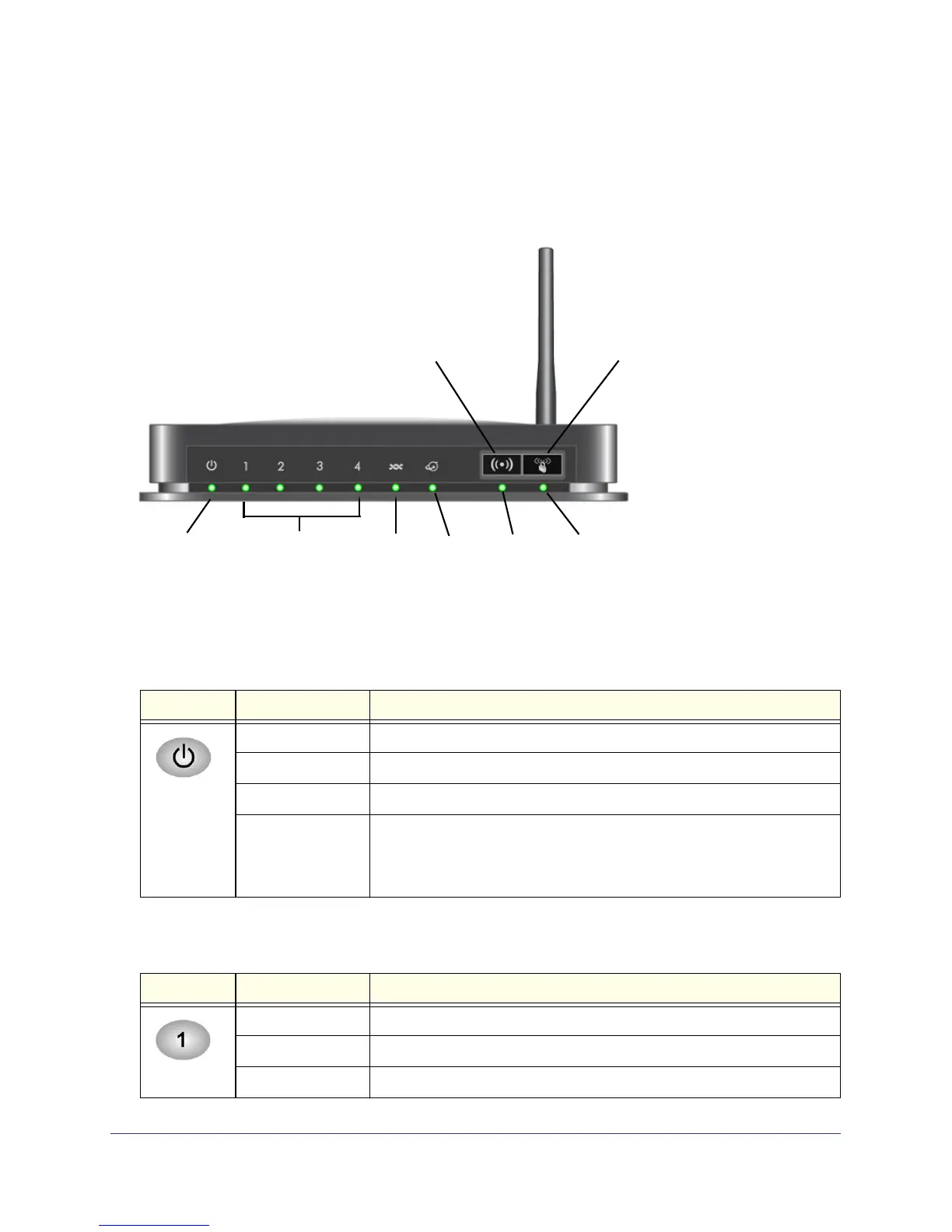

The wireless modem router front panel has the nine status LEDs and icons shown in the
figure. Note that the Wireless and WPS icons are buttons.
Power
LAN ports
DSL
Internet
Wireless
WPS
Wireless on/off button WPS On/Off button
Figure 4. Front panel LED Icons
The tables below describe the LEDs, icons, and buttons on the front panel from left to right.
Table 1. Power On/Off button
Icon LED Activity Description
Solid green Power is supplied to the router.
Solid red POST (power-on self-test) failure or a device malfunction has occurred.
Off Power is not supplied to the router.
Restore factory
settings
Light blinks momentarily when the Restore Factory Settings button on the
bottom of the unit is pressed for 6 seconds. The Power LED then blinks red
three times when the Restore Factory Settings button is released and then
turns green as the gateway resets to the factory defaults.
Table 2. LAN LED
Icon LED Activity Description
Solid green The LAN port has detected an Ethernet link with a device.
Blinking green Data is being transmitted or received.
Off No link is detected on this port.
