Hardware Setup
14
N150 Wireless ADSL2+ Modem Router DGN1000
Two-Line ADSL Microfilter
Use an ADSL microfilter with a built-in splitter when there is a single wall outlet that provides
connectivity for both the wireless modem router and your telephone equipment. Plug the
ADSL microfilter into the wall outlet, plug your phone equipment into the jack labeled Phone,
and plug the wireless modem router into the jack labeled ADSL.
Plugs into the DSL line

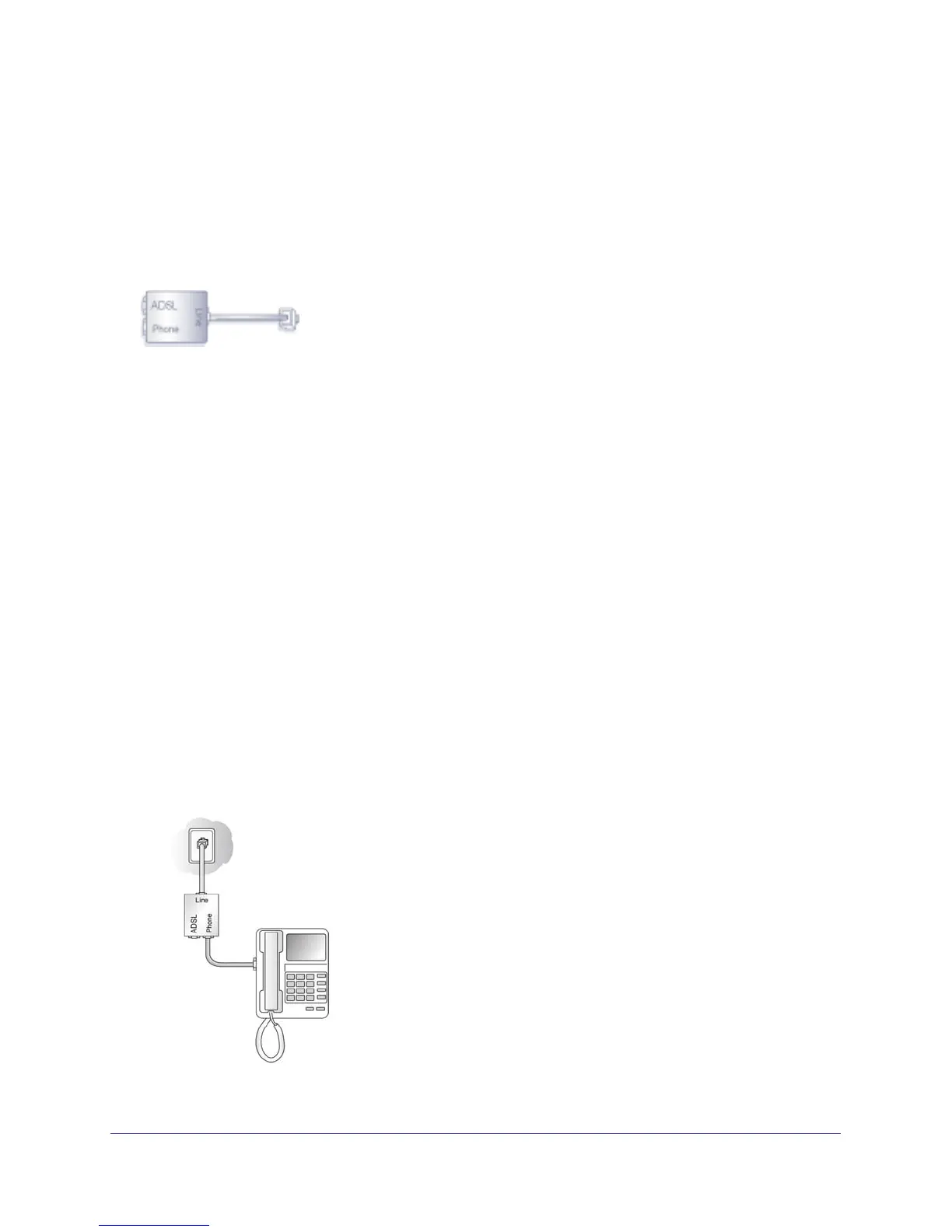

Figure 6. Two-line ADSL microfilter with built-in splitter
Summary
• One-line ADSL microfilter. Use with a phone or fax machine.
• Splitter. Use with a one-line ADSL microfilter to share an outlet with a phone and the
wireless modem router.
• Two-line ADSL microfilter with built-in splitter. Use to share an outlet with a phone and the
wireless modem router.
Cable Your N150 Wireless Modem Router
The installation guide that came in the box has a cabling diagram on the first page. This
section walks you through the cabling procedure with detailed illustrations.
To cable your router:
1. Put an ADSL microfilter between the phone line and the phone as shown here. The
illustration shows a two-line ADSL microfilter with built-in splitter. The phone plugs into
the Phone jack as shown.
