NETGEAR ProSAFE GS105Ev2 User Manual

Manage Network Settings
22
ProSAFE Gigabit Web Managed (Plus) Switches
The switch’s default password is password.
The Switch Information page displays.

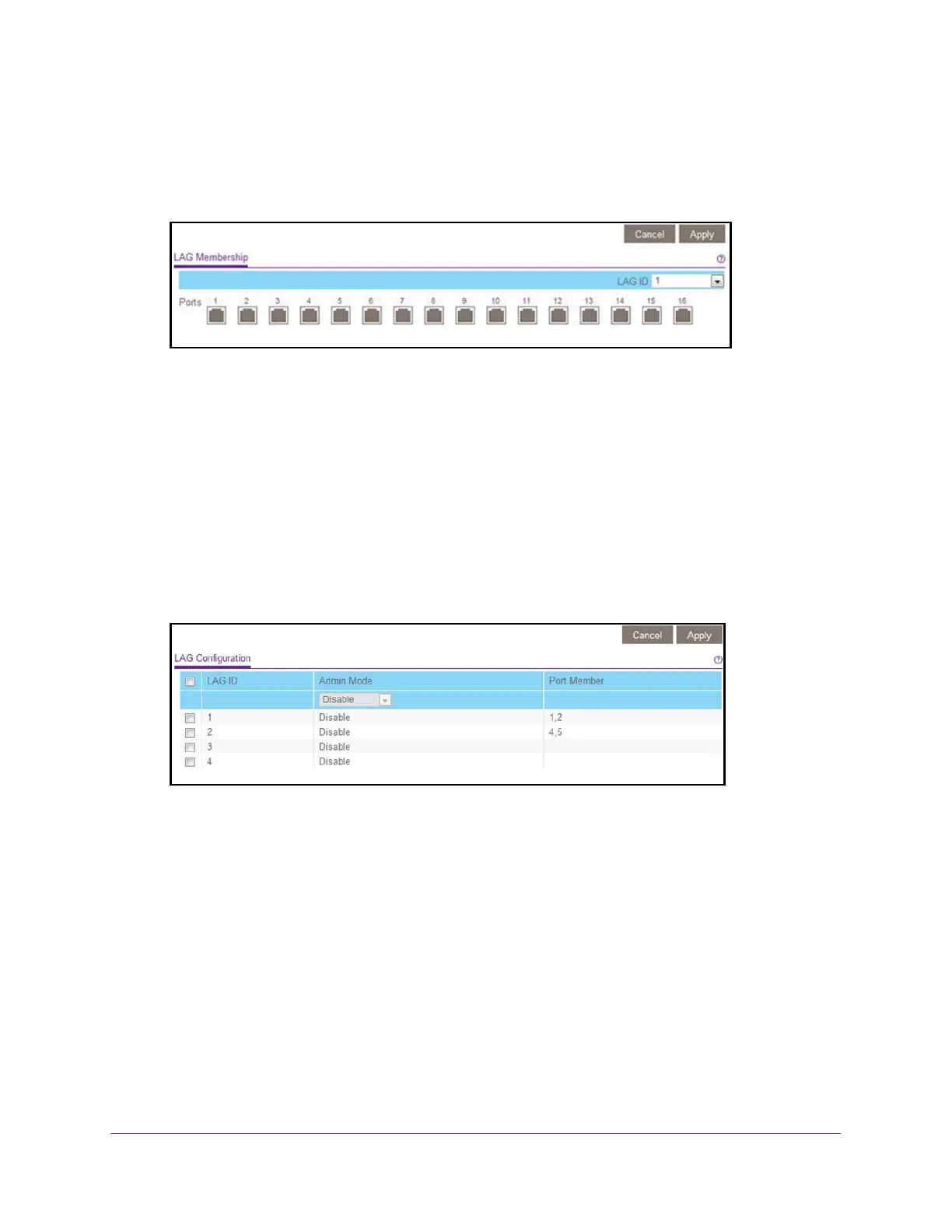

5. Select System > LAG > LAG Membership.
The previous figure is an example. Your switch might provide a larger number of ports.
6. In the LAG ID menu, select the LAG ID.
The number of LAGs that the switch supports depends on the model.
7. Select the ports for the LAG by selecting the associated check boxes under the port
numbers.
A LAG consists of at least two ports.
8. Click the Apply button.
Your settings are saved.
9. Select System > LAG > LAG Configuration.
10. Select the ID of the LAG for which you just set up the port membership.
11. In the Admin Mode menu, select Enable.
12. Click the Apply button.
Your settings are saved.

NETGEAR ProSAFE GS105Ev2 Specifications

General

Model	GS105Ev2
Category	Switch
Ports	5
Port Type	Gigabit Ethernet
Form Factor	Desktop
VLAN Support	Yes
QoS	Yes
Jumbo Frame Support	Yes
Power Supply	External power adapter
Switching Capacity	10 Gbps
Forwarding Rate	7.4 Mpps
Management	Web-based management
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-20° to 70°C
Humidity	90% maximum relative humidity, noncondensing
Weight	0.3 kg
