NETGEAR ProSAFE GS105Ev2 User Manual

Use VLANS for Traffic Segmentation
41
ProSAFE Gigabit Web Managed (Plus) Switches

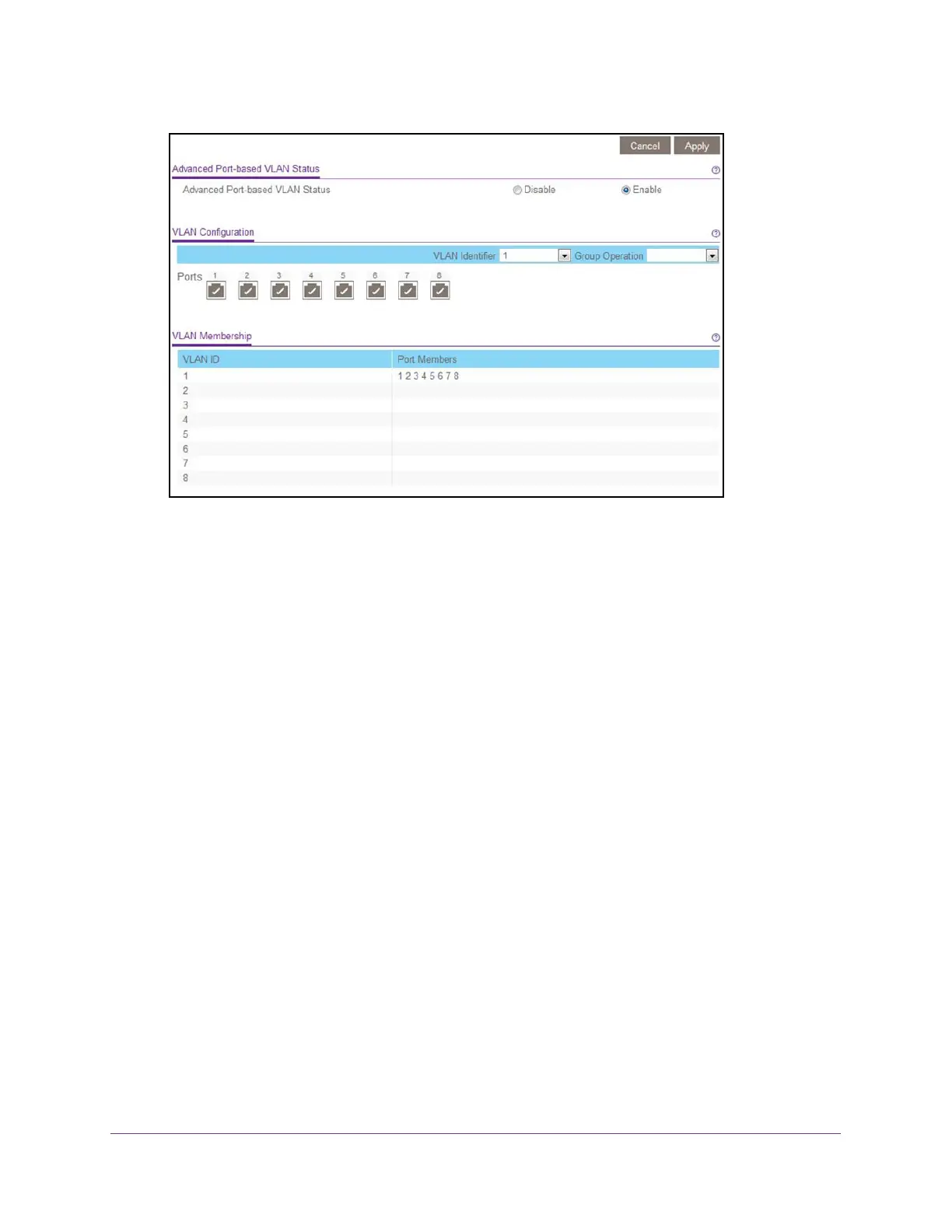

The previous figure is an example. Your switch might provide more or less ports.
9. In the VLAN identifier menu, select the VLAN.
10. Select the ports that you want to add to the VLAN by doing the following:
a. (Optional) In the Group Operation menu, select either Select All or Remove All.
All ports are either added to the VLAN or removed from the VLAN.
b. Select or remove individual ports by selecting the check box under the port
numbers.
Note: If ports are members of the same LAG, you must assign them to the same
VLAN.
c. Click the Apply button.
Your settings are saved. In the VLAN Membership table, the ports display as
members of the VLAN.
11. To select ports for another VLAN, repeat Step 9 and Step 10.
Use the ProSAFE Plus Utility to Assign Ports to Multiple
Port-Based VLANs
 To assign ports to multiple port-based VLANs:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired network connection, or connect directly to a switch that is
off-network using an Ethernet cable.

NETGEAR ProSAFE GS105Ev2 Specifications

General

Model	GS105Ev2
Category	Switch
Ports	5
Port Type	Gigabit Ethernet
Form Factor	Desktop
VLAN Support	Yes
QoS	Yes
Jumbo Frame Support	Yes
Power Supply	External power adapter
Switching Capacity	10 Gbps
Forwarding Rate	7.4 Mpps
Management	Web-based management
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-20° to 70°C
Humidity	90% maximum relative humidity, noncondensing
Weight	0.3 kg
