Manage and Monitor the Switch
58
ProSAFE Gigabit Web Managed (Plus) Switches
Manage the Port Speed
By default, the port speed on all ports is set automatically after the switch determines the
speed using auto-negotiation with the link partner. You can select a specific port speed
setting for each port, or disable a port by shutting it down manually.
Use Browser-Based Access to Specify the Port Speed or Shut
Down a Port
To specify the port speed or shut down ports:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired network connection, or connect directly to a switch that is
off-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser, enter the IP address of the switch.
If you do not know the IP address of the switch, see Access the Switch Using a Web
Browser on page 7.
The login window opens.
4. Enter the switch’s password in the password field.
The switch’s default password is password.
The Switch Information page displays.
5. Select System > Management > Port Status.

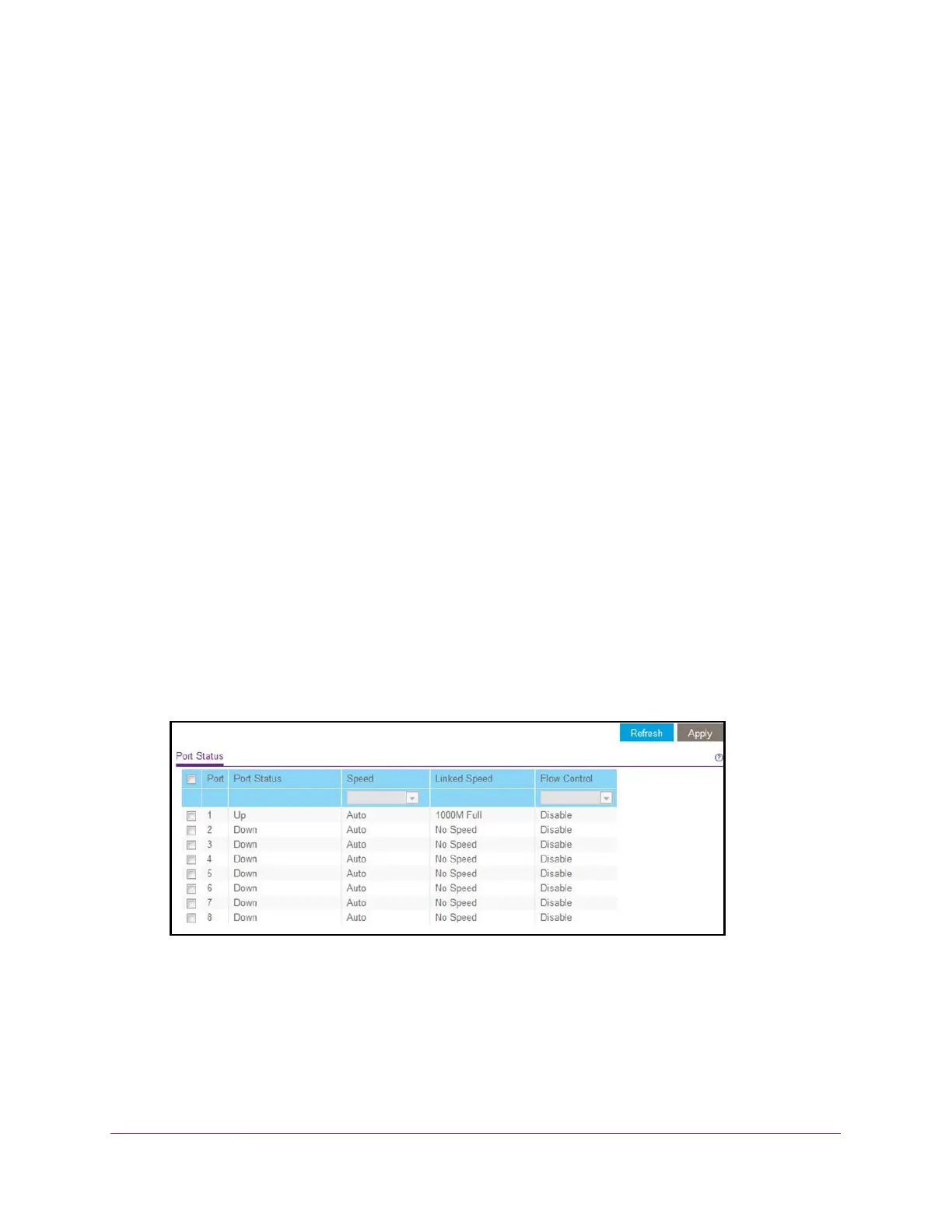

The previous figure is an example. Your switch might provide more or less ports.
6. Select one or more ports.
7. In the Speed menu, select one of the following options:
Auto. The port speed is set automatically after the switch determines the speed using
auto-negotiation with the link partner. This is the default setting.
Disable. The port is shut down.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR ProSAFE GS105Ev2 and is the answer not in the manual?

NETGEAR ProSAFE GS105Ev2 Specifications

General IconGeneral
ModelGS105Ev2
CategorySwitch
Ports5
Port TypeGigabit Ethernet
Form FactorDesktop
VLAN SupportYes
QoSYes
Jumbo Frame SupportYes
Power SupplyExternal power adapter
Switching Capacity10 Gbps
Forwarding Rate7.4 Mpps
ManagementWeb-based management
Operating Temperature32°F to 104°F (0°C to 40°C)
Storage Temperature-20° to 70°C
Humidity90% maximum relative humidity, noncondensing
Weight0.3 kg
