NETGEAR ProSAFE GS105Ev2 User Manual

Manage and Monitor the Switch
77
ProSAFE Gigabit Web Managed (Plus) Switches
Use the ProSAFE Plus Utility to View and Clear the Port
Statistics
 To view and clear the port statistics:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired network connection, or connect directly to a switch that is
off-network using an Ethernet cable.
2. Double-click the ProSAFE Plus Utility icon.
The Switch Selection page displays a list of Web Managed (Plus) switches that it
discovers on the local network.
3. Select the switch.
If you do not see the switch, click the REFRESH button.
4. Click the APPLY button.
You are asked to enter the password for the switch.
5. Enter the switch’s password in the password field.
The switch’s default password is password.
The Switch Status page displays.

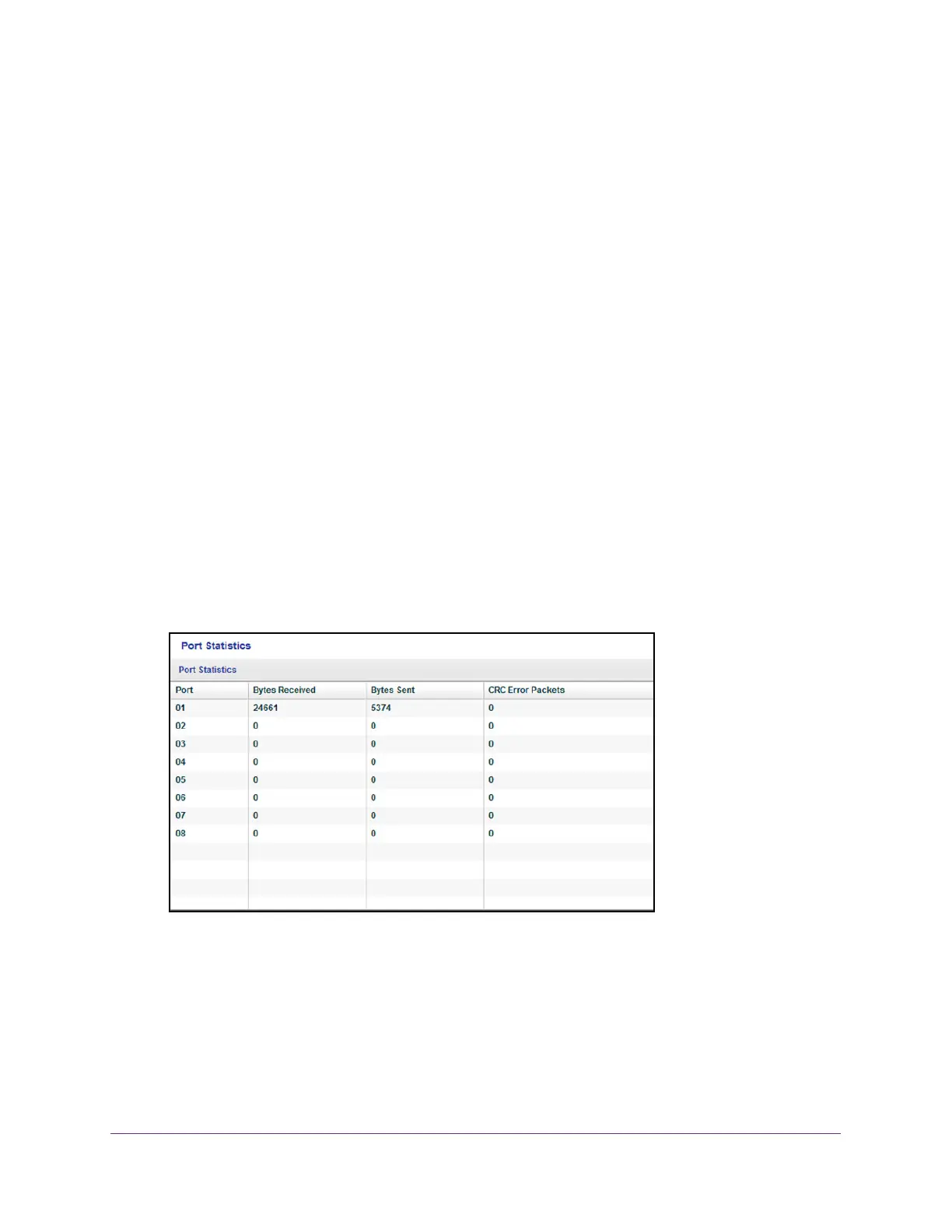

6. Select System > Monitoring > Port Statistics.
The previous figure is an example. Your switch might provide more or less ports.
7. To clear the port statistics, click the CLEAR COUNTERS button.
All statistics counters change to 0.

NETGEAR ProSAFE GS105Ev2 Specifications

General

Model	GS105Ev2
Category	Switch
Ports	5
Port Type	Gigabit Ethernet
Form Factor	Desktop
VLAN Support	Yes
QoS	Yes
Jumbo Frame Support	Yes
Power Supply	External power adapter
Switching Capacity	10 Gbps
Forwarding Rate	7.4 Mpps
Management	Web-based management
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-20° to 70°C
Humidity	90% maximum relative humidity, noncondensing
Weight	0.3 kg
