NETGEAR ProSAFE GS105Ev2 User Manual

Manage and Monitor the Switch
74
ProSAFE Gigabit Web Managed (Plus) Switches
By default, mirroring is disabled.
10. Click the APPLY button.
Your settings are saved.
View Switch Information
You can view the switch product name (model), MAC address, firmware level, DHCP mode,
and other network information.
Use Browser-Based Access to View Switch Information
 To view information about the switch:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired network connection, or connect directly to a switch that is
off-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser, enter the IP address of the switch.
If you do not know the IP address of the switch, see Access the Switch Using a Web
Browser on page 7.
The login window opens.
4. Enter the switch’s password in the password field.
The switch’s default password is password.

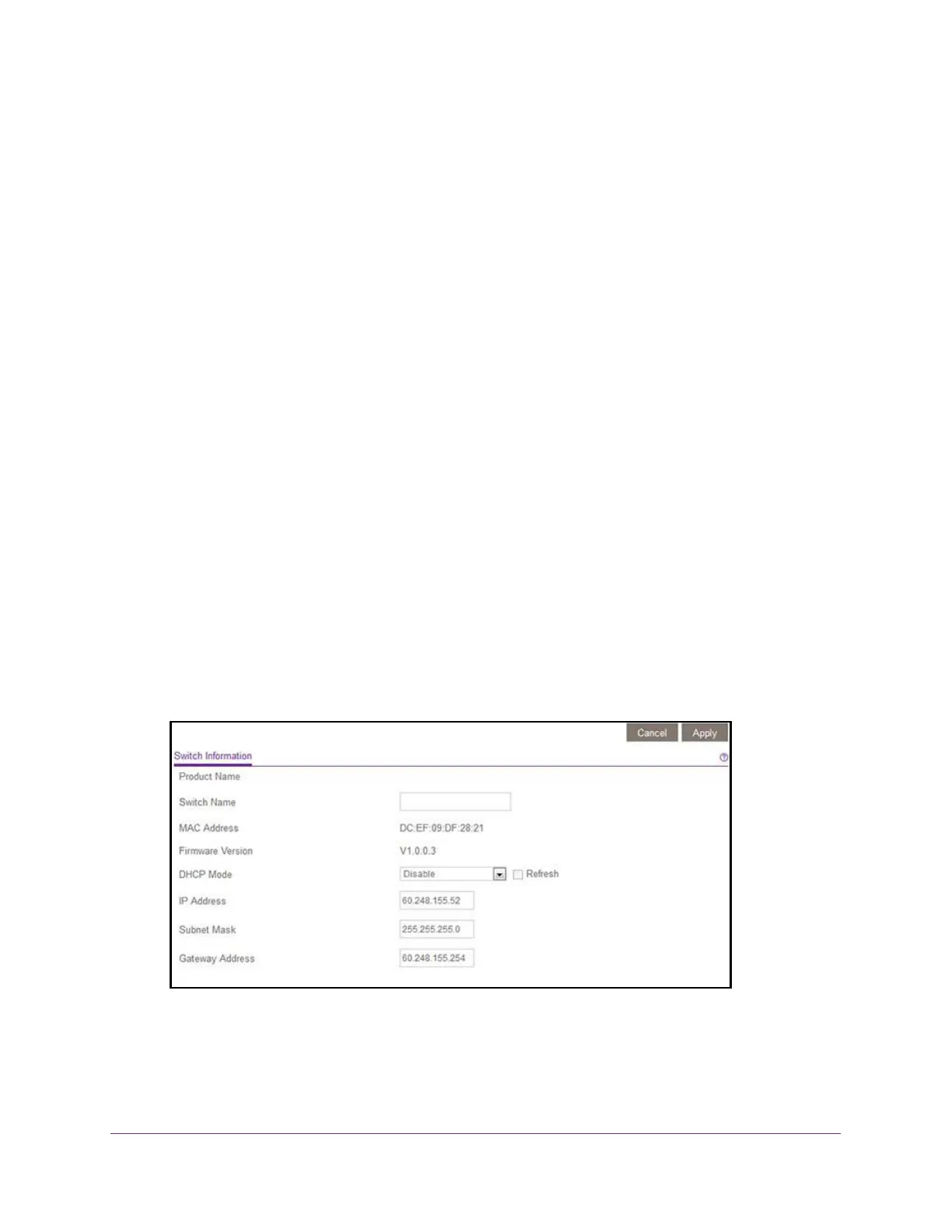

Note: To navigate to this page, select System > Management > Switch
Information.

NETGEAR ProSAFE GS105Ev2 Specifications

General

Model	GS105Ev2
Category	Switch
Ports	5
Port Type	Gigabit Ethernet
Form Factor	Desktop
VLAN Support	Yes
QoS	Yes
Jumbo Frame Support	Yes
Power Supply	External power adapter
Switching Capacity	10 Gbps
Forwarding Rate	7.4 Mpps
Management	Web-based management
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-20° to 70°C
Humidity	90% maximum relative humidity, noncondensing
Weight	0.3 kg
