Getting Started Using FirstGear for the Model RT328 ISDN Router
4-6 Quick Configuration for Internet Access
• Your IP address is dynamically assigned.
You must use the NAT feature of your Model RT328 router. The Assigned IP Address field
is disabled.
After choosing and following one set of instructions, select the Next>> button at the bottom of the
screen. The Quick Configuration Call Profile Screen, as illustrated in Figure
4-4, is displayed.
Call Profile
The third screen in the Quick Configuration procedure is the Call Profile screen, as illustrated in
Figure
4-4.

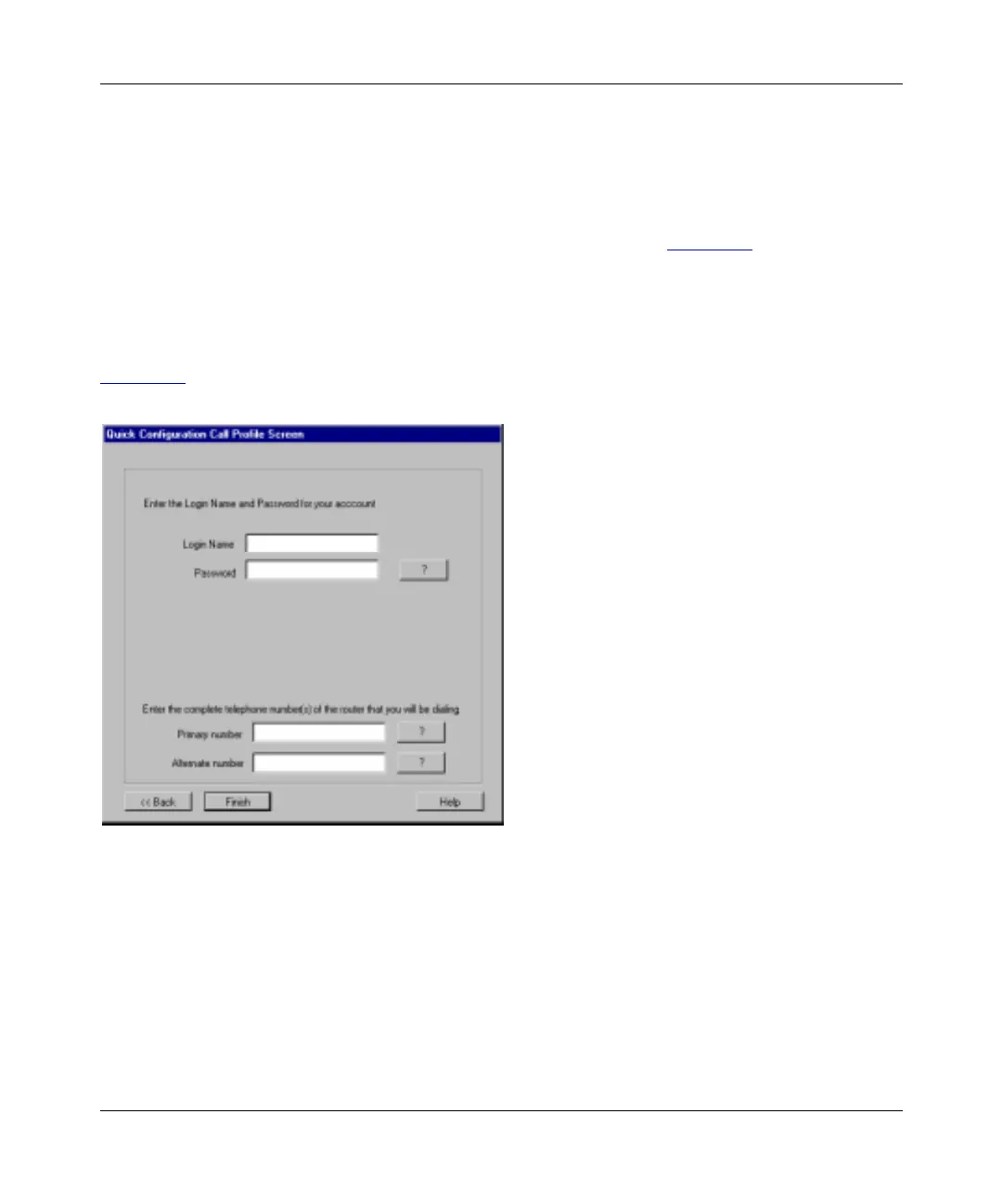

Figure 4-4. Quick Configuration Call Profile Screen
To configure the Call Profile Screen to dial your ISP, follow these steps:
1. Enter the login name (given to you by your ISP) in the Login Name field.
This field is case sensitive. This name is also assigned as the router name, truncated to eight
characters if necessary.
RT328.BK Page 6 Wednesday, August 6, 1997 11:14 AM
