NETGEAR WGU624 User Manual

Reference Manual for the Double 108 Mbps Wireless Firewall Router WGU624
Connecting the Router to the Internet 3-7
M-10153-01

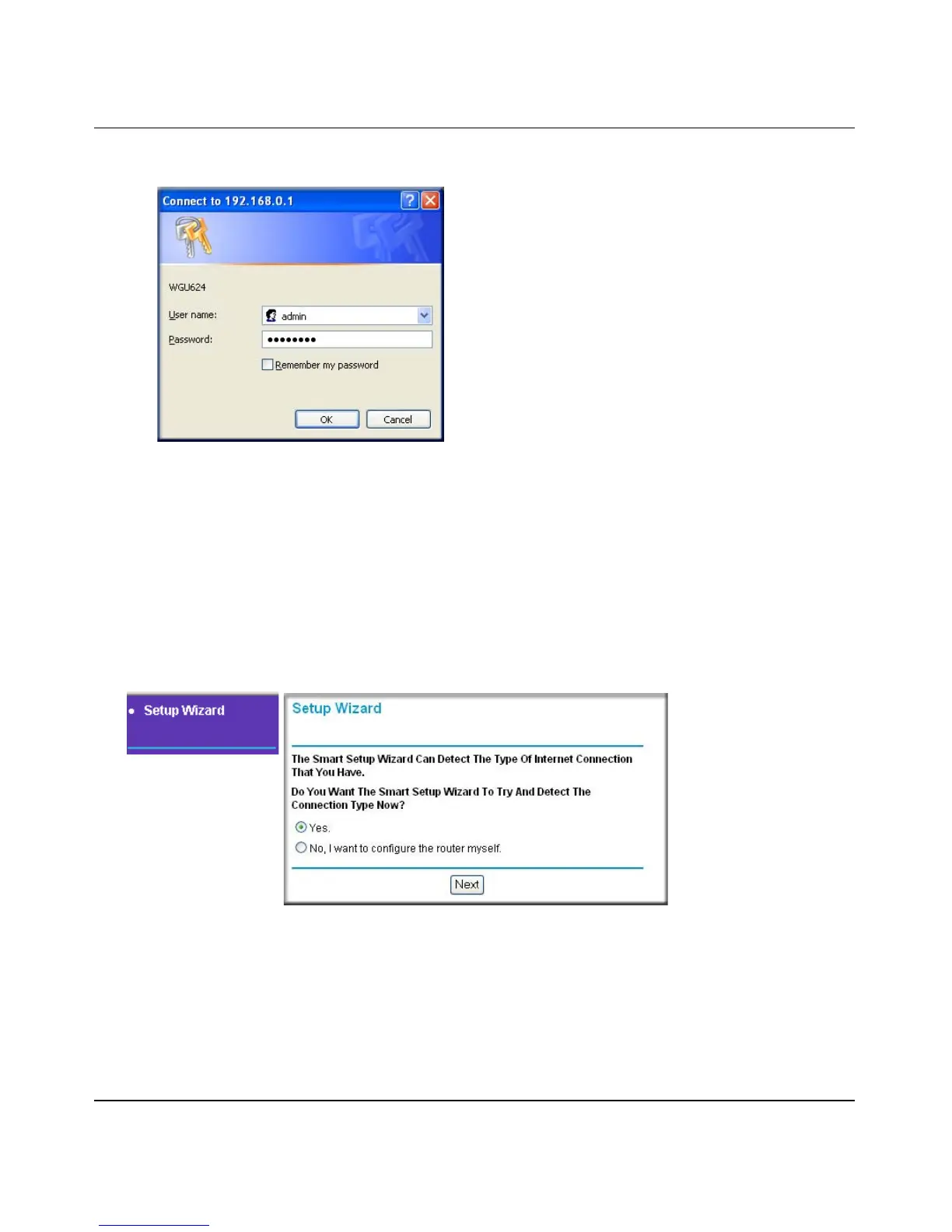

The login window is displayed below:
Figure 3-4: Login window
c.
Click OK.
Note: If you cannot connect to the wireless router, verify that your cables are connected
correctly, that the router is powered on. Verify that your computer is set to obtain the both IP
and DSN server addresses automatically, which is usually so. For help with this, see the
tutorials on the Resource CD.
4. C
ONNECT TO THE INTERNET
Figure 3-5: Setup Smart Wizard
a.
You are now connected to the router. If you do not see the menu above, click the Setup
Smart Wizard link on the upper left of the main menu.

NETGEAR WGU624 Specifications

Power

power adapter voltage	5V
power adapter current	2.8 A

Networking and Connectivity

network standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11a
ports	Five10/100 (1 Internet, & 4 LAN) ports
operating frequencies	2.4 GHz and 5.0 GHz

Weight and Dimensions

dimensions	6.9 x 1.1 x 4.7 in (175.3 x 27.94 x 119.4 mm)
weight	.7 lbs (.3 kg)
max range (indoor)	400 ft
