Note: If you cannot select Add WPS Client, check to see if WPS is selected in the
Wireless Settings screen. WEP is not compatible with WPS.
Wireless-N 150 ADSL2+ Modem Router DGN1000 User Manual
Configuring Your Wireless Network and Security Settings 2-15
v1.1, January 2010
3. Click Next. The screen changes to allow you to select the method for adding the WPS client.
4. Select the method for adding the WPS client. A WPS client can be added using the Push
Button method or the PIN method.
• Using the Push Button. This is the preferred method. (See Figure 2-5 on page 2-15.)
– Select the Push Button radio box and either press the WPS Push Button on the side of
the wireless modem router or click the soft WPS Push Button on the screen (as shown
below).
– The wireless modem router will attempt to communicate with the client; you have 2
minutes to enable WPS from the client device using the client’s WPS networking
utility.
:

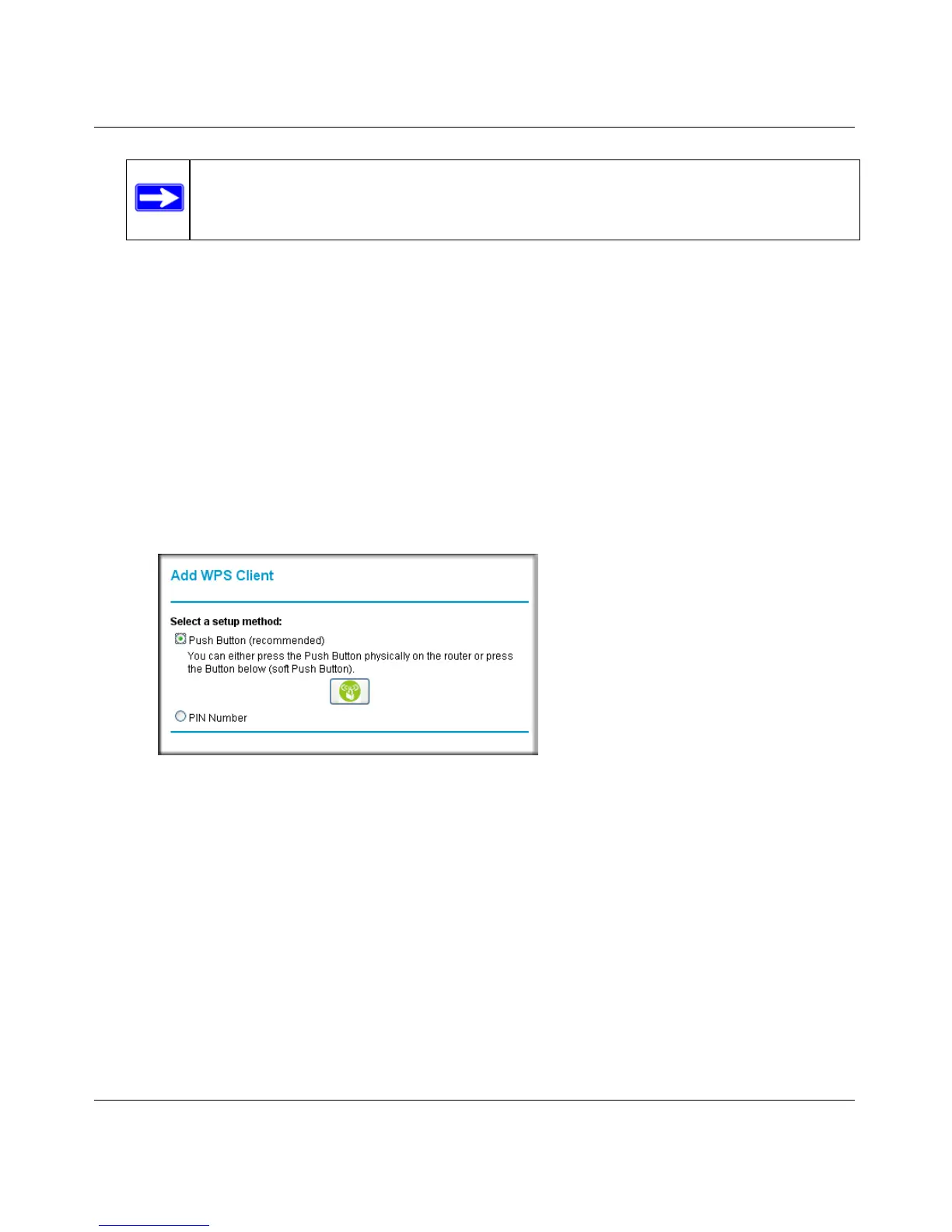

Figure 2-5
• Entering a PIN. If you want to use the PIN method, select the PIN radio box. A screen
similar to the one shown below displays.
– Go to your wireless client and, from the client’s WPS utility, obtain the wireless
client’s security PIN, or follow the client’s WPS utility instructions to generate a
security PIN.
– Then, enter this PIN in the Enter Client’s PIN field provided on the wireless modem
router and click Apply. You have 4 minutes to enable WPS on the router using this
method.
