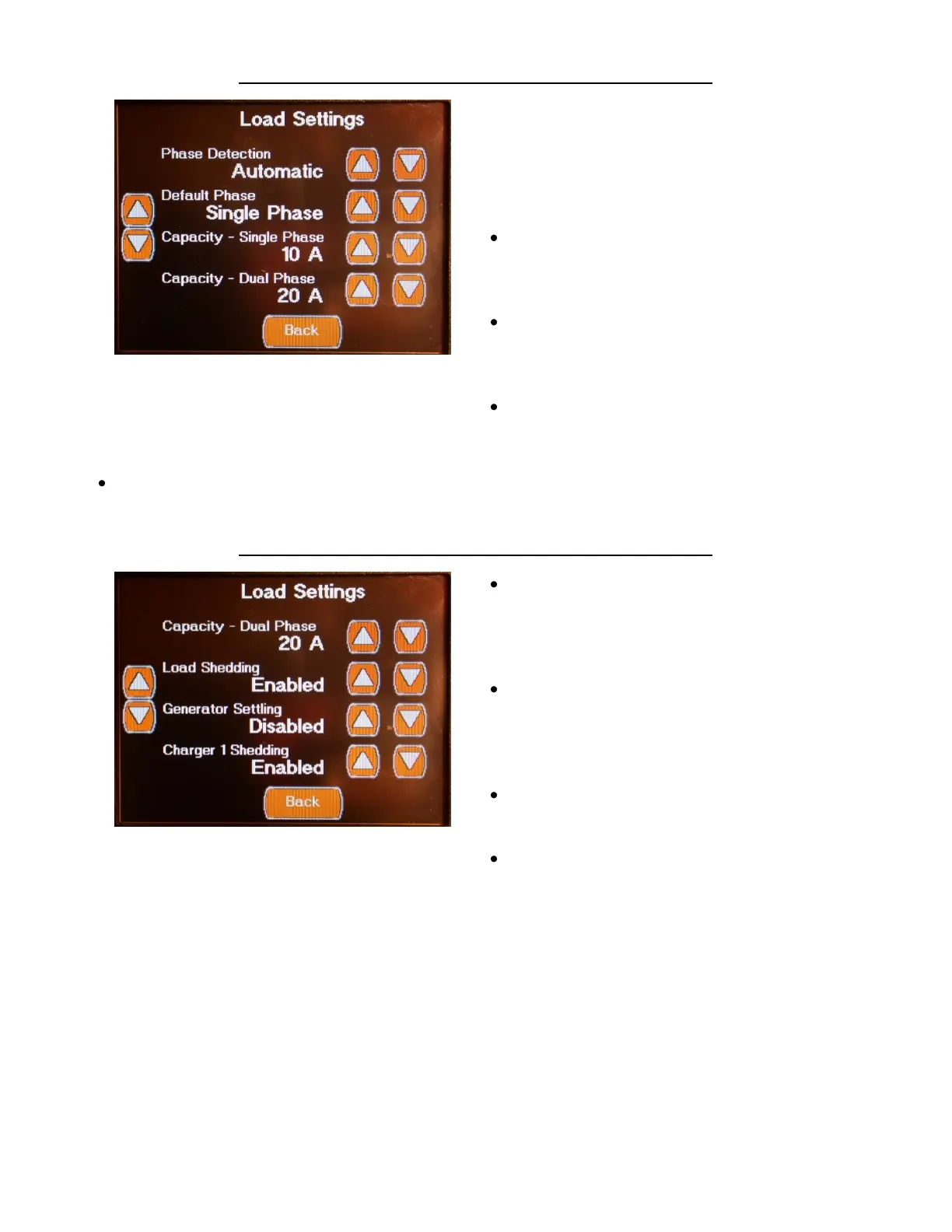

AC POWER SCREENS LOAD SETTING SCREEN 1
The first Load Setting screen configures the
following settings:
Phase Detection Manual / Automatic
Set to Manual for standard Transfer Switch.
Set to Automatic for RV-C Transfer Switch.
A RV-C Transfer Switch has the capability of
automatically detecting Dual Phase (240 VAC)
50 Amp AC power based on the available AC
power source.
Default Phase Single
Phase / Dual Phase
Selects the default Phase setting for the Load
Shedding function.
Capacity - Single Phase
(Amperage)
This setting sets the Load Shedding Amperage
value for the Single Phase selection.
Capacity Dual Phase (Amperage)
This setting sets the Load Shedding Amperage
value for the Dual Phase selection. This
should normally be set 50 Amps.
AC POWER SCREENS LOAD SETTING SCREEN 2
The second Load Setting screen configures the
following settings:
Capacity - Dual Phase
(Amperage)
This setting sets the Load Shedding Amperage
value for the Dual Phase selection. This
should normally be set 50 Amps.
Load Shedding Enabled / Disabled
Load Shedding Enabled allows the control
system to shed (turn off) system configured
AC powered devices in order to maintain a
maximum phase capacity AC amperage usage.
Generator Settling Enabled / Disabled
This setting should be set to Enabled for
proper Auto Gen operation.
Charger 1 Shedding Enabled / Disabled
This setting determines if the Battery Charger
should be shed (turned off) with the other
Load Shedding devices.
To Next Page
