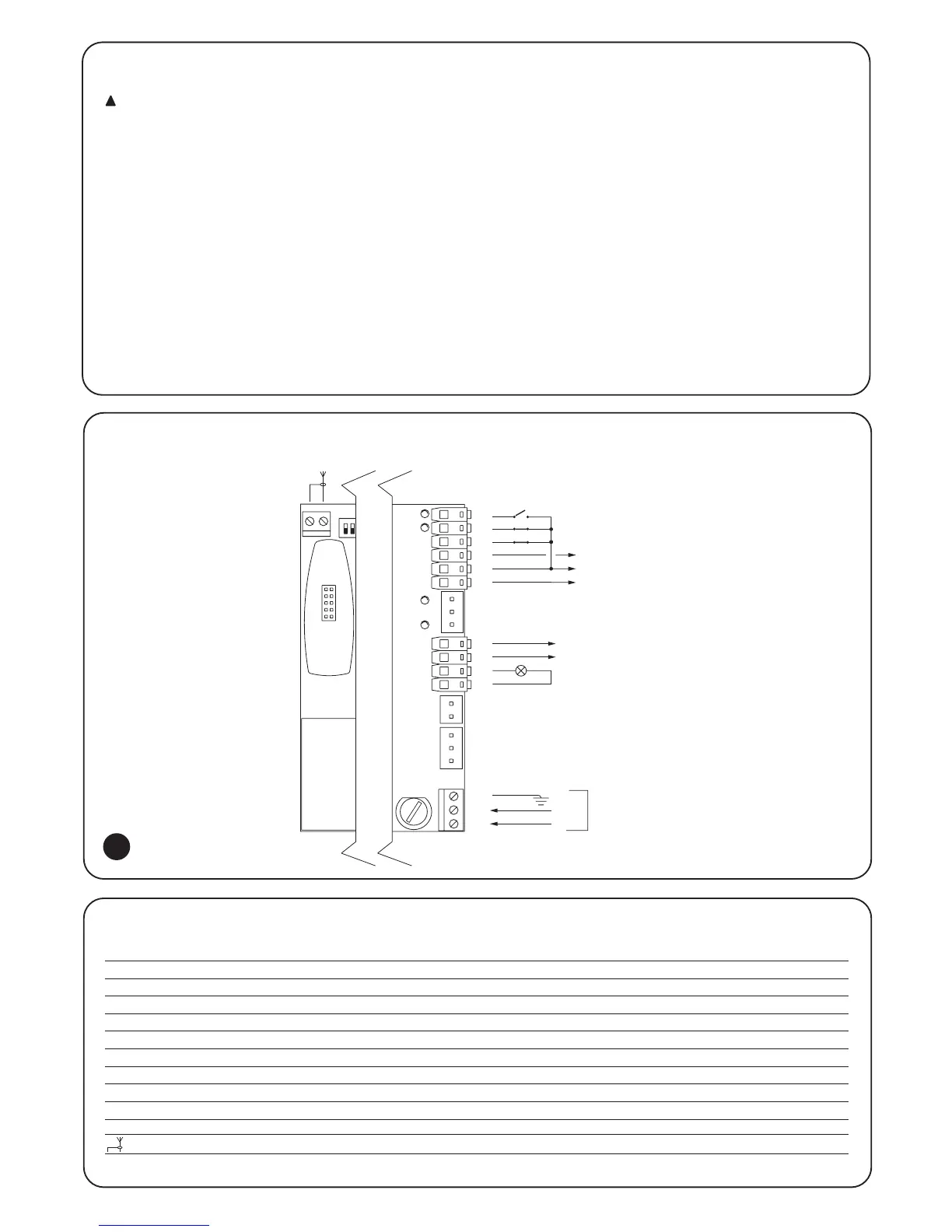

2.2.1) Electrical diagram
POWER LINE
P.P.
PHOTOCELL
FCA
FCC
PHOTOTEST
24 Vac
0 Vac
8
GND
LUX
Max 40W
AERIAL
CELL
P.P.
ALT
11
10
9
12
13
COURTESY
LIGHT
4
5
6
L
3
1
2
7
N
RADIO
2.2) Electrical connections
To safeguard the operator and avoid damaging the
components while you are wiring or plugging in the
various cards: under no circumstances may the unit be
electrically powered.
• Power the unit using a 3 x 1,5mm
2
cable: should the distance
between the unit and the earth connection exceed 30m, install
an earth plate near the unit.
• Use wires with a minimum cross-section of 0.25mm
2
to connect
low voltage safety circuits.
• Use shielded wires if the length exceeds 30m and only connect
the earth braid to the control unit side.
• Do not make connections to cables in buried boxes even if they
are completely watertight.
• If the inputs of the Normally Closed (NC) contacts are not used
they should be jumped with the “24V common” terminal except
for the photocell inputs if the phototest function is enabled, for
further information please see the “Phototest” paragraph.
• If there is more than one (NC) contact on the same input, they
must be connected in SERIES.
• If the inputs of the Normally Open (NA) contacts are not used
they should be left free.
• If there is more than one (NA) contact on the same input, they
must be connected in Parallel.
• The contacts must be mechanical and potential-free; no stage
connections are allowed, such as those defined as "PNP",
"NPN", "Open Collector" etc.
!
2.2.2) Description of connections
A brief description of the possible control unit output connections follows.
Terminals Functions Description
1-2-3 : Power input = Mains power Line
4 - 5 : Flashing light = Output for connecting flashing light to mains voltage (Max. 40W)
6 – 7 : Courtesy light = Clean contact output for courtesy light connection ( Max. 5A)
8 - 9 : 24 Vac = 24Vac output to 24Vac +/- 25% services (Max. 150mA)
9 : Common = Common for all inputs
10 : Phototest = Phototest output (“TX” power supply to photocells) Max. 50mA
11 : Stop = Input with “Stop” function (Stop and short reverse run)
12 : Photo = Input for safety devices
13 : Step by step (PP) = Input for cyclic functioning (“Open” – “Stop” – “Close” – “Stop”)
: Aerial = Input for the radio receiver aerial
3
