Chapter 5 Laser Unit
5.2 C-LU2 Two-laser Unit, and C-LU3 Three-laser Unit
1-108
4. For the three-laser unit, repeat the procedure above to adjust another He-Ne laser.

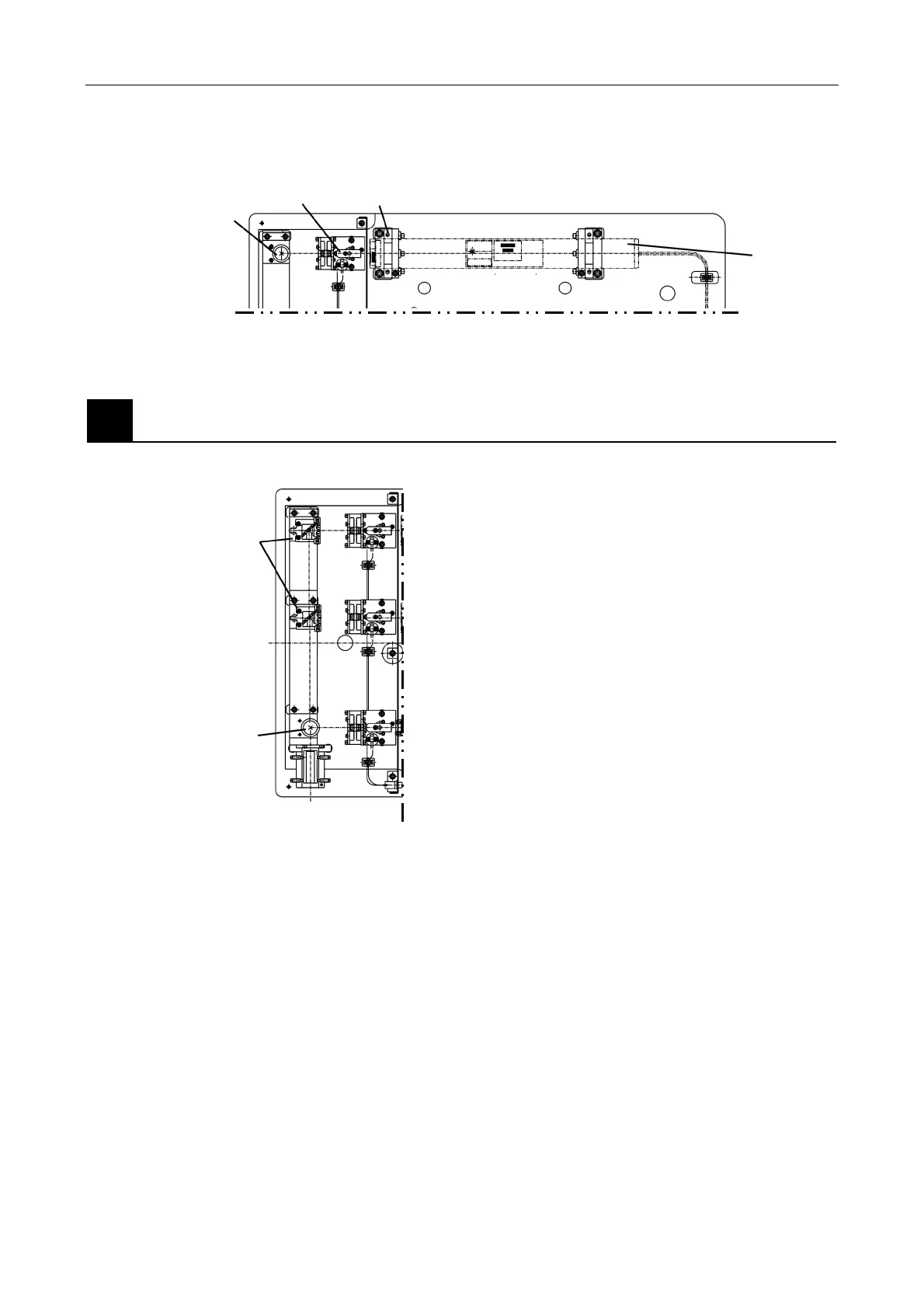

Figure 5.2-9
3
Installing the dichroic mirror for the He-Ne laser
Figure 5.2-10
As shown in Figure 5.2-10, install the dichroic mirror for
each He-Ne laser. (Do not attach the dichroic mirror for the
argon laser.)
• For the three-laser unit, the dichroic mirror for the
He-Ne laser located farthest from that for the argon
laser has a total reflection surface, while the middle
dichroic mirror has a green reflection surface.
• For the two-laser unit, the dichroic mirror for the He-Ne
laser located farthest from that for the argon laser has a
total reflection surface.
He-Ne2
Dichroic mirror
centering tool
Shutter
djust only the mounting hardware at the front
to align the laser beam to the centering tool.
djust the dichroic
mirror to align with
the centering tool.
Dichroic mirror
centering tool
To Next Page
