Nikon Eclipse TI-TIRF-E - TI-TIRF-E Motorized TIRF Illuminator Unit - for N-STORM Microscopy

Chapter 1 System Configurations and Part Names
1.3 Safety Labels and Openings
1-38
1.3.13 TI-TIRF-E Motorized TIRF Illuminator Unit ― For N-STORM Microscopy
Make sure that the labels are affixed in place.

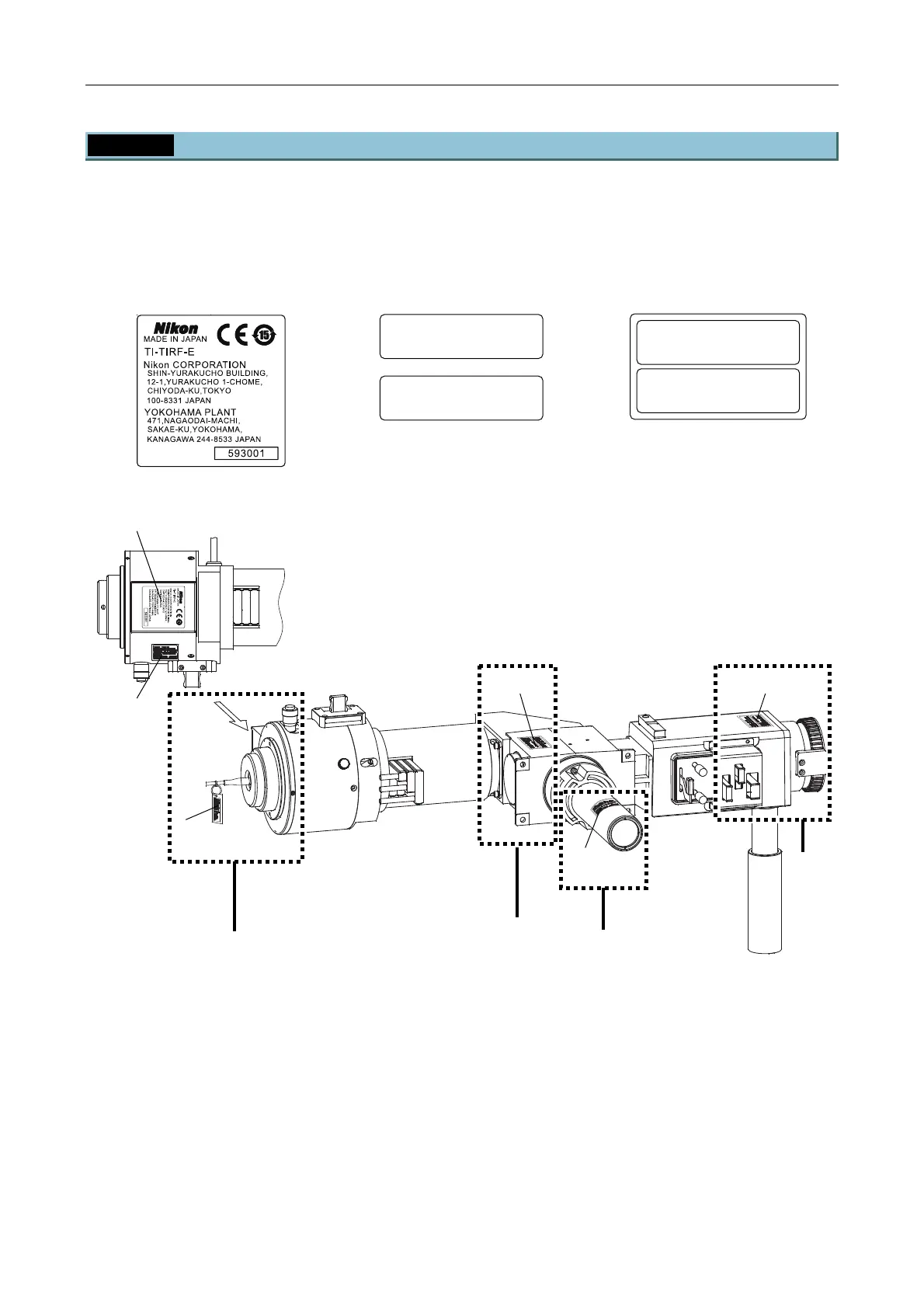

This system has four openings, A to D, as shown below. Make sure that the following labels are affixed near
each of the openings.
(3) Model name and serial
number label
(5) IEC caution label -
Class 3B area
(7) IEC caution label -
Class 3B area
CAUTION – CLASS 3B
LASER RADIATION WHEN OPEN
AVOID EXPOSURE TO THE BEAM
VORSICHT
– LASERSTRAHLUNG
KLASSE 3B,
WENN ABDECKUNG GEÖFFNET
NICHT DEM STRAHL AUSSETZEN
CAUTION – CLASS 3B
LASER RADIATION WHEN OPEN
AVOID EXPOSURE TO THE BEAM
VORSICHT
– LASERSTRAHLUNG
KLASSE 3B,
WENN ABDECKUNG GEÖFFNET
NICHT DEM STRAHL AUSSETZEN
Figure 1.3-15
(3)
(7)
(5)
(7)(7)
A
D
C
B
Back view
(7)
