Nikon Eclipse TI-TIRF-E User Manual

Chapter 5 Laser Unit
5.3 C-LU3EX Three-laser Unit EX
1-155
5.3.8 Attaching the Sheet Metal Cover

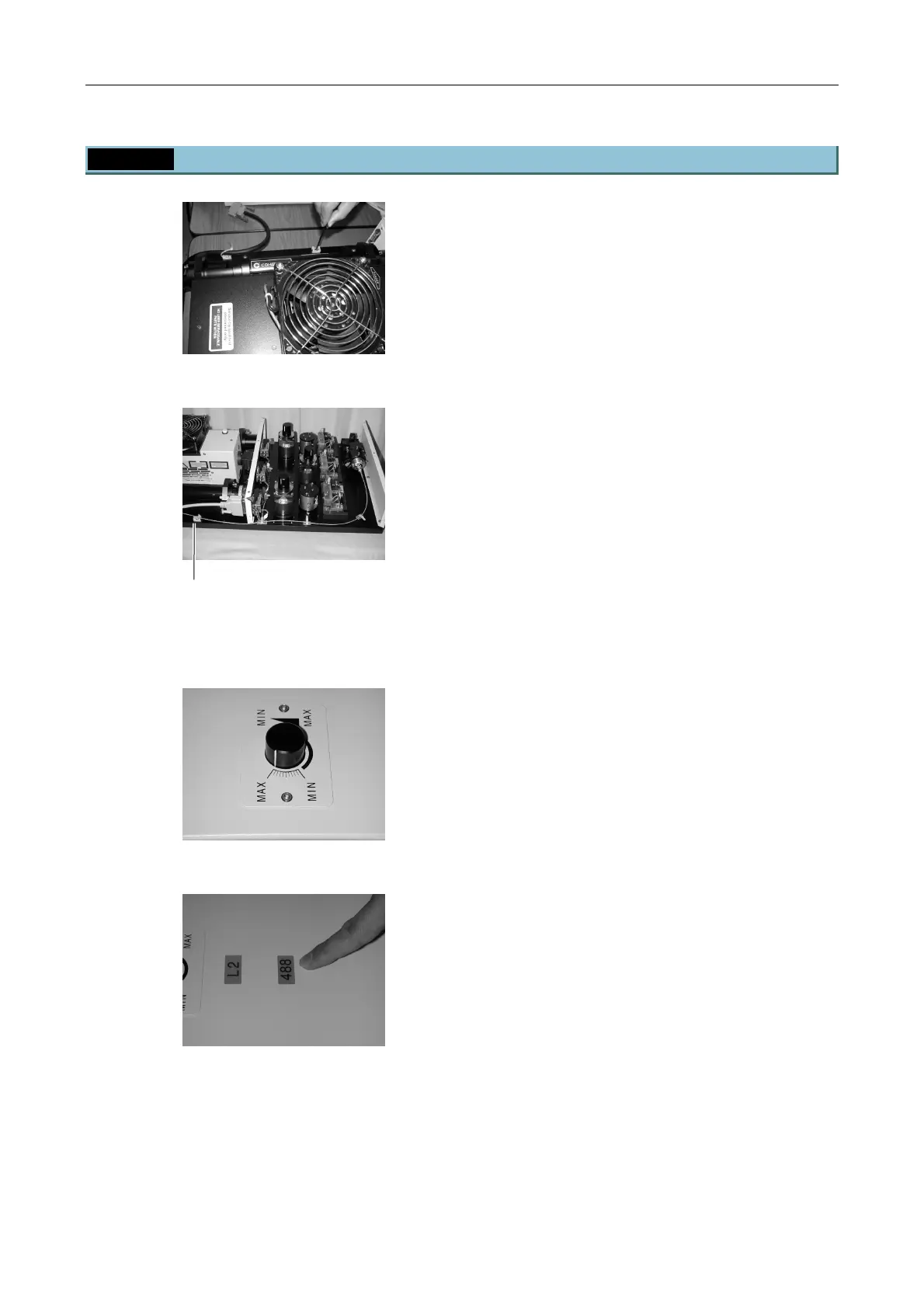

Figure 5.3-79
1. Attach four harness bands to the laser unit mount.
Figure 5.3-80
2. Secure the cables and fibers with harness bands.
3. Attach the sheet metal cover using the six screws.
Figure 5.3-81
4. Align the knob with the control range indicator for the
light control knob.
Figure 5.3-82
5. Affix the label provided corresponding to the laser
wavelength used.
This completes the laser adjustment.
