1.1 Overview
1-12
1.1.3 Motorized TIRF Illuminator Unit, LU4A, N-STORM, and Ti-E System
Overview

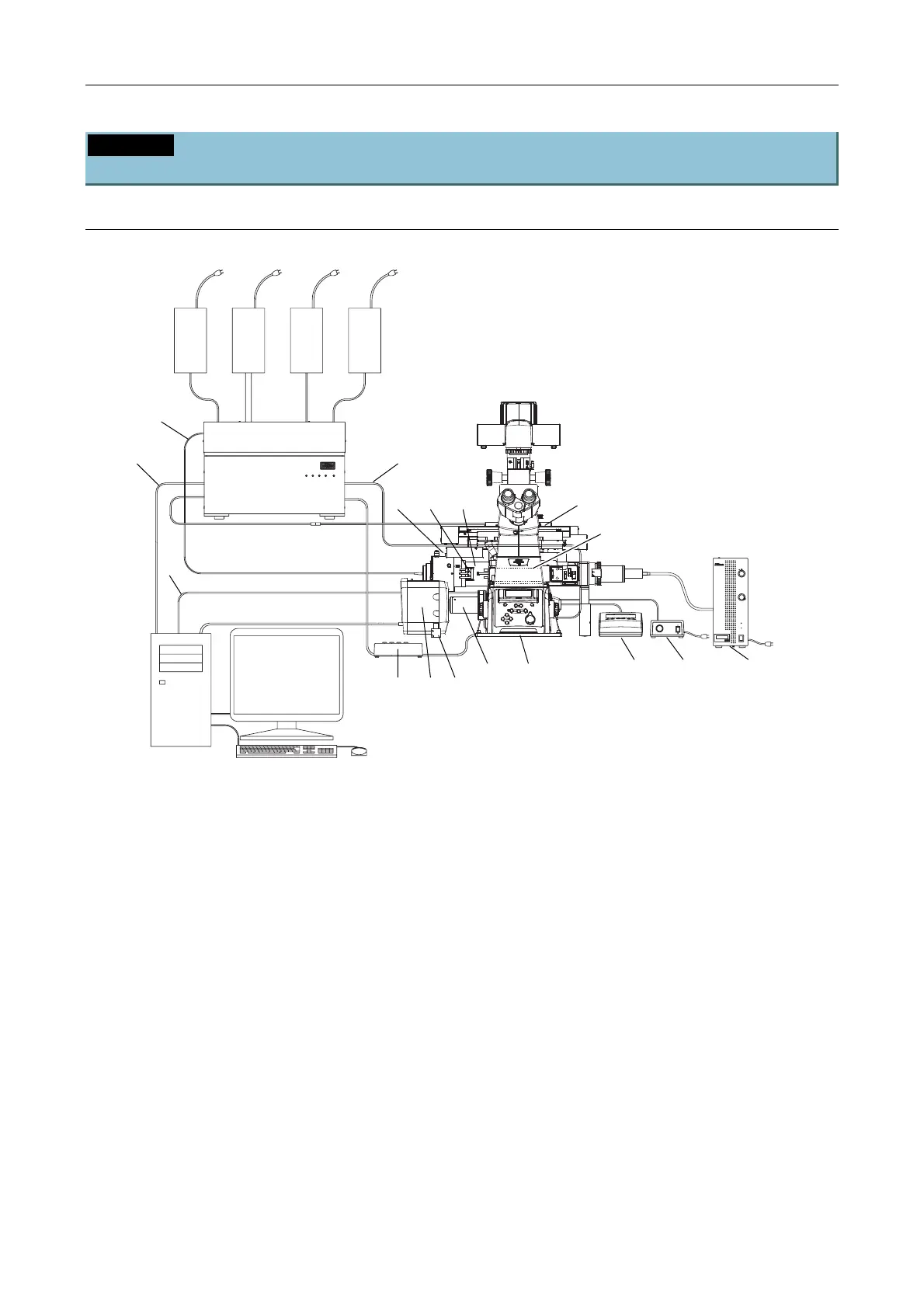

Motorized TIRF illuminator unit, LU4A, N-STORM, and Ti-E system overview (front view)
(Standard configuration to use the Motorized TIRF illuminator unit)
L4
L3
L2
L1
POWER
Figure 1.1-9
* For details, see Section 8.1, “Overall Configuration,” in Chapter 8, “Specifications and Performance.”
(1) Power supply devices for the laser devices
(2) Laser unit (LU4A)
(3) PC
(4) Optical fiber
(5) TI-LU4SU shutter unit LU4
(6) EM-CCD camera
(7) TI-FLC-E/HQ motor epi-fl filter turret
(8) Power supply device for the diascopic
illumination
(9) Hub controller A (with AC adapter)
(10) Motorized TIRF illuminator unit
(11) HG fiber light source
(12) Remote control pad
(13) Laser safety cover
(14) Interlock cable
(15) USB cable
(16) 3D-STORM port
(17) DSC support columns (2 pieces)
(18) Ti-E fixing plate
(19) STORM slider
(20) Lambda plate slider
(21) 405-nm laser adapter with ND
(See Figure 1.1-10 for the location.)
(22) 457-nm laser adapter with ND
(See Figure 1.1-10 for the location.)
(23) 561-nm laser adapter with ND
(See Figure 1.1-10 for the location.)
(1)
(5)
(10)
(13)
(3)
(2)
(15)
(6)
(8) (11)
(7)
(12)
(14)
(15)
(4)
(20)(19)
(17)
(16) (18)
