Nikon Eclipse TI-TIRF-E User Manual

Chapter 1 System Configurations and Part Names
1.1 Overview
1-13

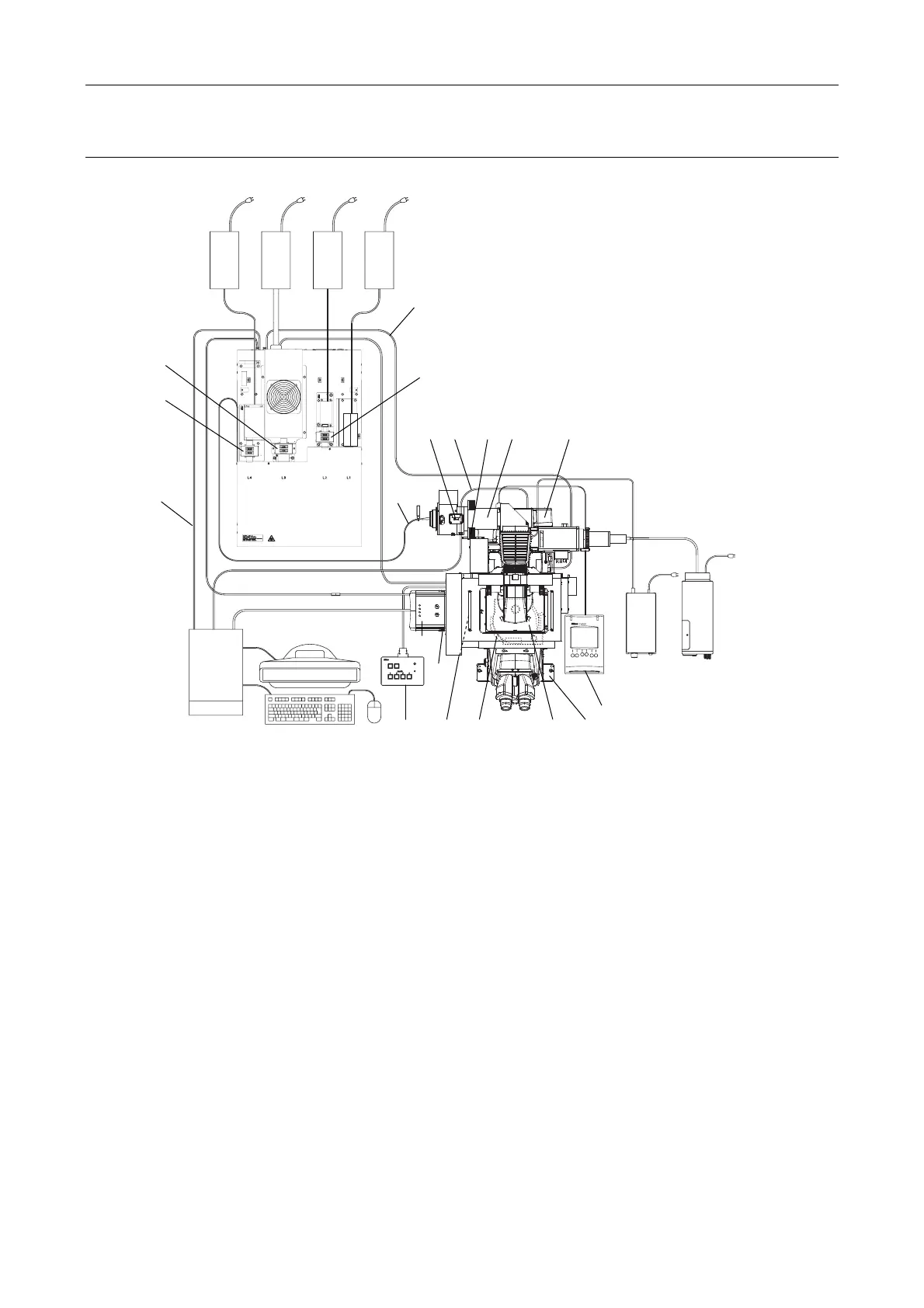

Motorized TIRF illuminator unit, LU4A, N-STORM, and Ti-E system overview (top view)
(Standard configuration to use the Motorized TIRF illuminator unit)
POWER
TI-LU4SU
EMISSION
LASER
Fix the laser unit with
four blocks during
transportation.
CAUTION
–
CLASS 3B
LASER RADIATION WHEN OPEN AVOID EXPOSURE TO THE BEAM
CAUTION
–
CLASS 3B
LASER RADIATION WHEN OPEN AVOID EXPOSURE TO THE BEAM
Figure 1.1-10
* For details, see Section 8.1, “Overall Configuration,” in Chapter 8, “Specifications and Performance.”
(1) Power supply devices for the laser devices
(2) Laser unit (LU4A)
(3) PC
(4) Optical fiber
(5) TI-LU4SU shutter unit LU4
(6) EM-CCD camera
(7) TI-FLC-E/HQ motor epi-fl filter turret
(8) Power supply device for the diascopic
illumination
(9) Hub controller A (with AC adapter)
(10) Motorized TIRF illuminator unit
(11) HG fiber light source
(12) Remote control pad
(13) Laser safety cover
(14) Interlock cable
(15) USB cable
(16) 3D-STORM port
(17) DSC support columns (2 pieces)
(18) Ti-E fixing plate
(19) STORM slider
(20) Lambda plate slider
(21) 405-nm laser adapter with ND
(22) 457-nm laser adapter with ND
(23) 561-nm laser adapter with ND
(1)
(4)
(6)
(7)
(10)
(3)
(2)
(5)
(8)
(11)
(
9
)
(12)
(14)
(15)
(15)
(20)(19)
(16) (13) (18)
(17)
(21)
(22)
(23)
