Chapter 2 Preparations
2.1 Check Items and Tools
1-68
2.1.2 Tools
The following are the tools required in the setup procedure. Before starting, make sure you have the
following tools required to set up the system.
General tools
• Allen wrench (mm, inch)
• Phillips screwdriver
• Fluorescent slide specimen (you can also use an HE-stained specimen)

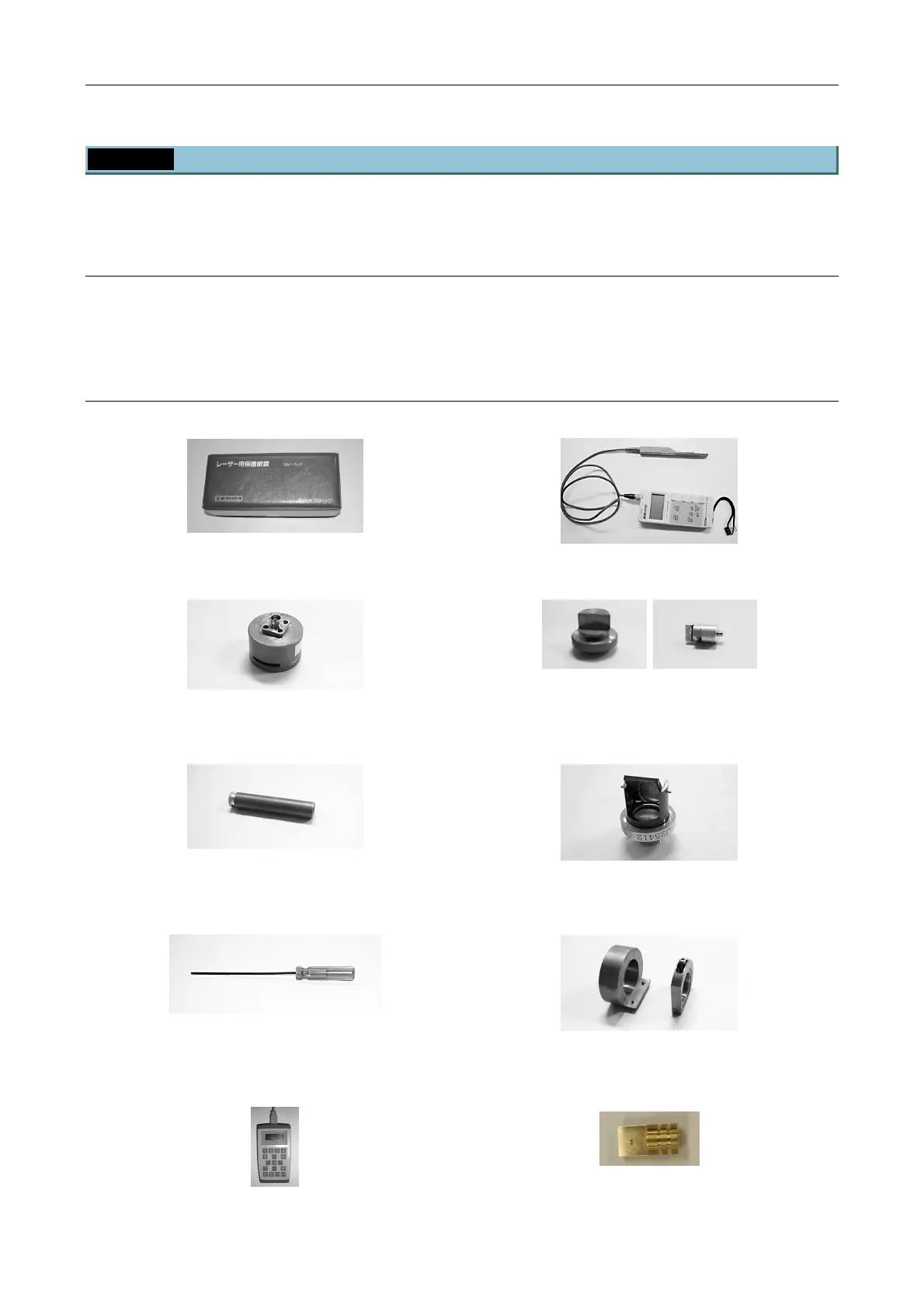

Special tools
• Laser-protection goggles • Calibrated power meter
Figure 2.1-1 Figure 2.1-2
• Power measurement attachment • Dichroic mirror centering tool
Figure 2.1-3 Figure 2.1-4
• Coupler-centering tool • Centering tool for visual observations and mirror for
observing centering tool
Figure 2.1-5 Figure 2.1-6
• Nikon 2-piece M4 screwdriver set
(with red handles)
• Polarization orientation adjustment tool and
polarizer-equipped tool
Figure 2.1-7 Figure 2.1-8
• AOTF driver remote controller (for maintenance) • Centering tool (left: for LU4A)
* Two pieces of a type are required.
Figure 2.1-9 Figure 2.1-10
