Nikon Eclipse TI-TIRF-E User Manual

Chapter 1 System Configurations and Part Names
1.4 Name of Each Part
2-14
1.4 Name of Each Part

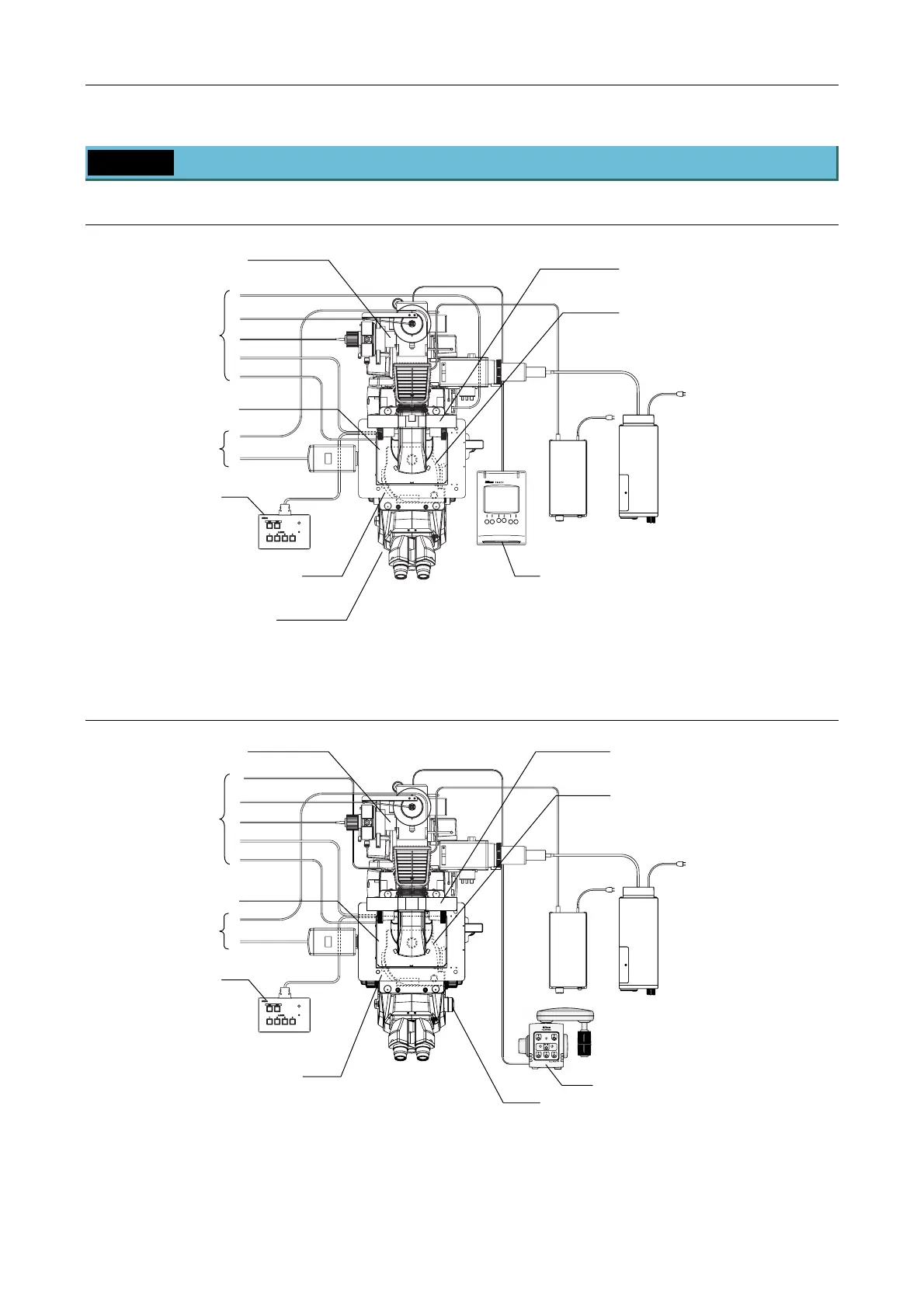

TIRF-PAU illuminator and Ti-E system
LASER
EMISSION
TI-LU4SU
POWER
Figure 1.4-1
TIRF-PAU illuminator and Ti-U system
LASER
EMISSION
TI-LU4SU
POWER
Z Speed
FL Block 1 OBJ
PFS
L100/E100
INTSL
XY Speed
Figure 1.4-2
TI-TIRF-PAU
TIRF-PAU illuminato
r
To laser unit
Laser safety cove
r
To PC
TI-LU4SU
shutter unit LU4
Filter cube cover retaining plate
(part of laser safety kit)
Filter slider cover
(part of laser safety kit)
TI-FLC-E or TI-FLC-E/HQ
motorized epi-fl filter turret, with
Protection plate (part of laser safety kit)
TI-RCP remote control pad
Optical path selector switch
(front panel)
TI-TIRF-PAU
TIRF-PAU illuminato
r
To laser unit
Laser safety cove
r
To PC
TI-LU4SU
shutter unit LU4
Filter cube cover retaining plate
(part of laser safety kit)
Filter slider cover
(part of laser safety kit)
TI-FLC-E or TI-FLC-E/HQ
motorized epi-fl filter turret, with
Protection plate (part of laser safety kit)
Ergo controller
Optical path selector knob
