Chapter 1 System Configurations and Part Names
1.1 Overview
1-8
1.1.2 Motorized TIRF Illuminator Unit and Ti-E System Overview

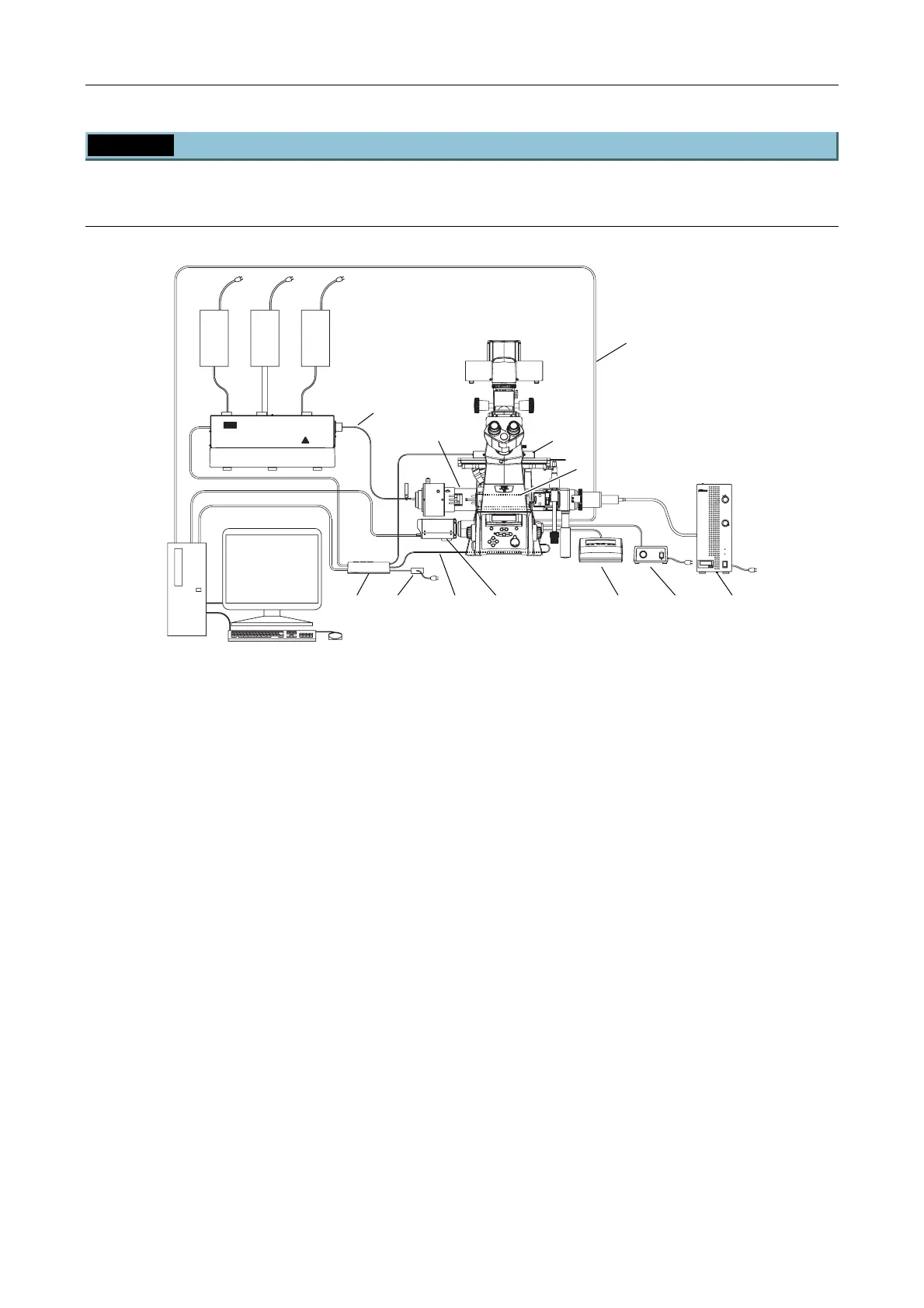

Motorized TIRF illuminator unit and Ti-E system overview (front view):
When used in combination with two-laser or three-laser unit
(Standard configuration to use the motorized TIRF illuminator unit)
CAUTION
–
CLASS 3B
LASER RADIATION WHEN OPEN AVOID EXPOSURE TO THE BEAM CAUTION
–
CLASS 3B
LASER RADIATION WHEN OPEN AVOID EXPOSURE TO THE BEAM
Figure 1.1-5
* For details, see Section 8.1, “Overall Configuration,” in Chapter 8, “Specifications and Performance.”
(1) Power supply devices for the laser devices
(2) Laser unit (C-LU2, C-LU3, C-LU3EX)
(3) PC
(4) Optical fiber
(5) TI-LUSU shutter unit
(6) AC adapter for the shutter unit
(7) TV camera (video camera)
(8) TI-FLC-E/HQ motor epi-fl filter turret
(9) Power supply device for the diascopic illumination
(10) Hub controller A (with AC adapter)
(11) Motorized TIRF illuminator unit
(12) HG fiber light source
(13) Remote control pad
(14) Laser safety cover
(15) Interlock cable
(16) USB cable
(1)
(5) (7)
(11)
(3)
(2)
(4)
(6) (9) (12)
(8)
(13)
(14)
(15)
(16)
