2-3
System Configurations and Part Names
1
1.1 Overview
The following illustrates the standard configuration to use the TIRF-PAU illuminator in combination with the
Ti-E. You can also refer to the following when using Ti-U instead of Ti-E as the configuration is substantially
the same except the microscope.

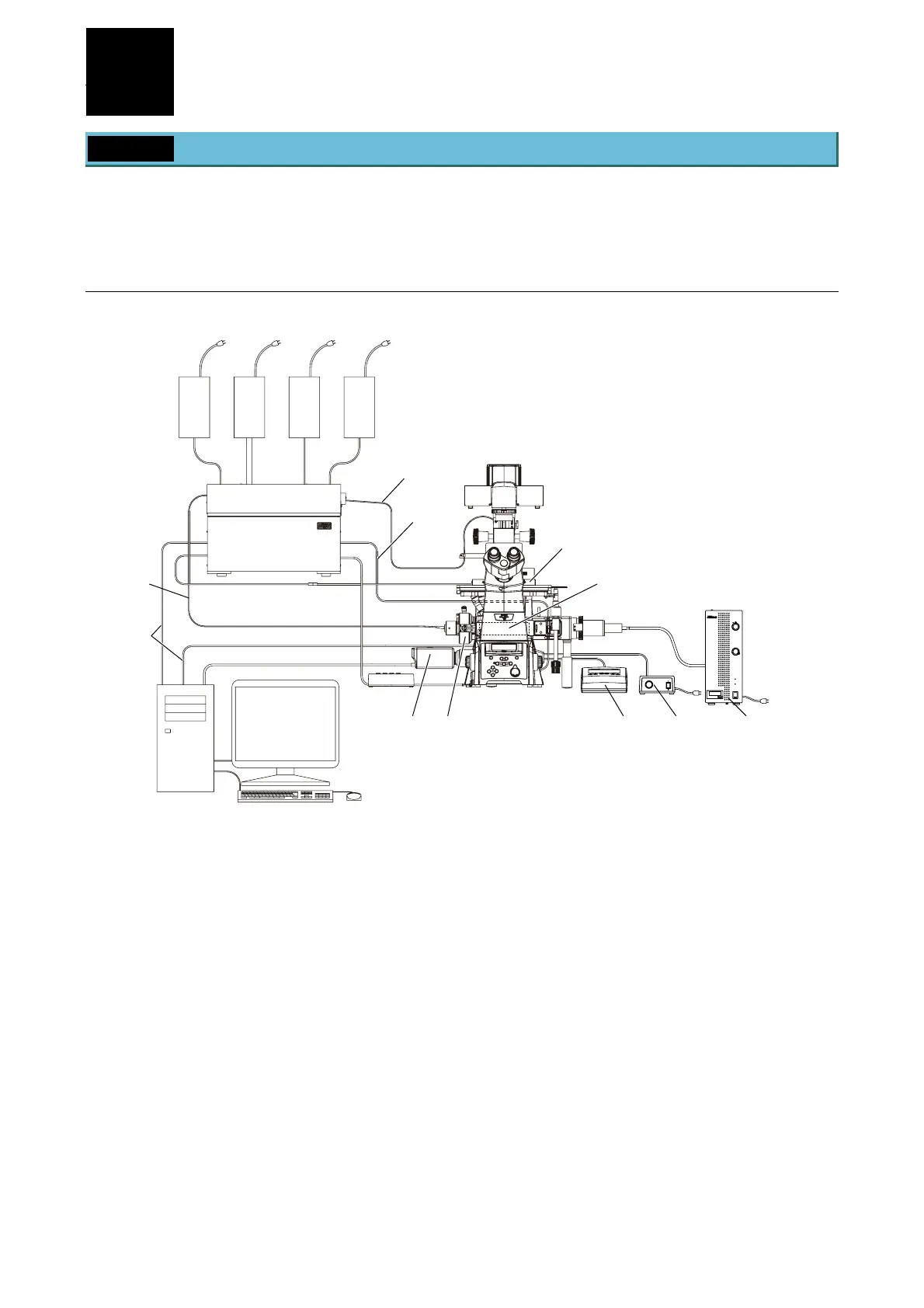

TIRF-PAU illuminator and Ti-E system overview (front view)
(Standard configuration to use the TIRF-PAU illuminator)
POWER
L1
L2
L3
L4
Figure 1.1-1
* For details, see Section 8.1, “Overall Configuration,” in Chapter 8, “Specifications and Performance.”
(1) Power supply devices for the laser devices
(2) LU4A four-laser module A (with LU4-B5
Beamsplitter 50/50 installed)
(3) PC
(4) Optical fiber (for TIRF)
(5) Optical fiber (for PAU)
(6) TI-LU4SU shutter unit LU4
(7) TV camera (video camera)
(8) TI-FLC-E/HQ motor epi-fl filter turret
(9) Power supply device for the diascopic
illumination
(10) Hub controller A
(on the microscope back, with AC adapter)
(11) TIRF-PAU illuminator
(12) HG fiber light source
(13) Remote control pad
(14) Laser safety cover
(15) Interlock cable
(16) USB cable
(1)
(2)
(4)
(7)
(6)
(9)
(3)
(12)
(14)
(8)
(13)
(15)
(11)
(5)
(16)
To Next Page
