Nikon Eclipse TI-TIRF-E User Manual

Chapter 1 System Configurations and Part Names
1.1 Overview
1-7

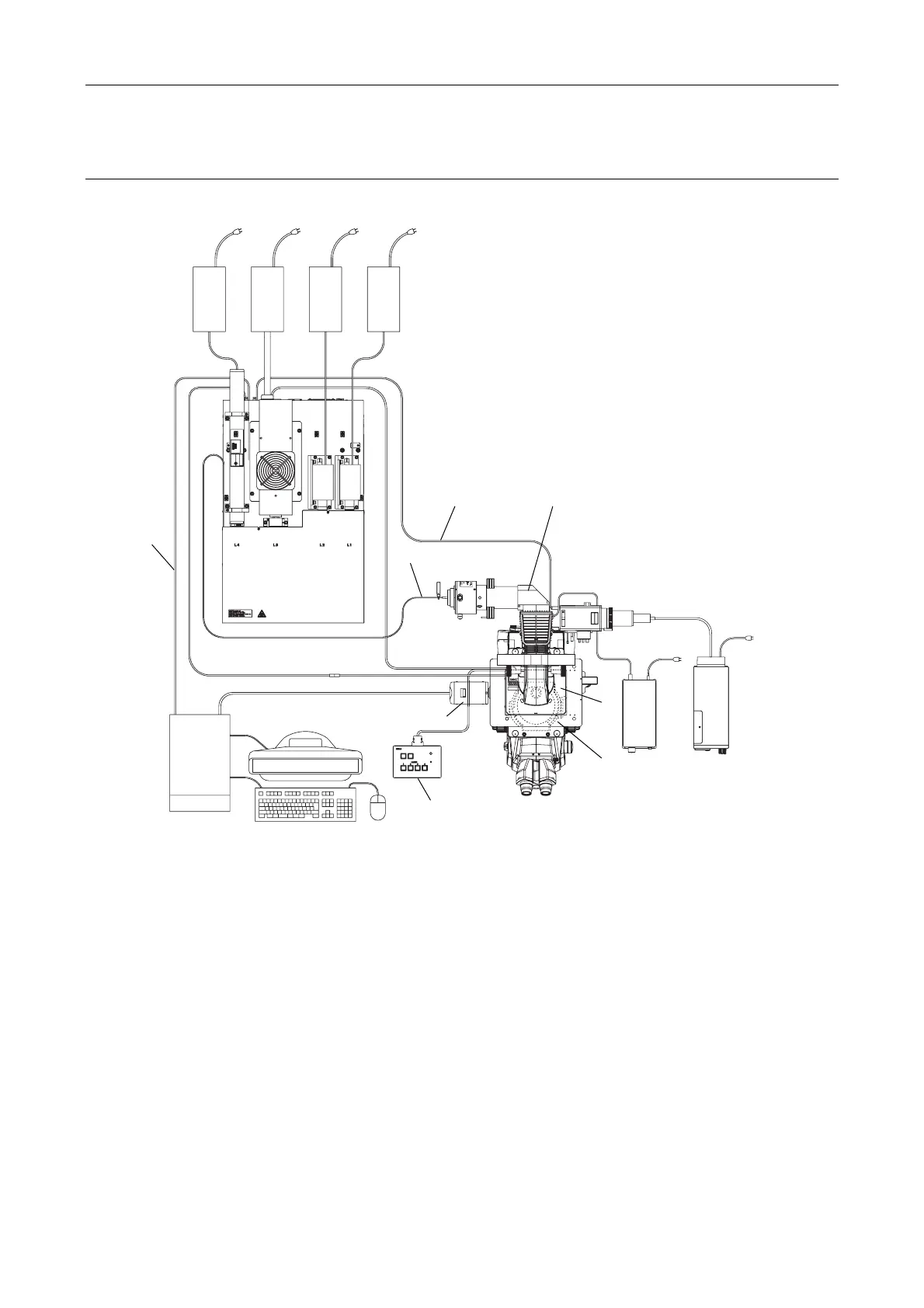

TIRF illuminator unit and Ti-U system overview (top view):
When used with four-laser module A
(Standard configuration to use the TIRF illuminator unit)
POWER
TI-LU4SU
EMISSION
LASER
CAUTION
–
CLASS 3B
LASER RADIATION WHEN OPEN AVOID EXPOSURE TO THE BEAM VORSICHT
–
LASERSTRAHLUNG
KLASSE 3B, WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETZEN
CAUTION
–
CLASS 3B
LASER RADIATION WHEN OPEN AVOID EXPOSURE TO THE BEAM
SER RADIATIO
OID EXPOSU
CLASS 3B LASE
AVOID EXPOSURE
LASER LIGHT IS EMITTE
FROM
OBJECTIVE APERT
Figure 1.1-4
* For details, see Section 8.1, “Overall Configuration,” in Chapter 8, “Specifications and Performance.”
(1) Power supply devices for the laser devices
(2) Laser unit (LU4A)
(3) PC
(4) Optical fiber
(5) TI-LU4SU shutter unit LU4
(6) TV camera (video camera)
(7) TI-FLC epi-fl filter turret
(8) Power supply device for the diascopic illumination
(9) TIRF illuminator unit
(10) HG fiber light source
(11) Laser safety cover
(12) Interlock cable
(13) USB cable
(1)
(4)
(6)
(7)
(9)
(3)
(2)
(5)
(8)
(10)
(
12
)
(11)
(13)
