Chapter 1 System Configurations and Part Names
1.1 Overview
1-6

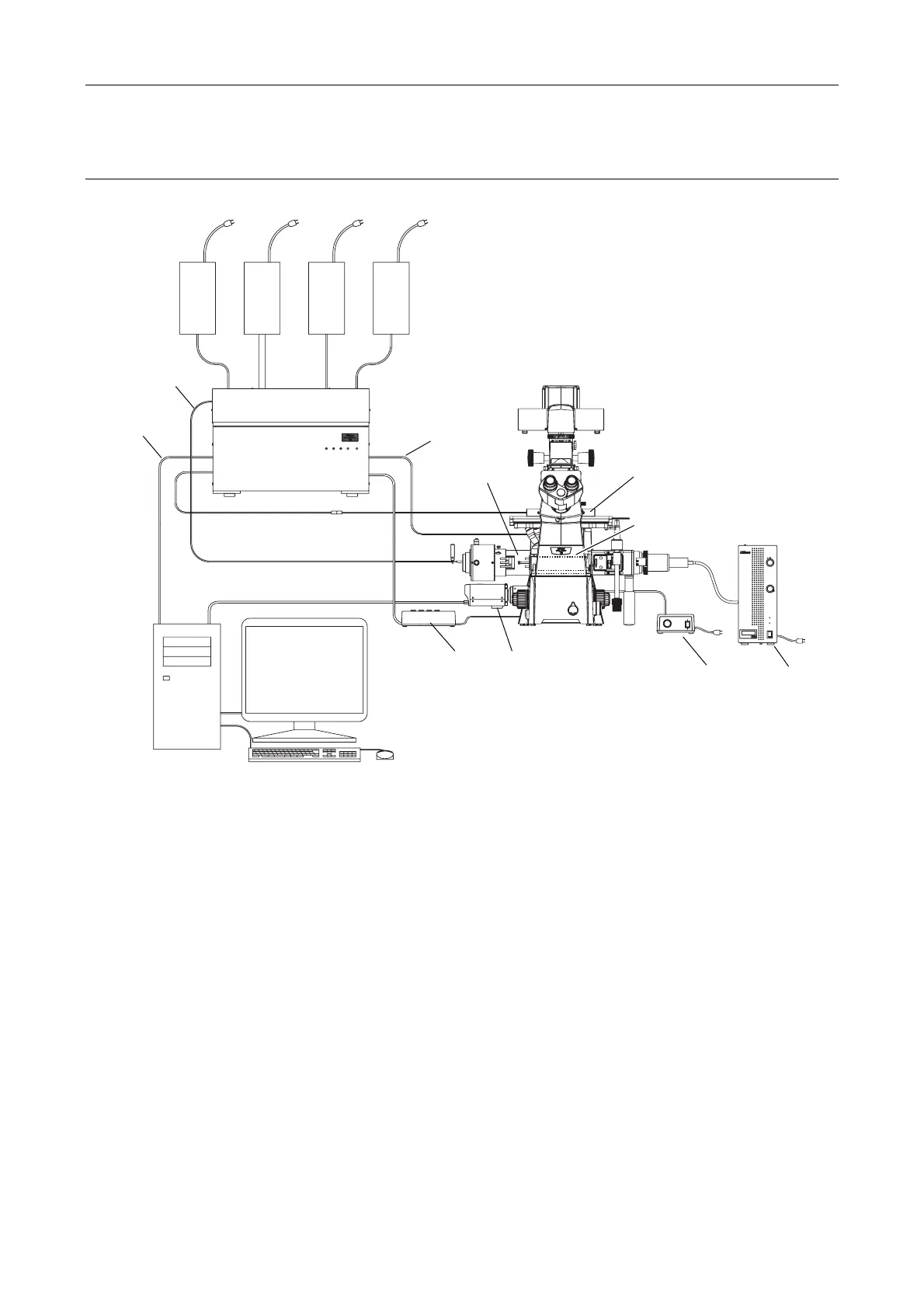

TIRF illuminator unit and Ti-U system overview (front view):
When used with four-laser module A
(Standard configuration to use the TIRF illuminator unit)
L4
L3
L2
L1
POWER
CAUTION
–
CLASS 3B
LASER RADIATION WHEN OPEN
AVOID EXPOSURE TO THE BEAM
Figure 1.1-3
* For details, see Section 8.1, “Overall Configuration,” in Chapter 8, “Specifications and Performance.”
(1) Power supply devices for the laser devices
(2) Laser unit (LU4A)
(3) PC
(4) Optical fiber
(5) TI-LU4SU shutter unit LU4
(6) TV camera (video camera)
(7) TI-FLC epi-fl filter turret
(8) Power supply device for the diascopic illumination
(9) TIRF illuminator unit
(10) HG fiber light source
(11) Laser safety cover
(12) Interlock cable
(13) USB cable
(1)
(5)
(9) (11)
(3)
(2)
(13)
(6)
(8) (10)
(7)
12
(4)
