Chapter 1 System Configurations and Part Names
1.1 Overview
1-11

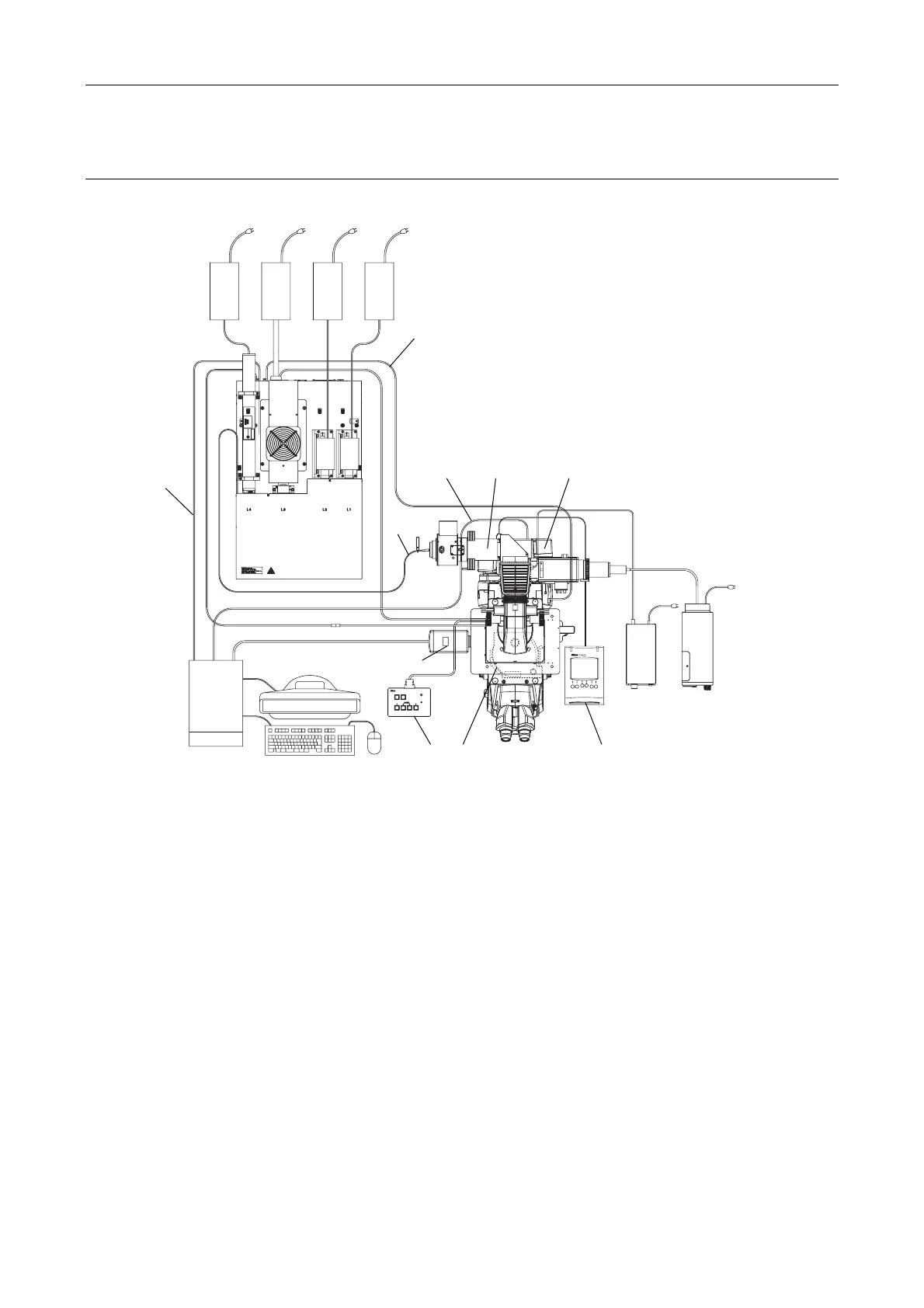

Motorized TIRF illuminator unit and Ti-E system overview (top view):
When used in combination with four-laser module A
(Standard configuration to use the motorized TIRF illuminator unit)
POWER
TI-LU4SU
EMISSION
LASER
CAUTION
–
CLASS 3B
LASER RADIATION WHEN OPEN
AVOID EXPOSURE TO THE BEAM
CAUTION
–
CLASS 3B
LASER RADIATION WHEN OPEN
AVOID EXPOSURE TO THE BEAM
Figure 1.1-8
* For details, see Section 8.1, “Overall Configuration,” in Chapter 8, “Specifications and Performance.”
(1) Power supply devices for the laser devices
(2) Laser unit (LU4A)
(3) PC
(4) Optical fiber
(5) TI-LU4SU shutter unit LU4
(6) TV camera (video camera)
(7) TI-FLC-E/HQ motor epi-fl filter turret
(8) Power supply device for the diascopic illumination
(9) Hub controller A (with AC adapter)
(10) Motorized TIRF illuminator unit
(11) HG fiber light source
(12) Remote control pad
(13) Laser safety cover
(14) Interlock cable
(15) USB cable
(1)
(4)
(6)
(7)
(10)
(3)
(2)
(5)
(8)
(11)
9
(12)
(14)
(15)
(15)
