Chapter 5 Laser Unit

5.3 C-LU3EX Three-laser Unit EX

1-129

Installing the dichroic mirror centering tool (for the EX)

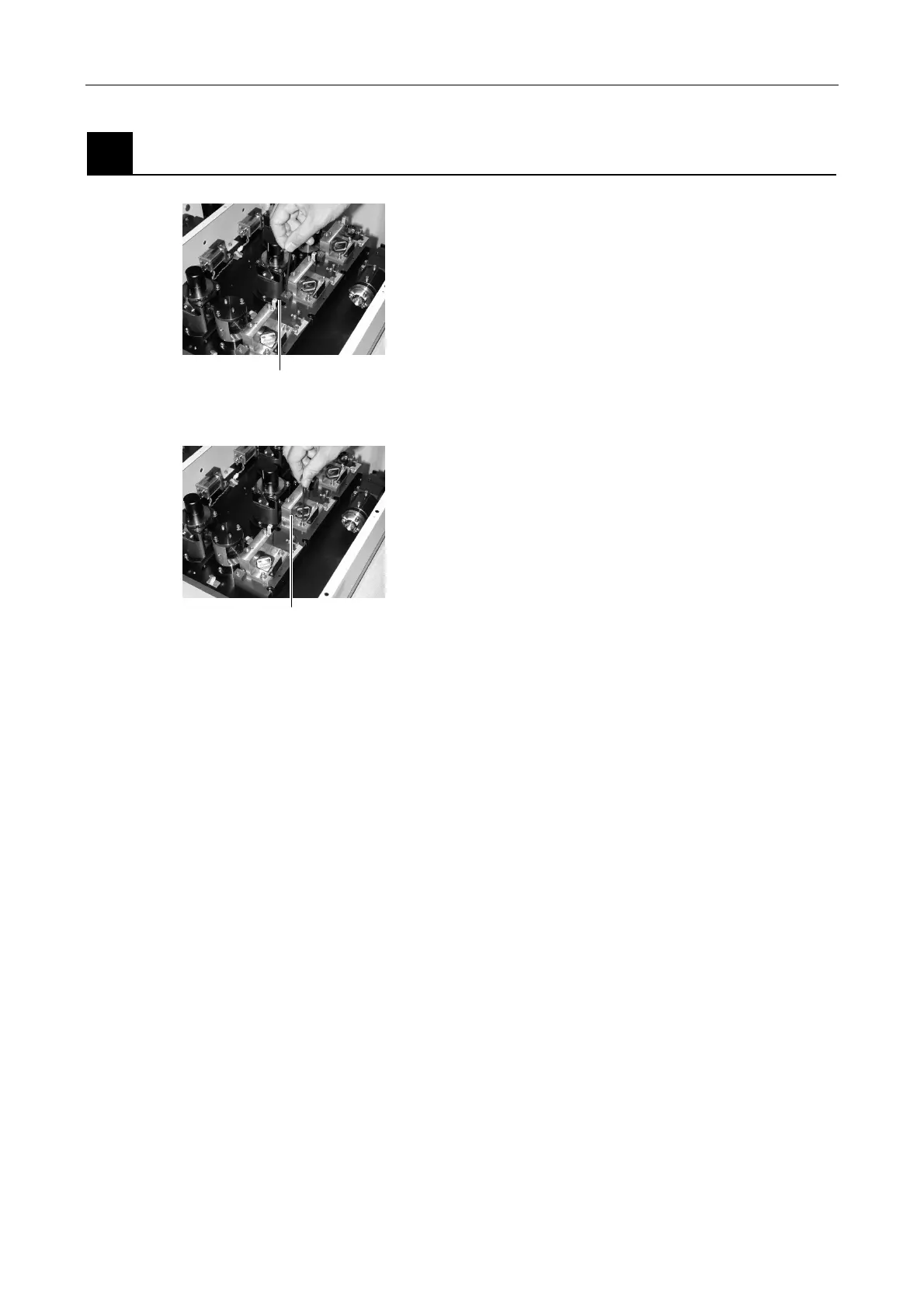

Figure 5.3-18

1. Remove the screw, then remove the three dichroic

mirror adjustment spring units. Take care to keep the

springs from flying off.

Figure 5.3-19

2. Remove the two screws (total 6) on each unit, then

remove the three dichroic mirror adjustment units.

Dichroic mirror adjustment unit

Spring unit
