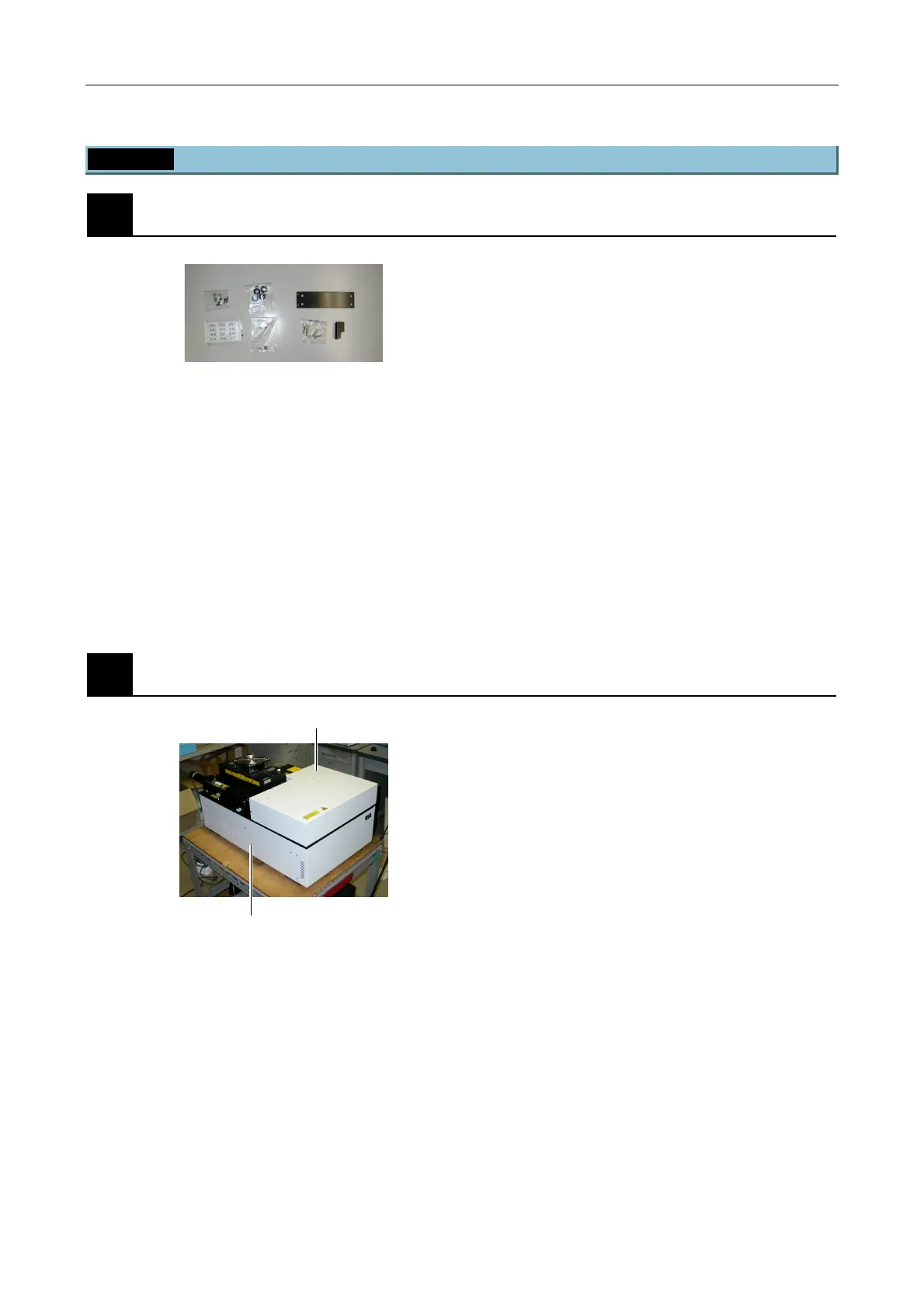

Chapter 5 Laser Unit
5.4 LU4A Four-laser Module A
1-157
5.4.1 Preparation
1
Checking accessories
Figure 5.4-2
Check the accessories (shown in Figure 5.4-2)
supplied with the LU4A four-laser module A.
• 561 laser adapter
• 561 laser adapter cover
• 561 Laser setscrew (x4)
• Black hexagonal bolt (x4)
• Black ring (x4)
• Harness band (x6)
• Laser wavelength label (x1)
For connection to the PC and the laser safety cover
(only for the TIRF system), use the following
connection cables supplied with the TI-LU4SU
shutter unit LU4.
• USB cable
• Cable for the laser safety cover
In addition, an A1-TII cable is required for the
connection to the interlock connector of the
microscope Ti.
2
Detaching the fixing blocks
Figure 5.4-3
1. Unscrew the screws on both side plates of the
four-laser module A. (There are 12 screws to be
unscrewed. Six on the right side and six on the left
side.) And then, detach two side plates.
2. Loosen the screws on the sheet metal cover on the
front part and detach the sheet metal cover.
Sheet metal cover
Side plate
To Next Page
