Chapter 5 Laser Unit
5.4 LU4A Four-laser Module A
1-159
3
Wiring
Connect the USB cable supplied with the TI-LU4SU shutter unit between the four-laser module A and
the PC.
4

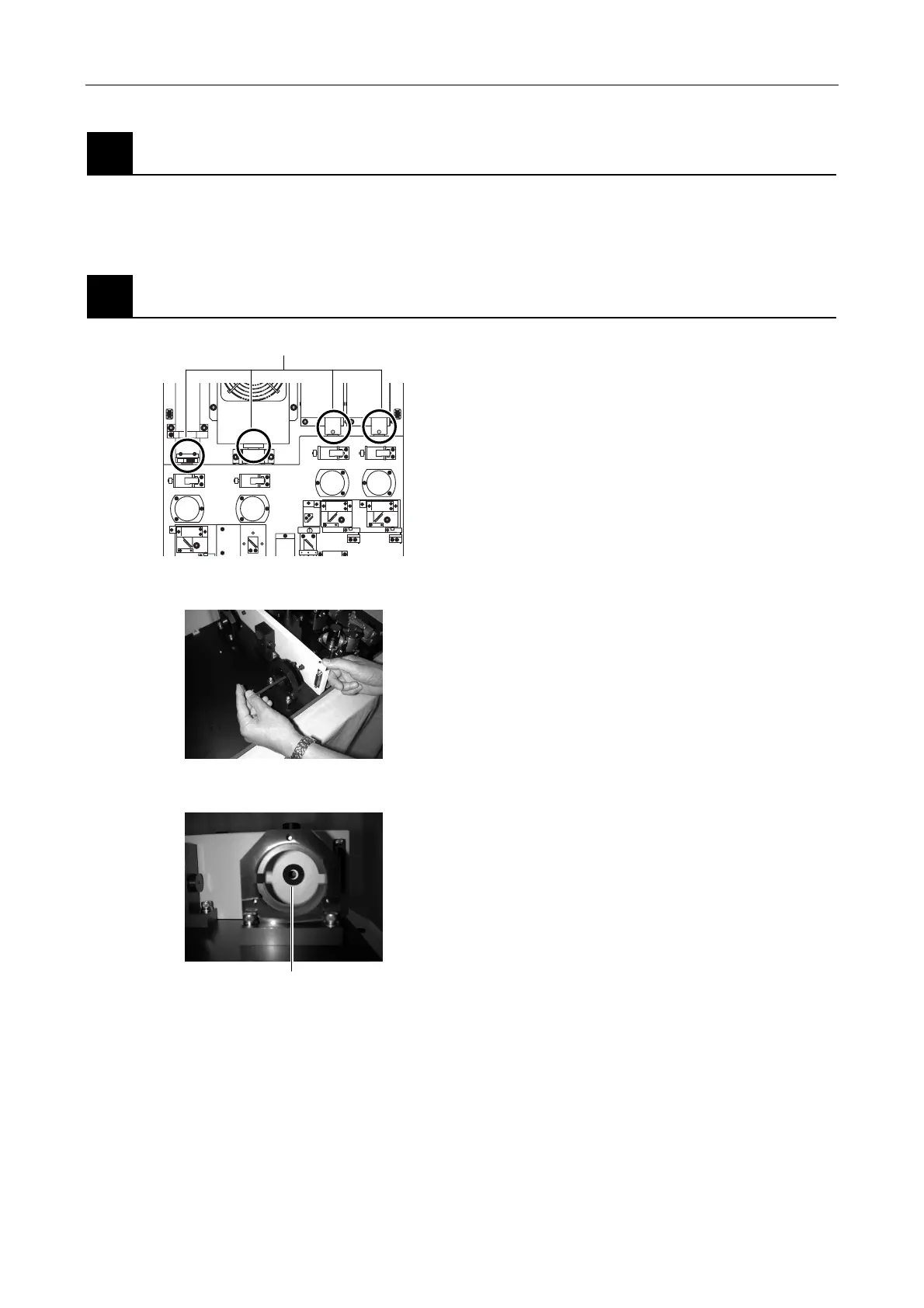

Attaching the provided black rings
Figure 5.4-9
Figure 5.4-10
1. Remove the bolts and nuts at four locations of the
laser inlets. Be careful not to drop the bolts and nuts.
(Hold the bolts and nuts with fingers to prevent them
from falling.)
Figure 5.4-11
2. Affix the black rings (sponges) to the openings. The
center of the ring must be aligned with the center of
the opening.
4 locations
Black ring
To Next Page
