Chapter 5 Laser Unit
5.4 LU4A Four-laser Module A
1-172
Table 5.4-2 Laser wavelengths available with the AOTF driver remote controller
On the screen Wavelength Laser
L1 457 nm
L2 477 nm
L3 488 nm
L4 514 nm
Ar laser
L5 543 nm Green HeNe laser
L6 561 nm 561-nm solid-state laser
L7
*
1
405/440 nm 405/440LD
638 nm 638LD
L8
*
1
Setting is necessary 647-nm laser
*1: For LU4A only
3

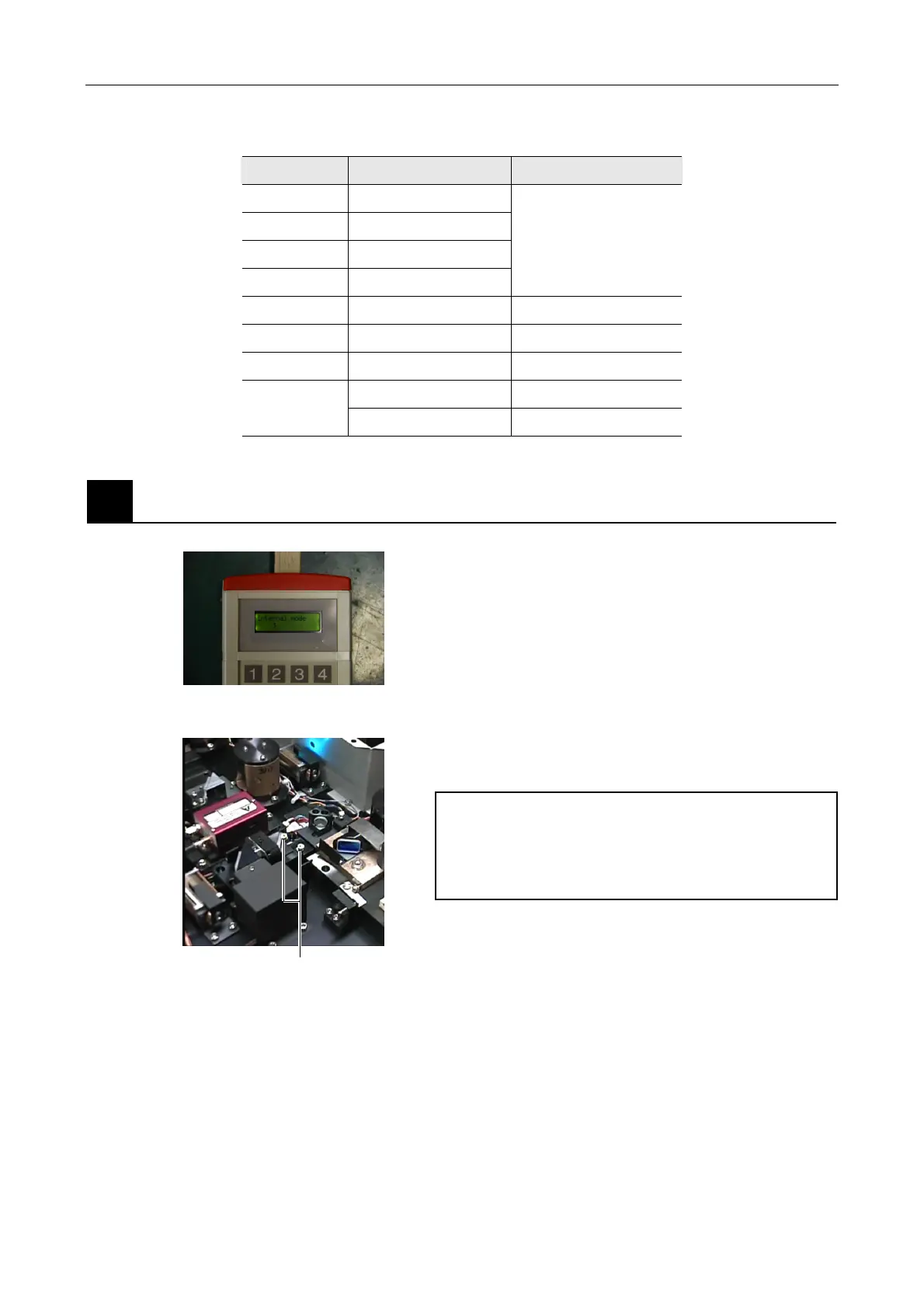

Adjusting the Ar laser position
Figure 5.4-42
In the LU4A four-laser module A, the coupled laser
light does not pass through the AOTF before the
laser coupling mirror part. The AOTF is located
beyond the laser coupling mirror part where the four
laser lights are coupled.
1. Select the line three (L3) with the AOTF remote
controller to use the 488-nm Ar laser.
2. Unscrew the two hexagonal bolts at the laser
coupling mirror part and detach the laser coupling
mirror part.
Precautions
At the detachment of the laser coupling mirror
part, the collimation pin may come with the laser
coupling mirror part. Be careful to prevent the
pin from getting lost.
Figure 5.4-43
Hexagonal bolts
To Next Page
