Chapter 5 Laser Unit
5.5 Setting Up the LU-LR Four-laser PS Rack
1-208
Mounting Ar laser (IMA series)
1. Turn on the key switch and the power switch of the Ar laser power supply. Additionally,
move the POWER ADJUST control of the Ar laser power supply fully clockwise.
2. Secure the Ar laser power supply in the positions [1] with the provided clamps [1].
3. Connect the power cable [3] (IMA Ar Laser) and the RC cable for the Ar laser [5] (IMA
REMOTE CONT) to the Ar laser power supply.
4. Connect the cable (to be connected to the Ar laser head) to the Ar laser power supply
through the cable port on the rear side.

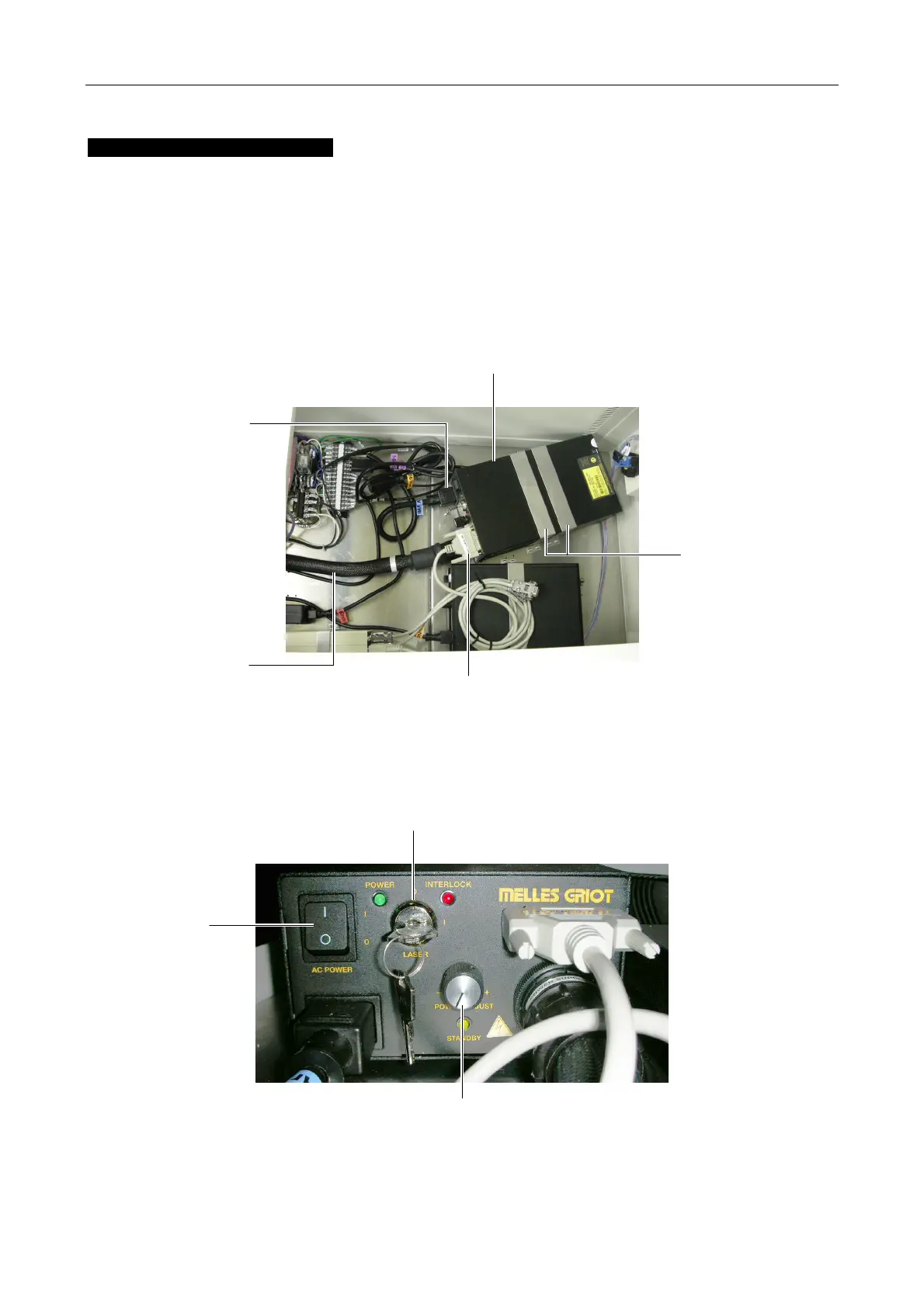

Figure 5.5-19
Figure 5.5-20
Ar laser power supply
RC cable for the Ar laser
（IMA REMOTE CONT）
Clamps
To the Ar laser head
Power cable
(IMA Ar Laser)
Key switch
[POWER ADJUST] volume
Power switch
