Nikon Eclipse TI-TIRF-E User Manual

Chapter 6 Connection between the Laser Unit and the Microscope
6.2 Attaching the Optical Fiber to the Light Source
1-223
Using C1 single mode fiber
Draw the optical fiber through the round ring metal cover and attach the optical fiber to the FC connector.
When inserting the cable, be sure to align it with the FC connector's notch, and then fully screw in the
knurled section. After attaching the fiber, tighten the clamp screw to secure the round ring metal cover.
IN IN
ND8
IN
ND2
ND16
CAUTION
–
CLASS 3B
LASER RADIATION WHEN OPEN AVOID EXPOSURE TO THE BEAM VORSICHT
–
LASERSTRAHLUNG
KLASSE 3B, WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETZEN

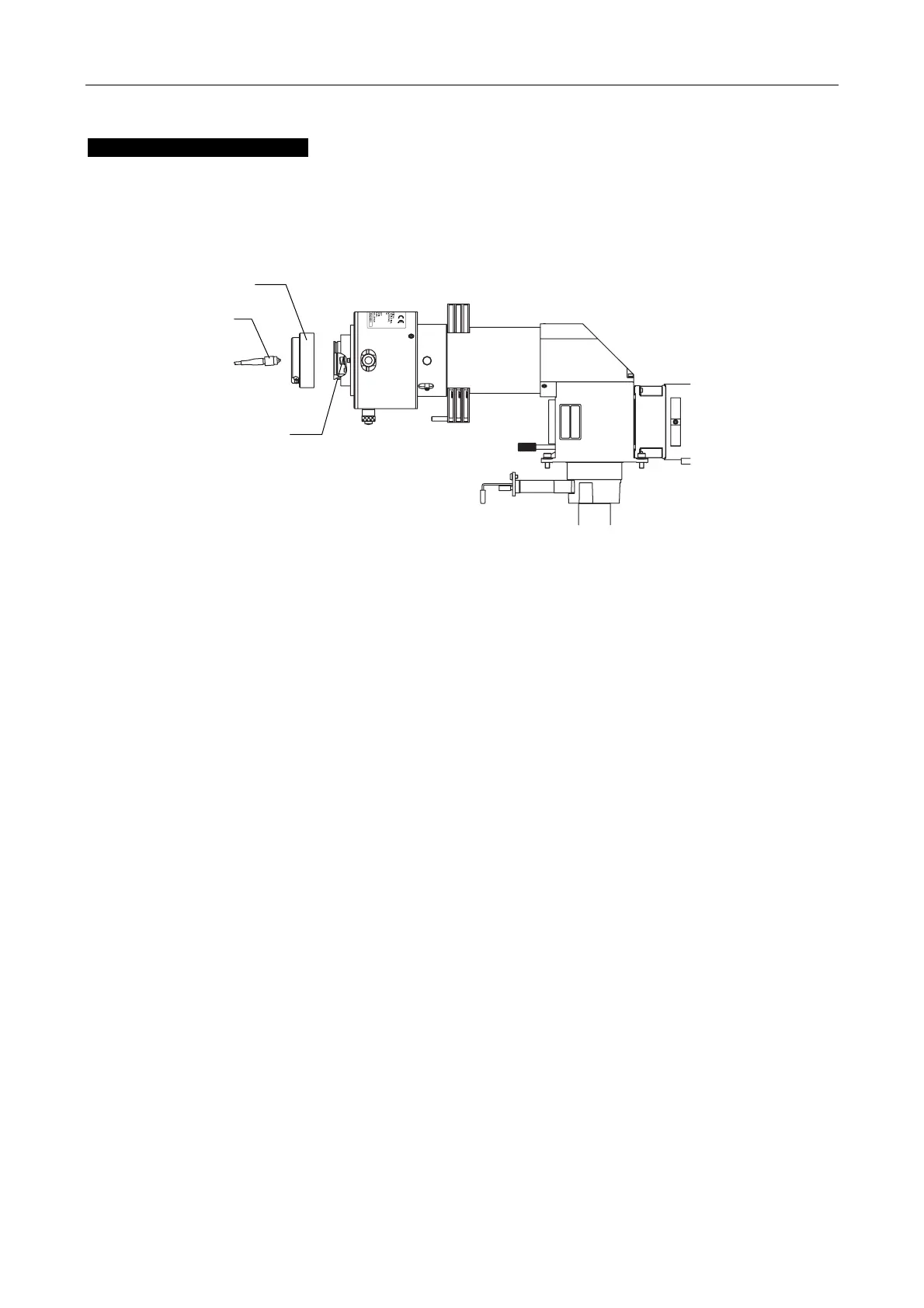

Figure 6.2-2
(The figure shows TI-TIRF.)
Fibe
r
Round ring metal cove
r
FC connecto
r
