Chapter 6 Connection between the Laser Unit and the Microscope

6.1 Setting and Connecting the TI-LU4SU Shutter Unit LU4

2-58

Affixing the switch label

If the LU4-B5 beamsplitter 50/50 is attached to the four-laser module A, affix the TIRF-PAU special label

supplied with the TI-LU4SU shutter unit LU4.

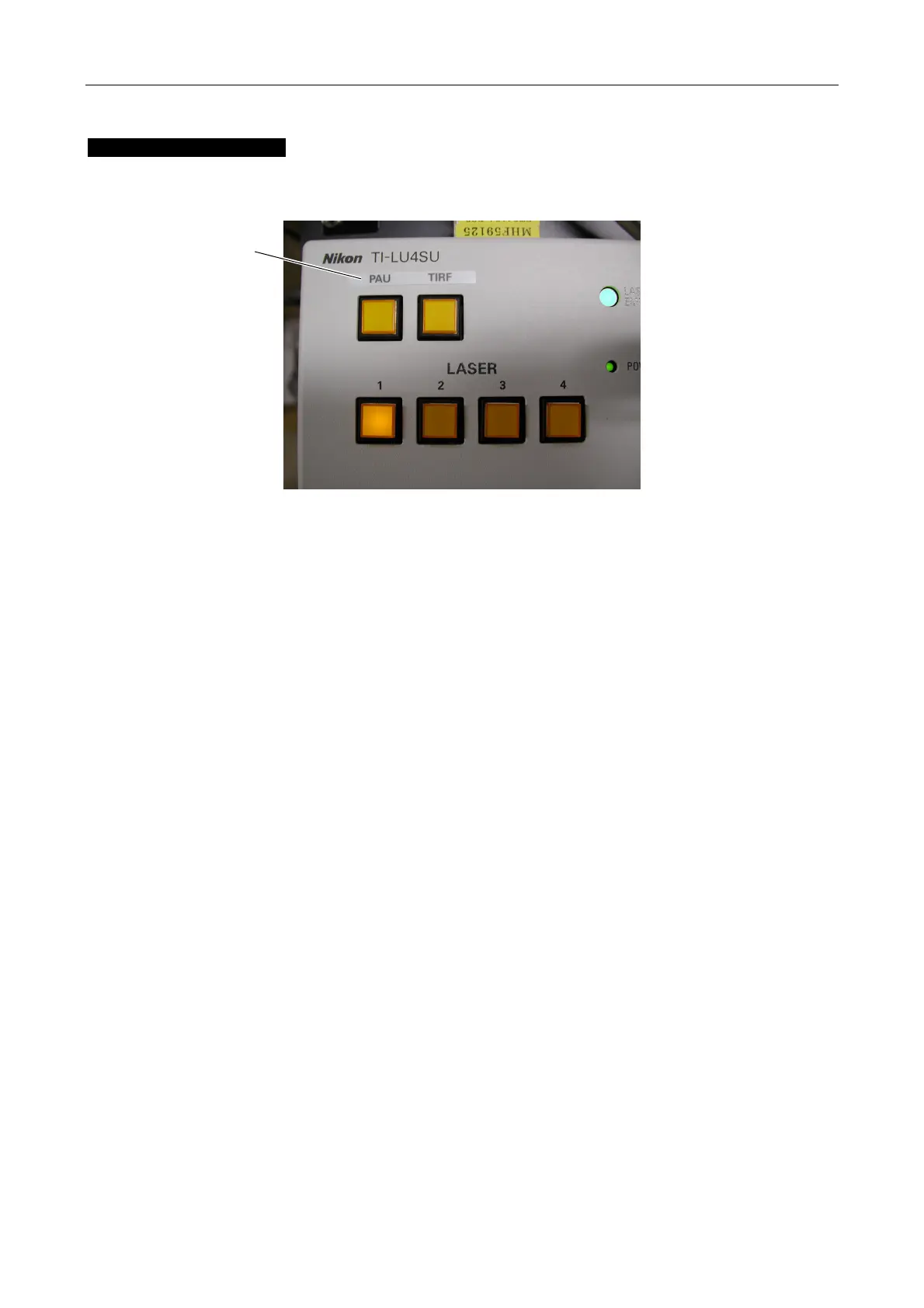

Figure 6.1-3

TIRF-PAU special label
