Chapter 1 System Configurations and Part Names
1.4 Name of Each Part
1-65
TI-BSUK70 70 mm stage up kit
By attaching the TI-BSUK70 70 mm stage up kit and doubly mounting the epi-fl filter turrets, you can attach
any of the TIRF illuminator unit/motorized TIRF illuminator unit/photo activation illuminator unit and TI-BPU
back port unit simultaneously.
The unit that can be attached to the upper or lower tier is selectable in accordance with the intended use.
Important
The condensing position will be misaligned when the TIRF illuminator unit/motorized TIRF illuminator
unit/photo activation illuminator unit is attached to the lower tier.
When attaching to the lower tier, embed the TI-TIRF stage up lens into the TIRF illuminator unit/motorized
TIRF illuminator unit/photo activation illuminator unit to correct the condensing position and provide the
optimum illumination performance.
Contact your own Nikon representative for details on the stage up lens.

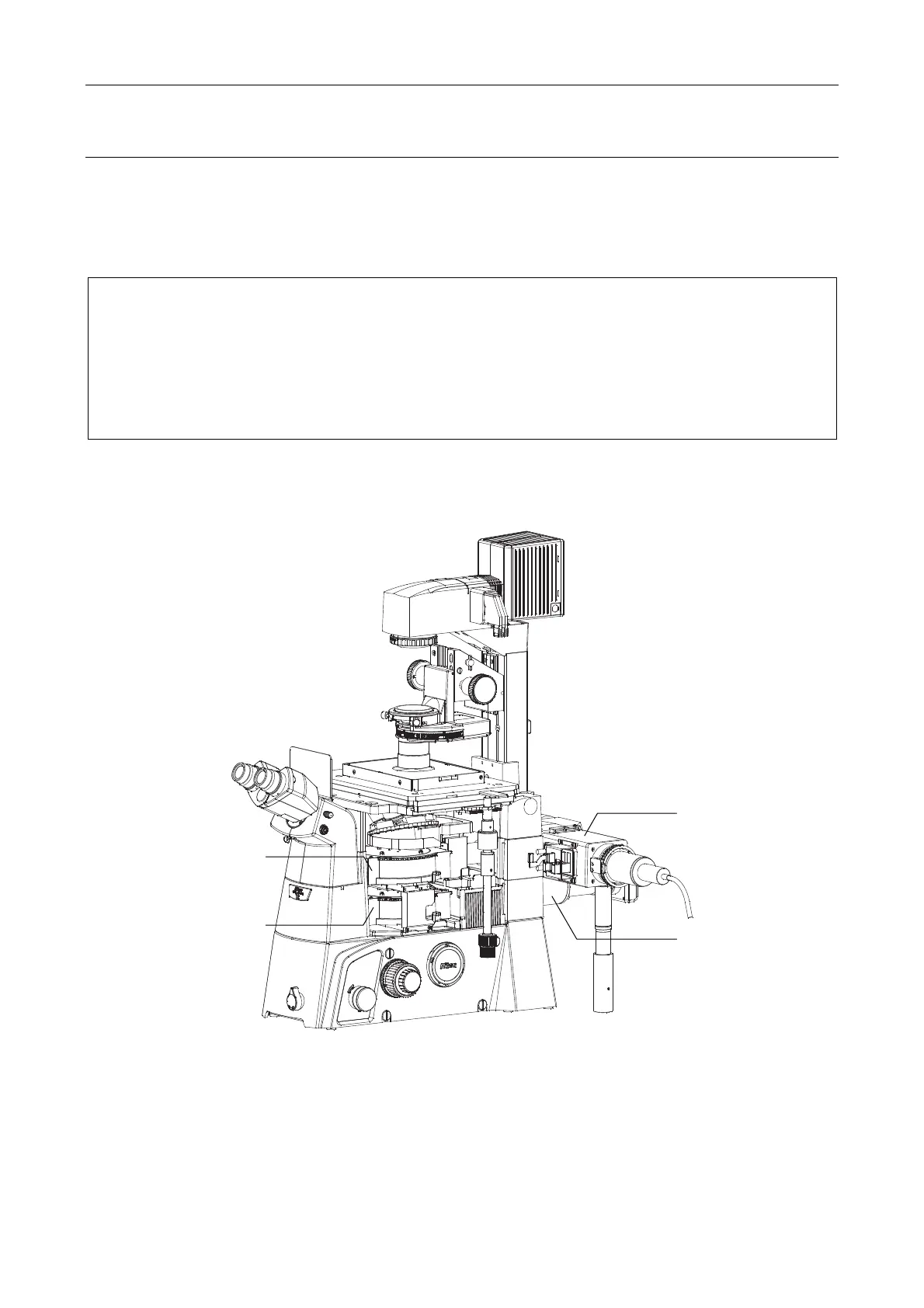

The following figure shows the Ti-U with the stage up kit mounted, along with the TIRF illuminator unit on the
upper tier and the back port unit on the lower tier.
Figure 1.4-52
Epi-fl filter turret (upper tier)
Epi-fl filter turret (lower tier)
TIRF illuminator unit
Back port unit
