04 - Control System 25Service Manual – SC250, Scrubtec 334, MA 30
Main Machine Controller (EB1) (continues)

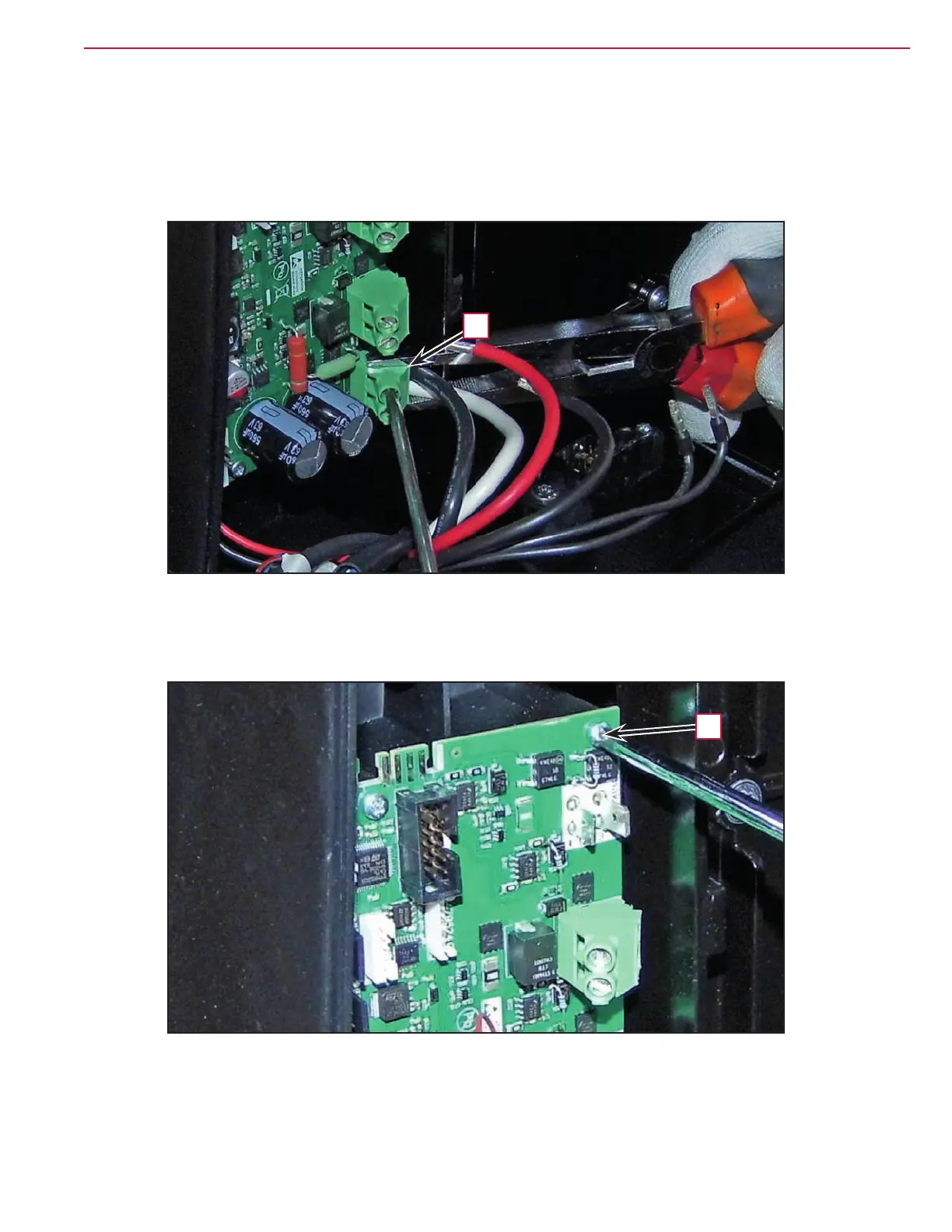

12. Disconnect the power supply connections wiring (K).
- While you unscrew the connection fastening screws, use a pair of pliers to hold the connector on the
controller (when tighten the screw, use a tightening torque to a 0,4 Nm).
Figure 14
K
13. Remove the screws (L), then remove the main machine controller (when mounting, tighten the screws
with a tightening torque to a 0,8 Nm).
Figure 15
L
Installation
14. Assemble the components in the reverse order of disassembly.
To Next Page
