38 - Squeegee System
Functional Description
The squeegee system cleans the liquid off the oor, which is then collected by the recovery system.
The squeegee assembly (A) is attached to the machine body via two quick x brackets tted with springs,
which allow the squeegees to adhere to and apply the correct pressure to the oor, even if it is not perfectly
smooth and level.
Operating the right-hand lever on the handlebar lifts the front squeegee, allowing larger debris to be picked
up. The mechanism also stops vacuuming at the lifted front squeegee (B), with a consequent increase in vacu-
uming at the rear squeegee.

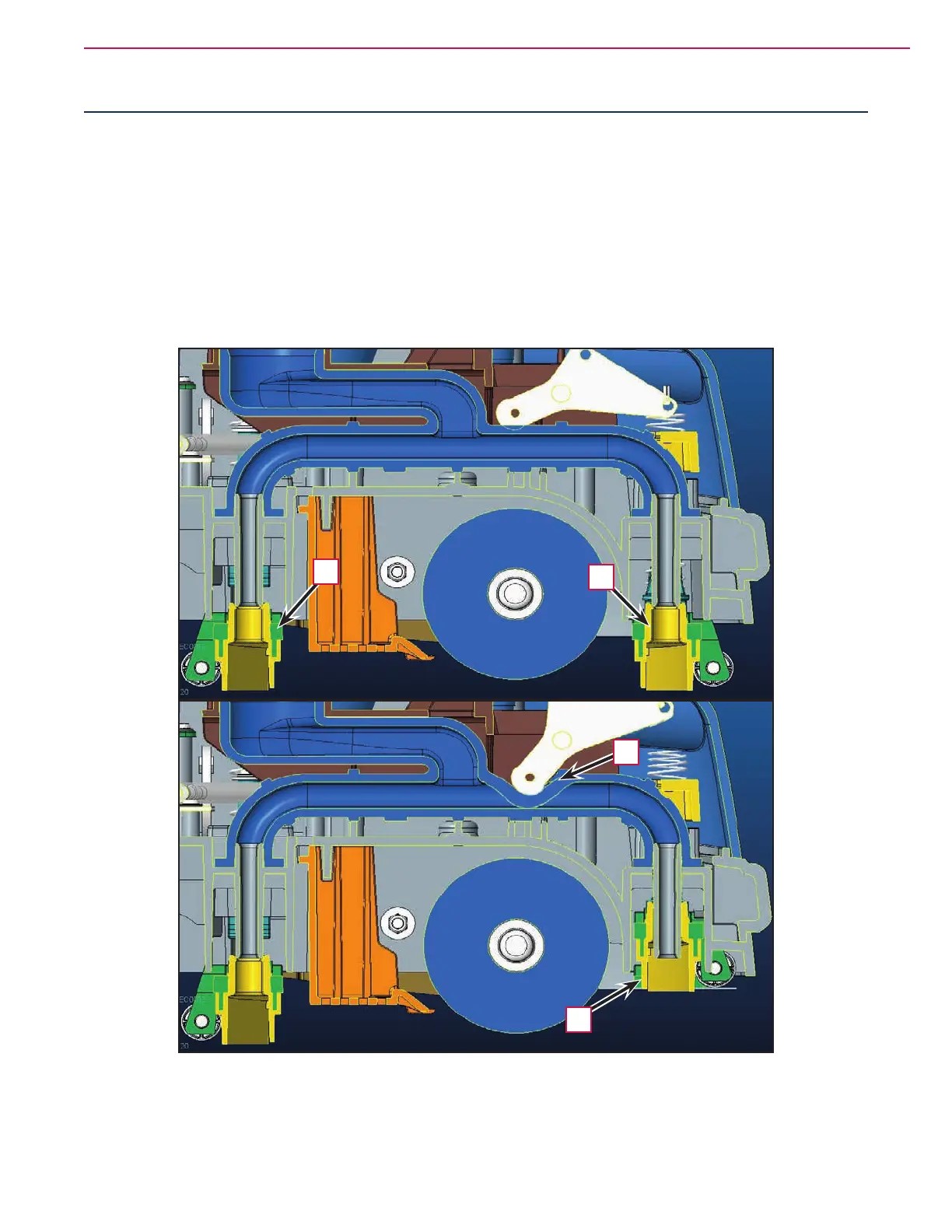

Figura 1
B
B
A
A
